SS-316 Compact Pillow Block Bearing Units

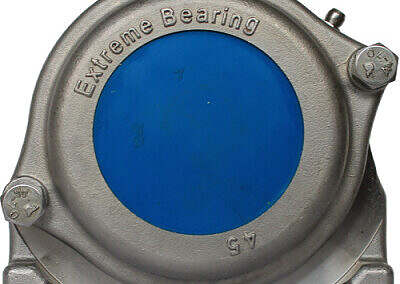

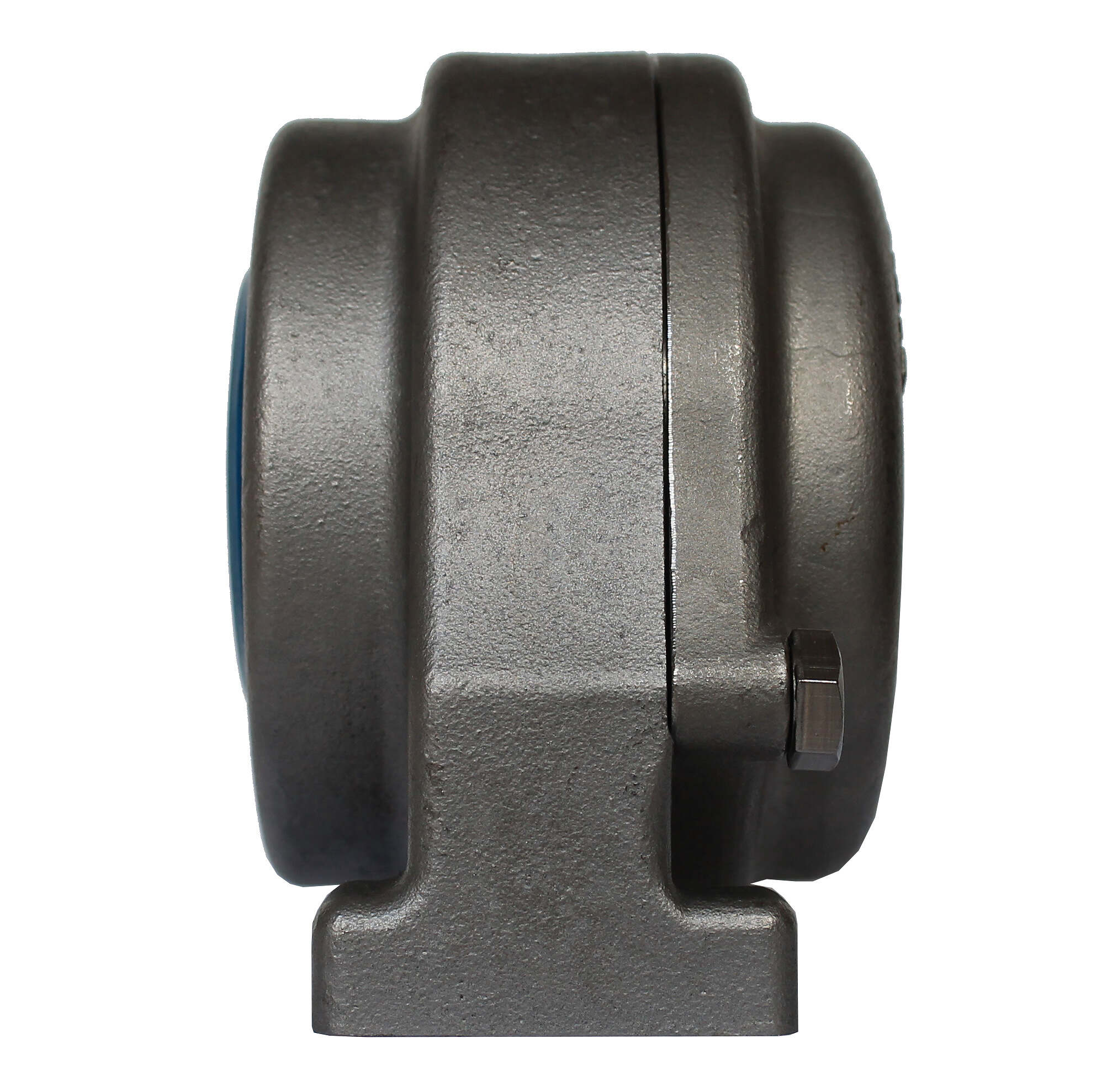

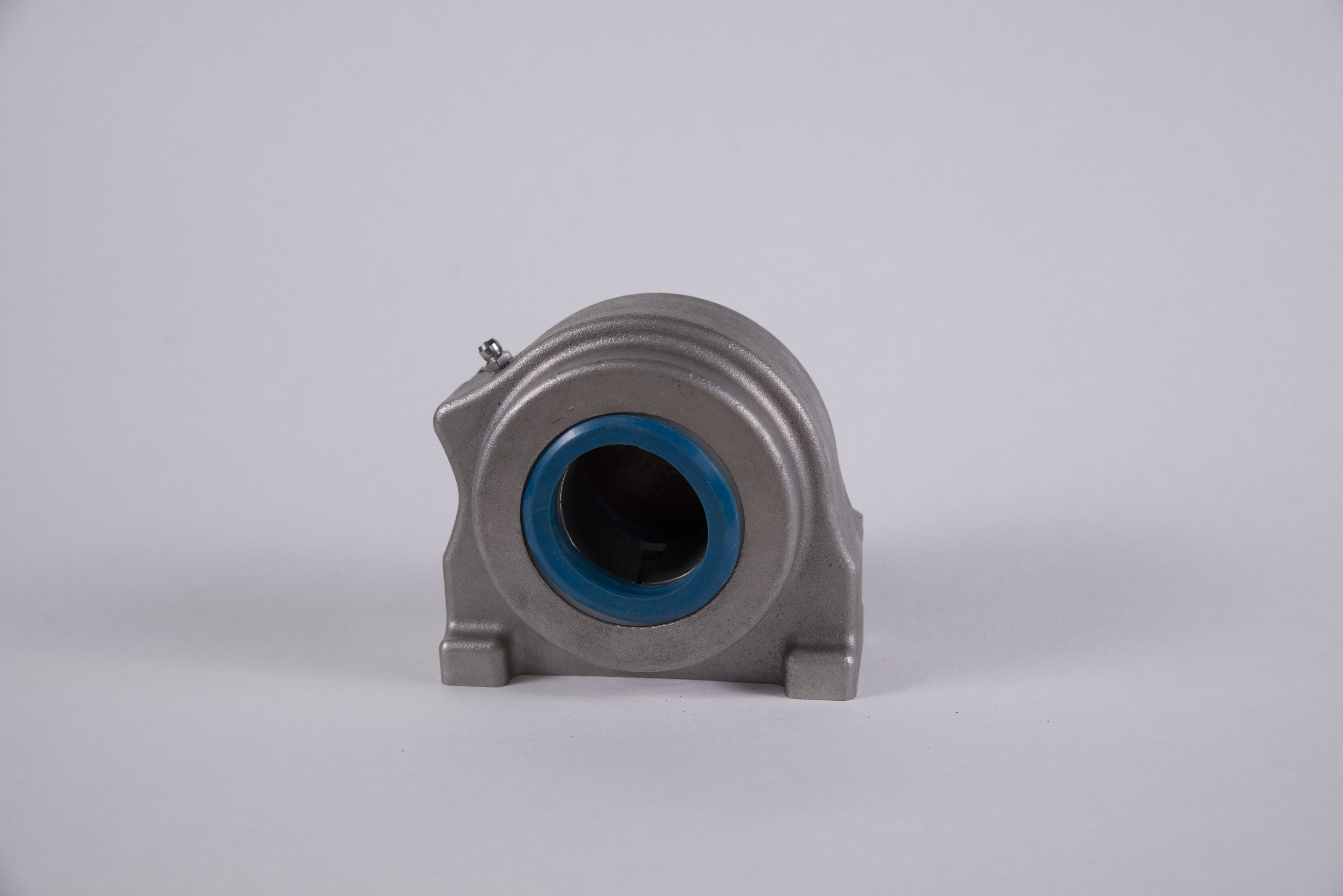

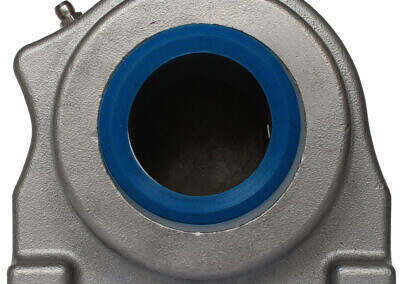

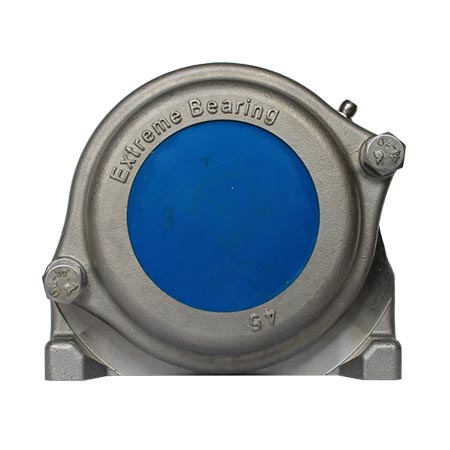

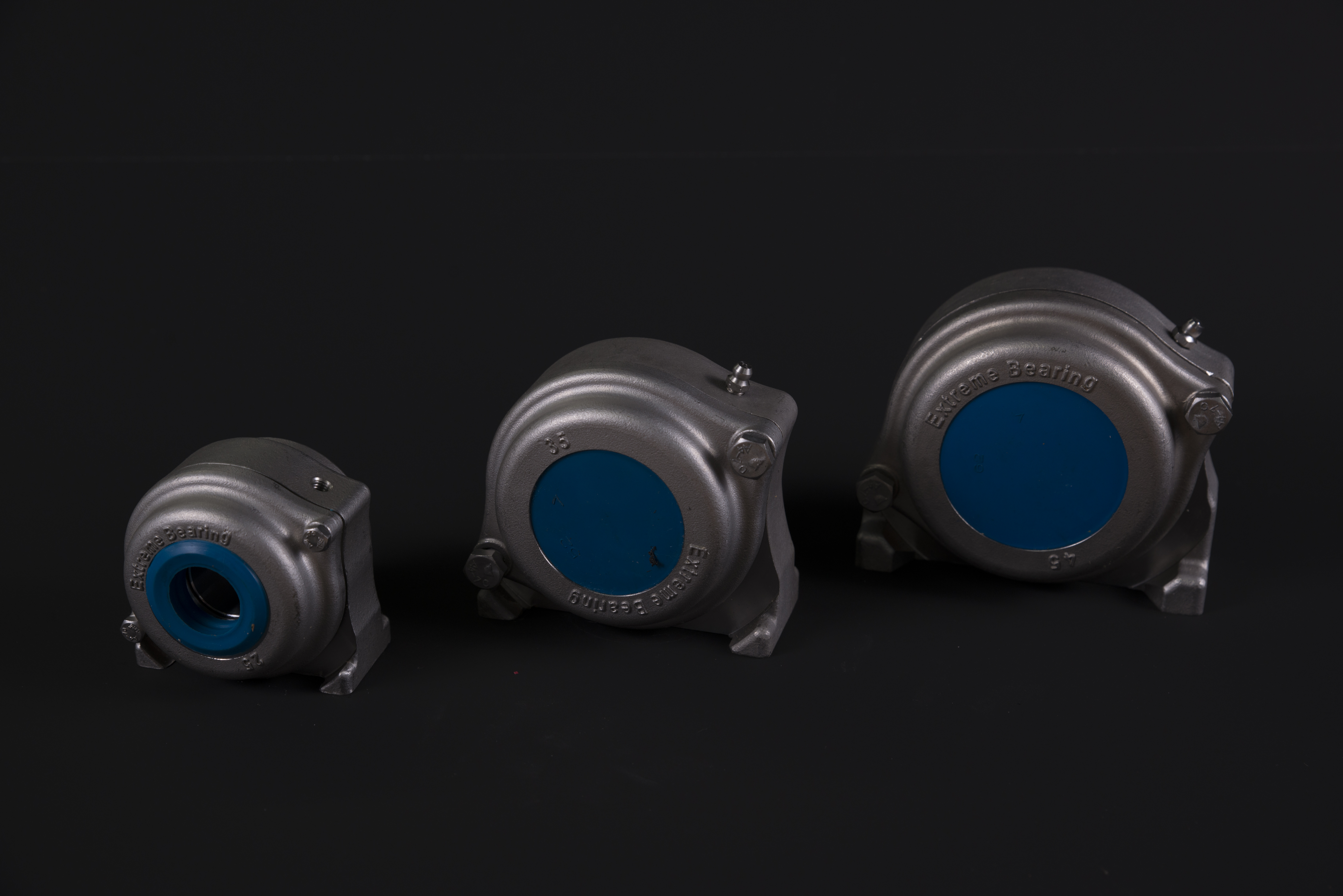

316 stainless steel tapped base pillow block bearing

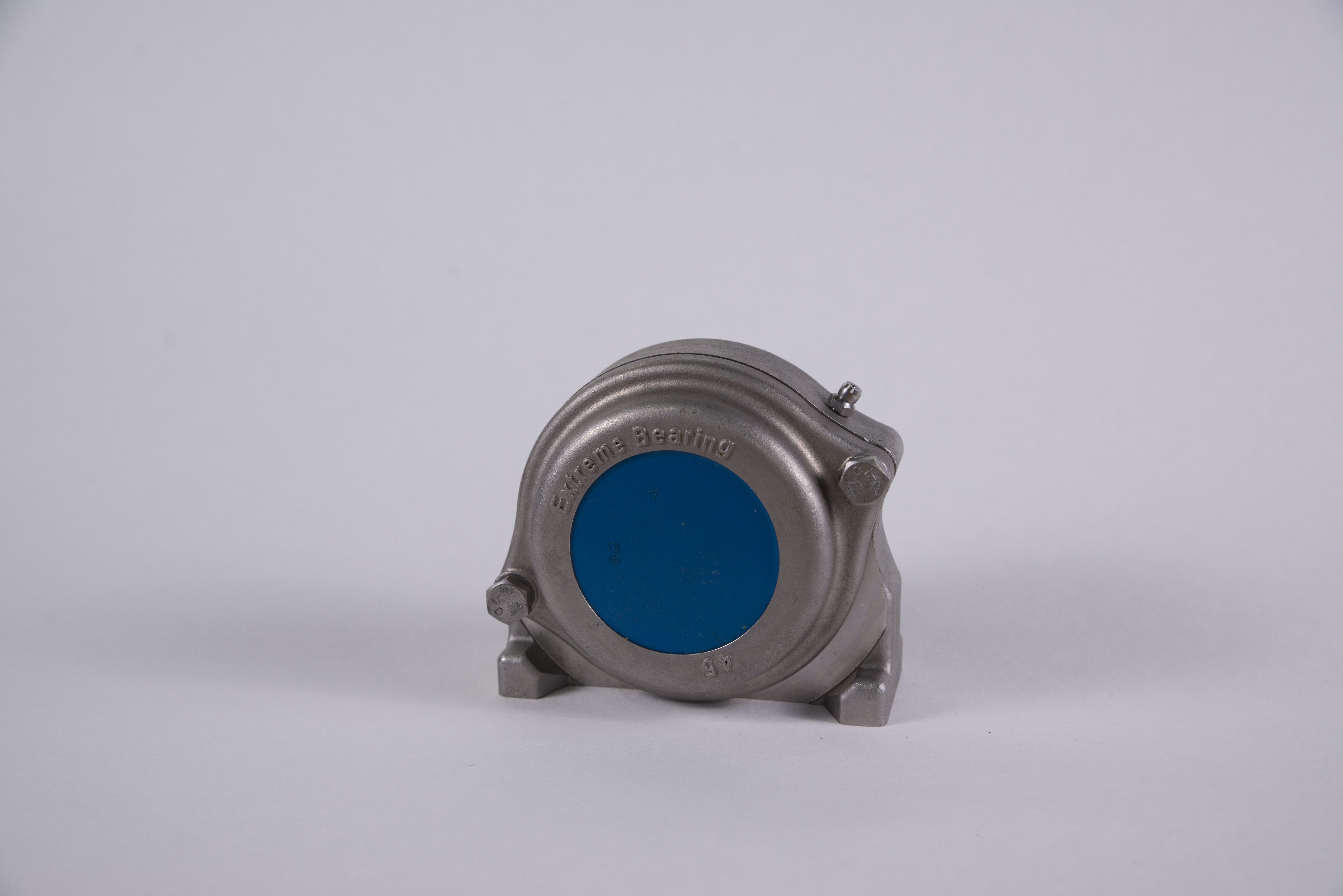

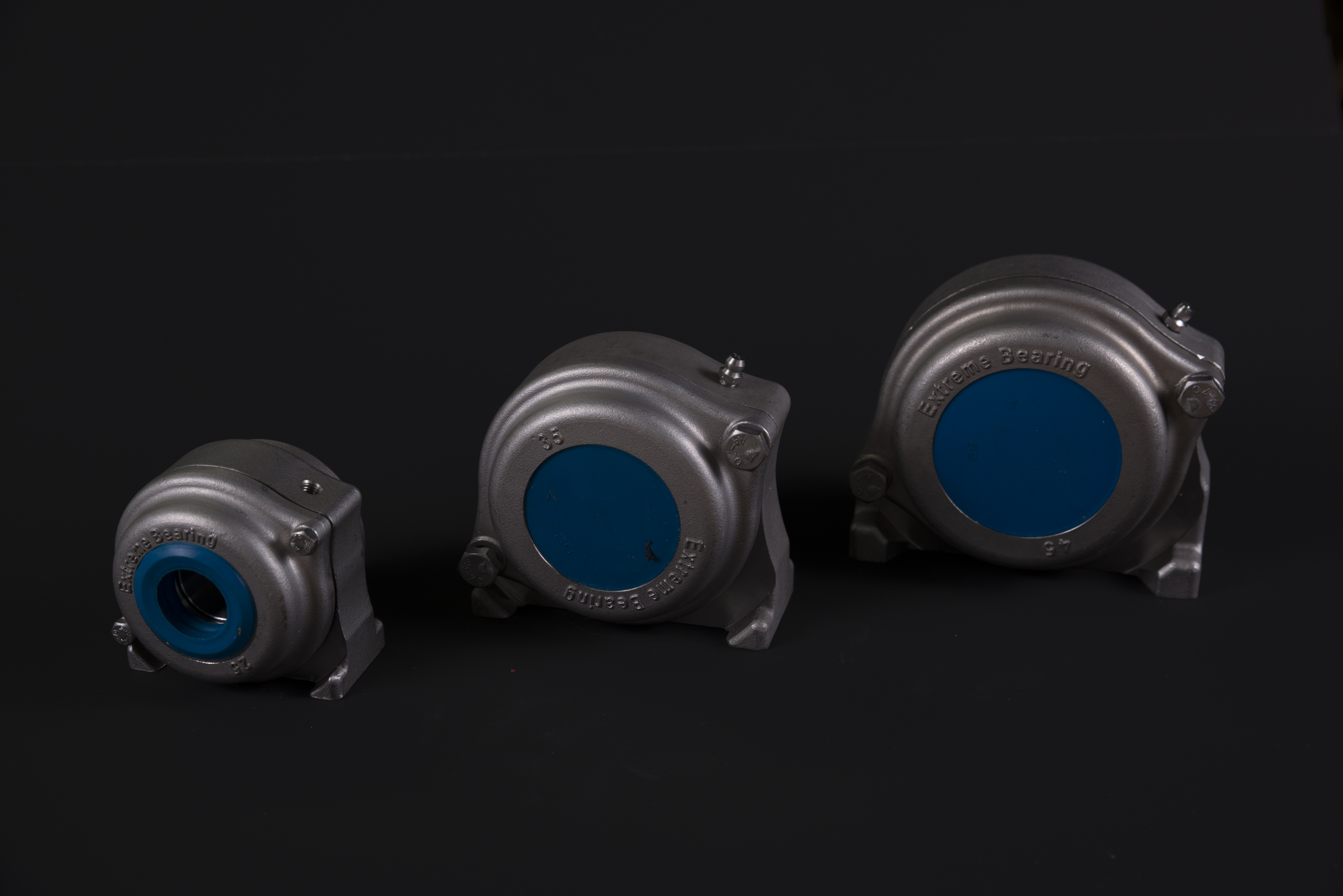

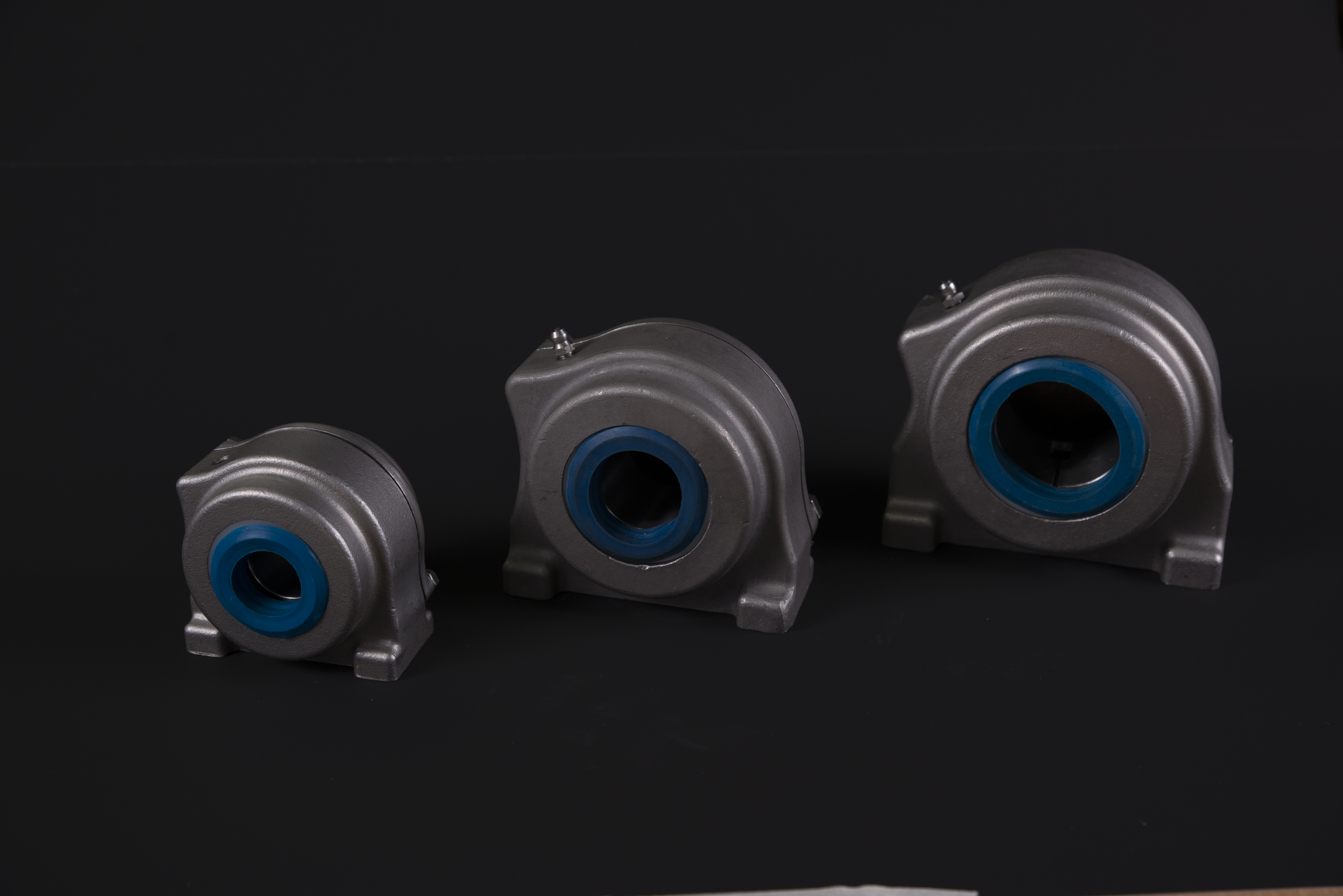

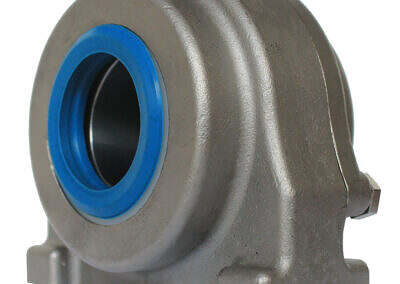

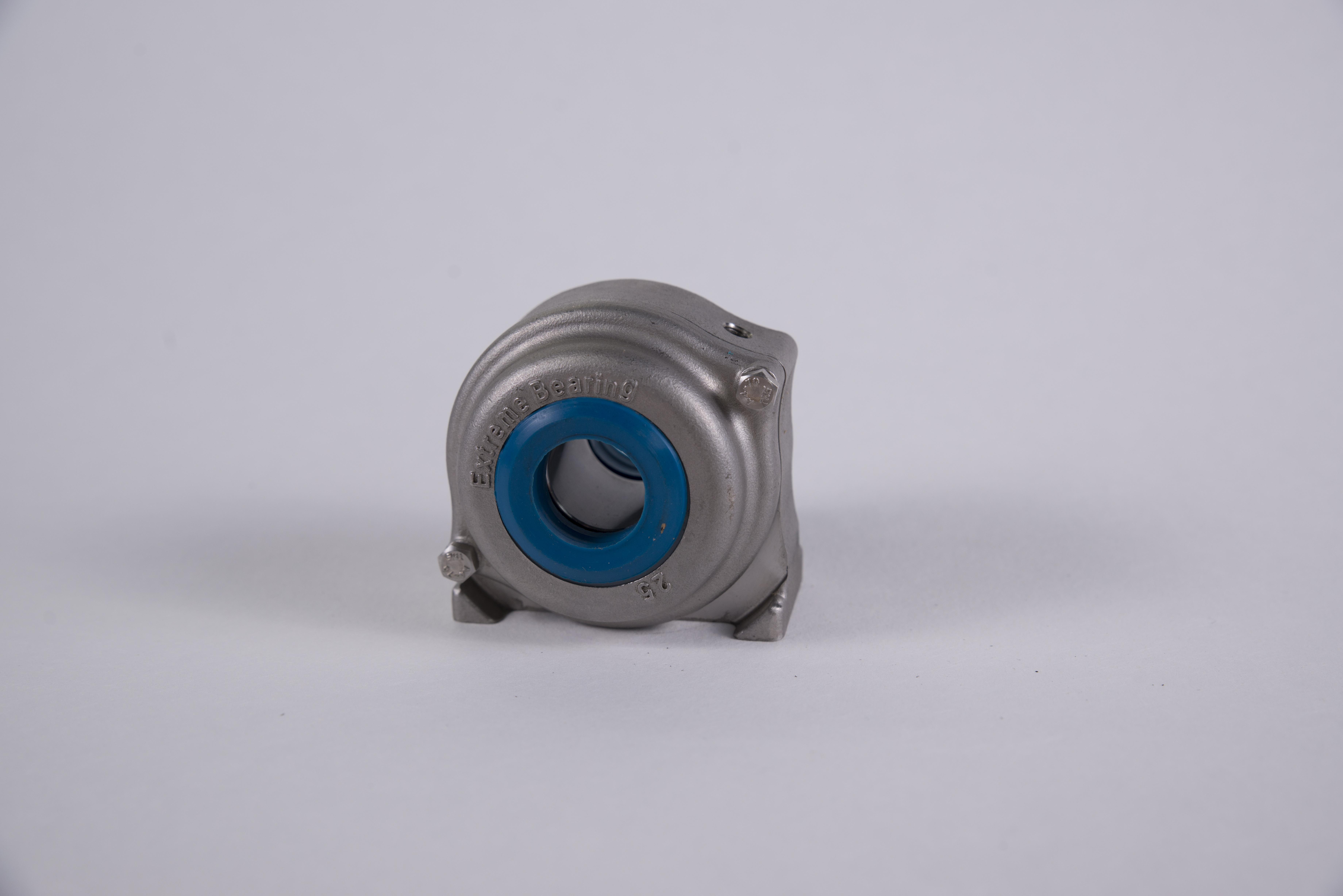

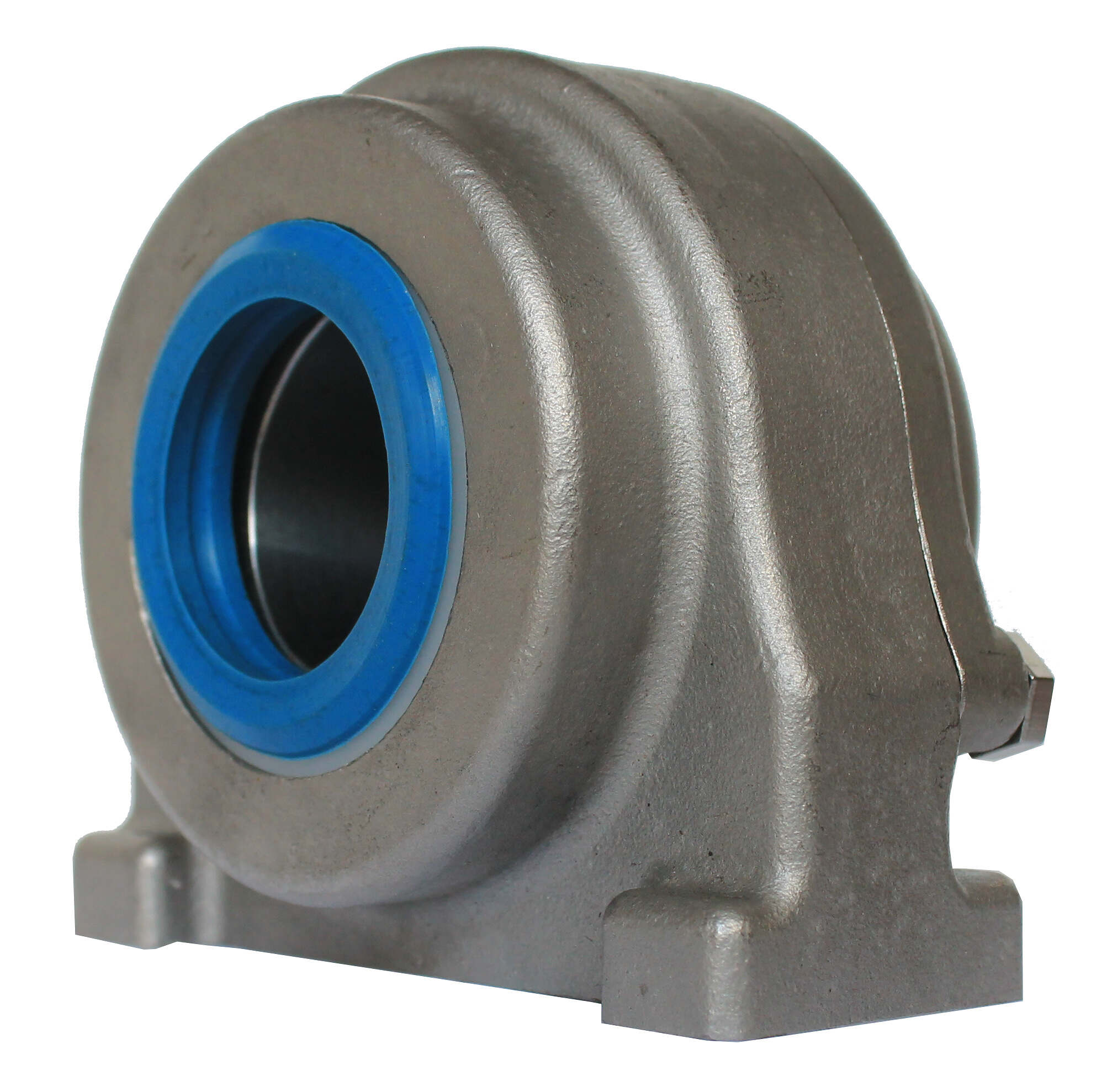

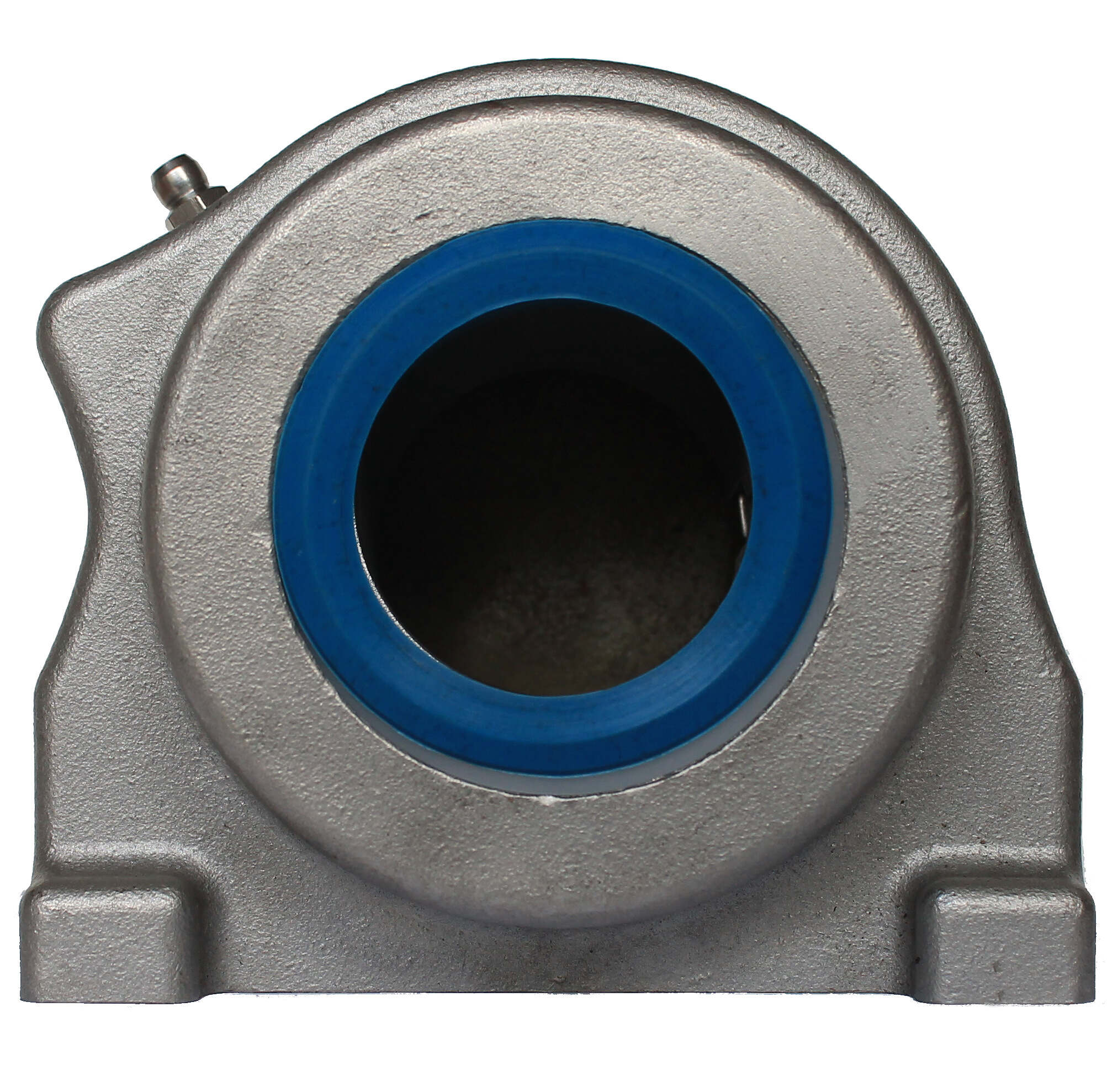

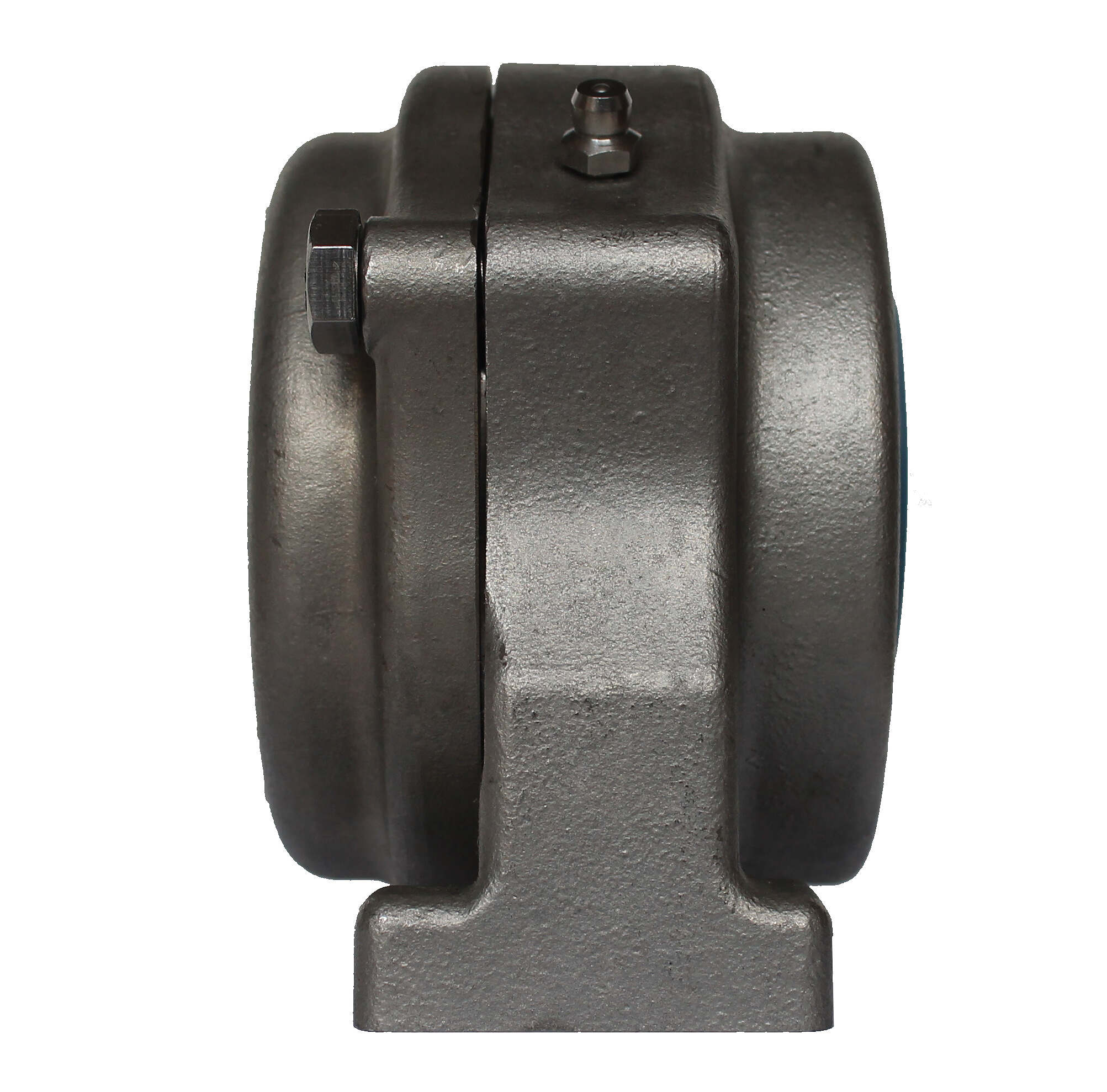

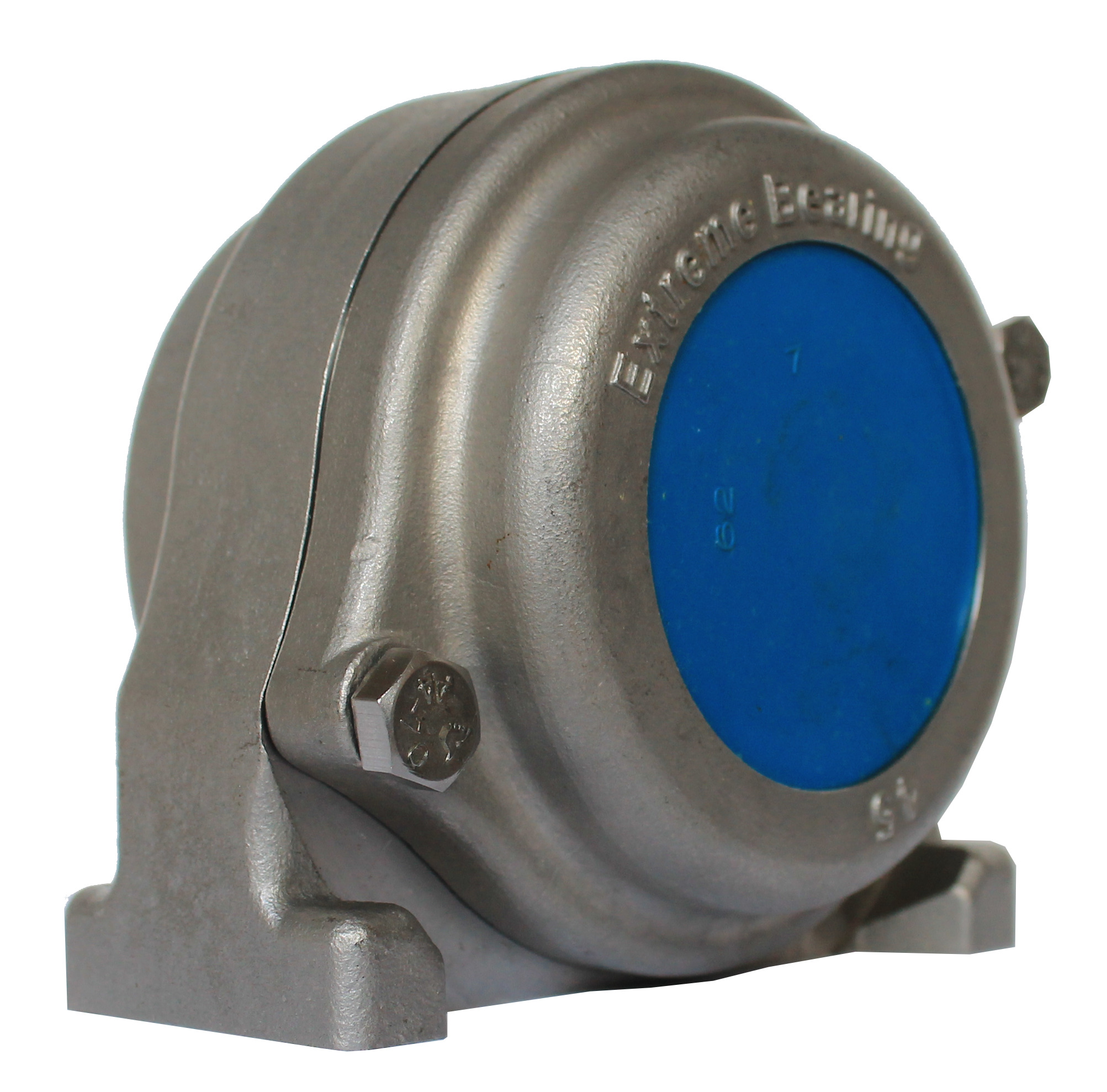

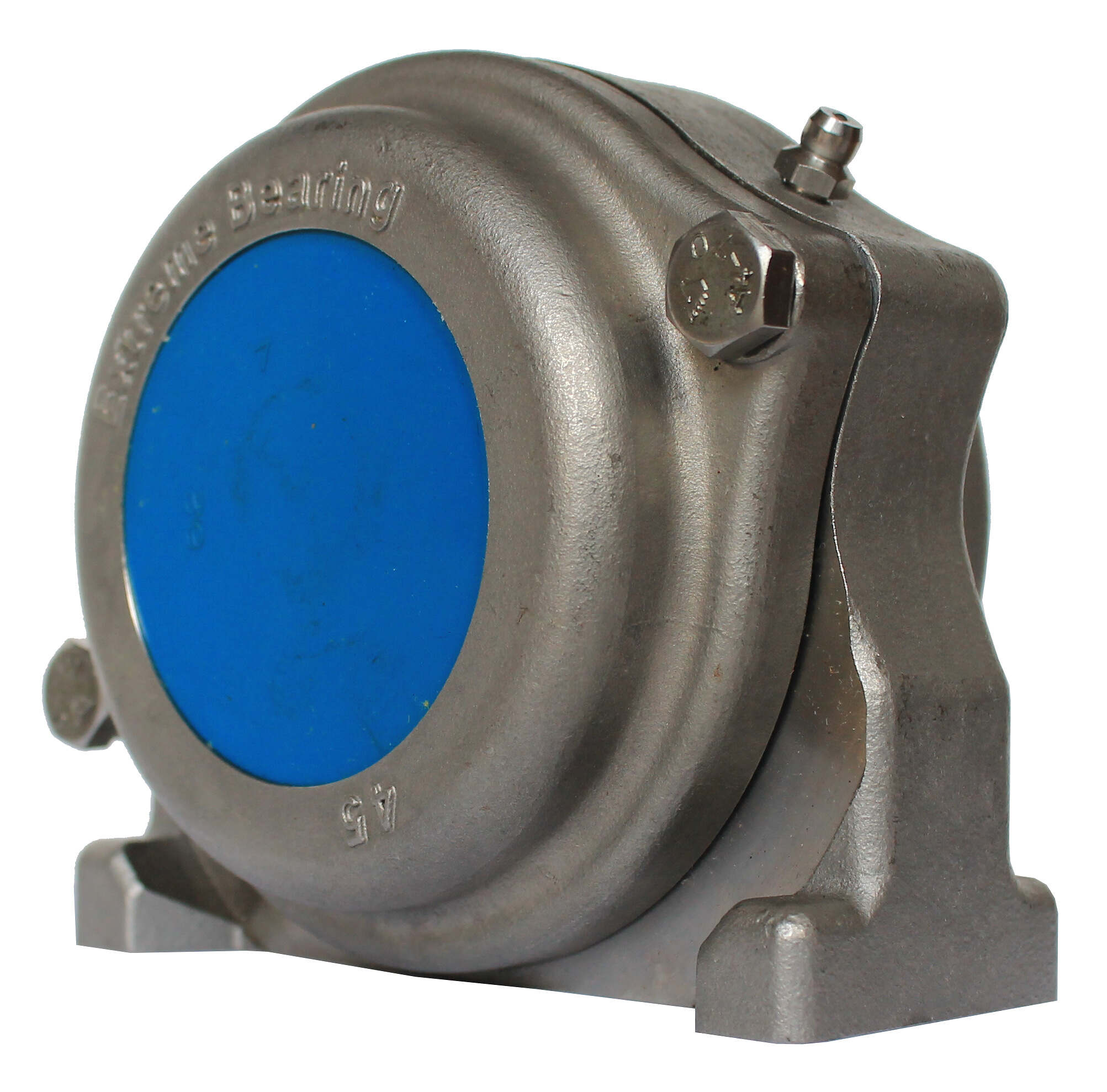

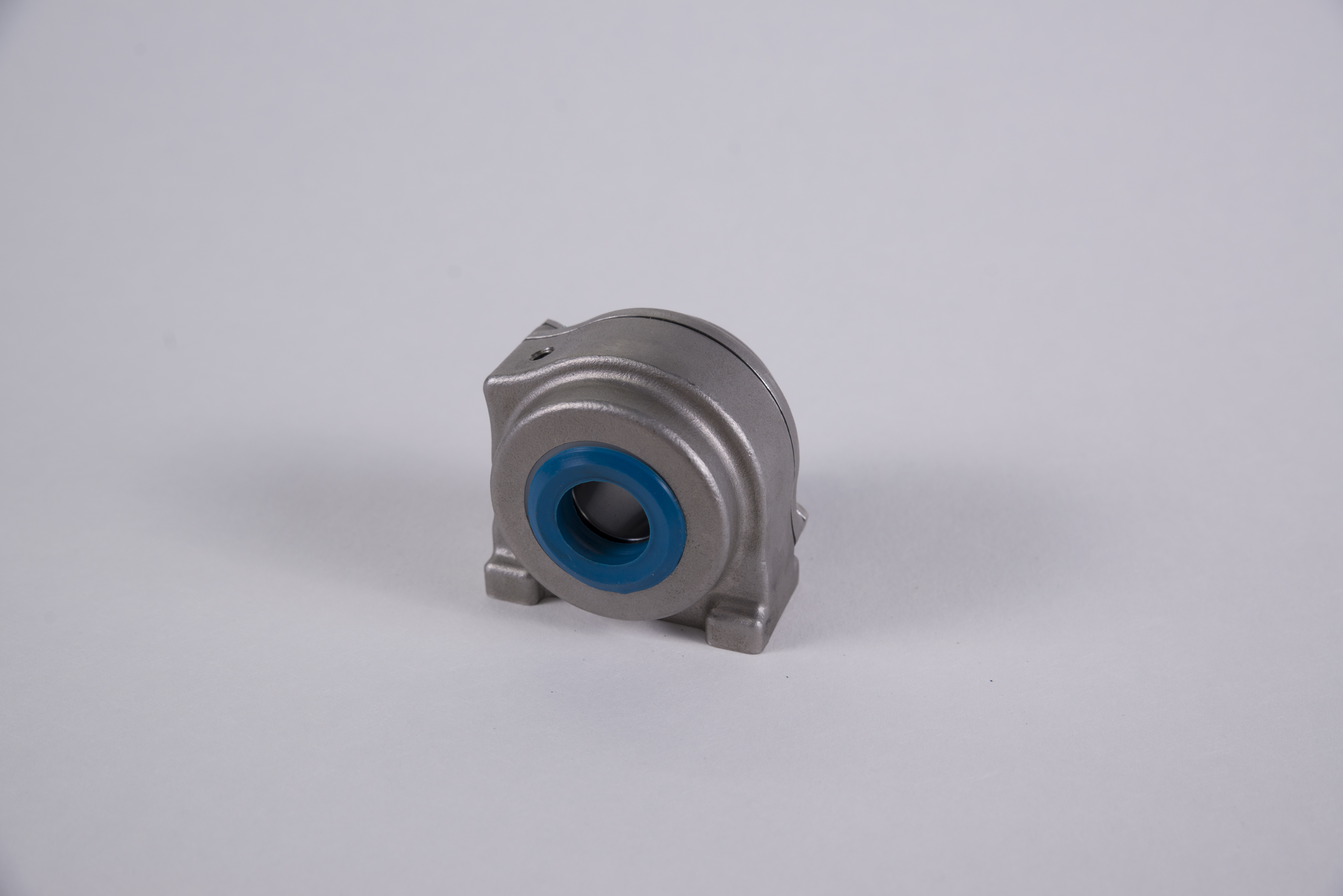

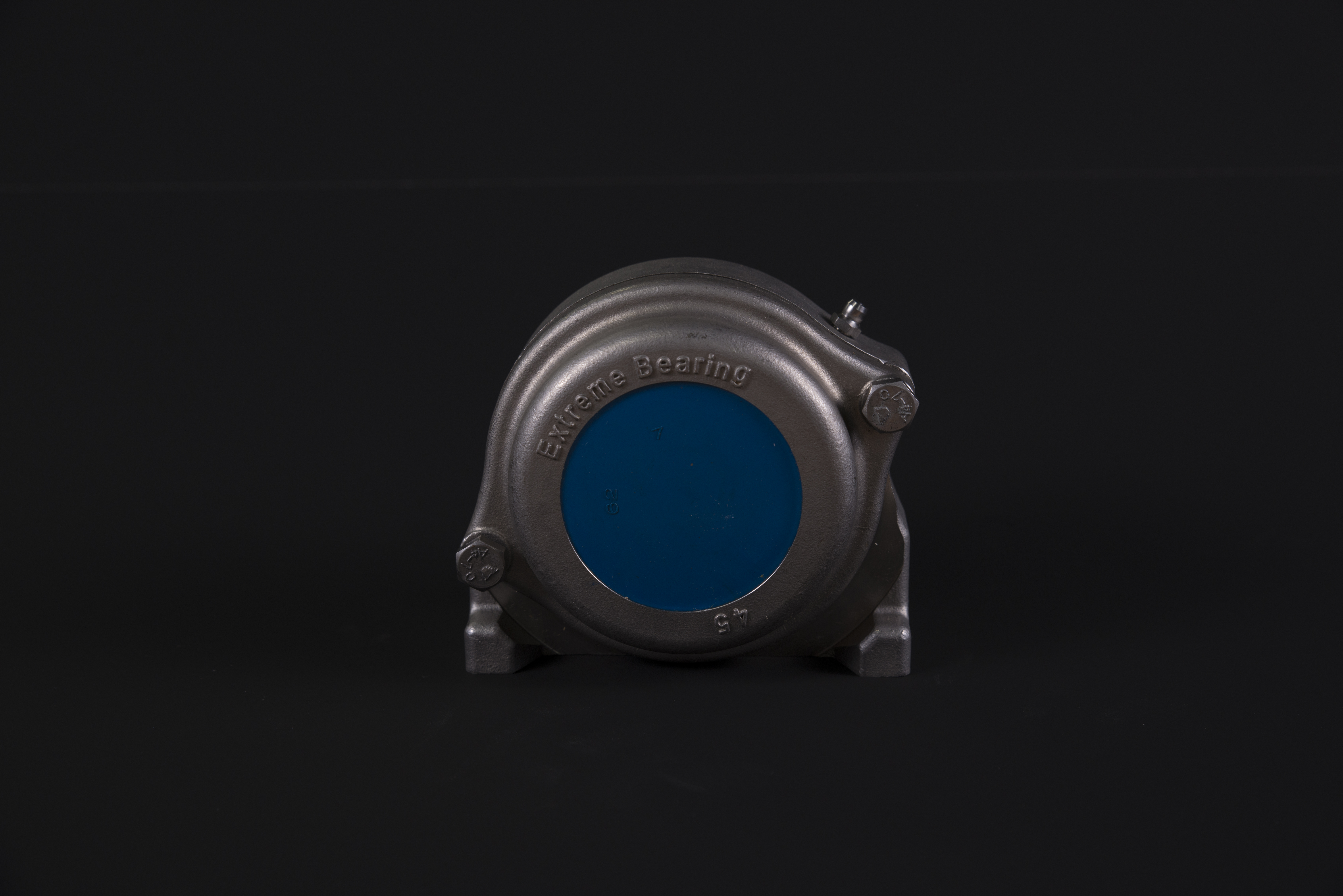

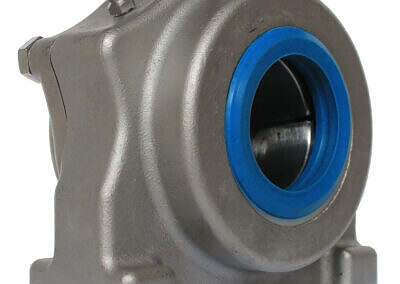

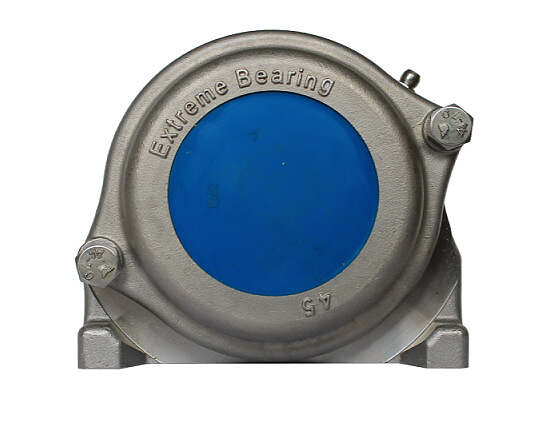

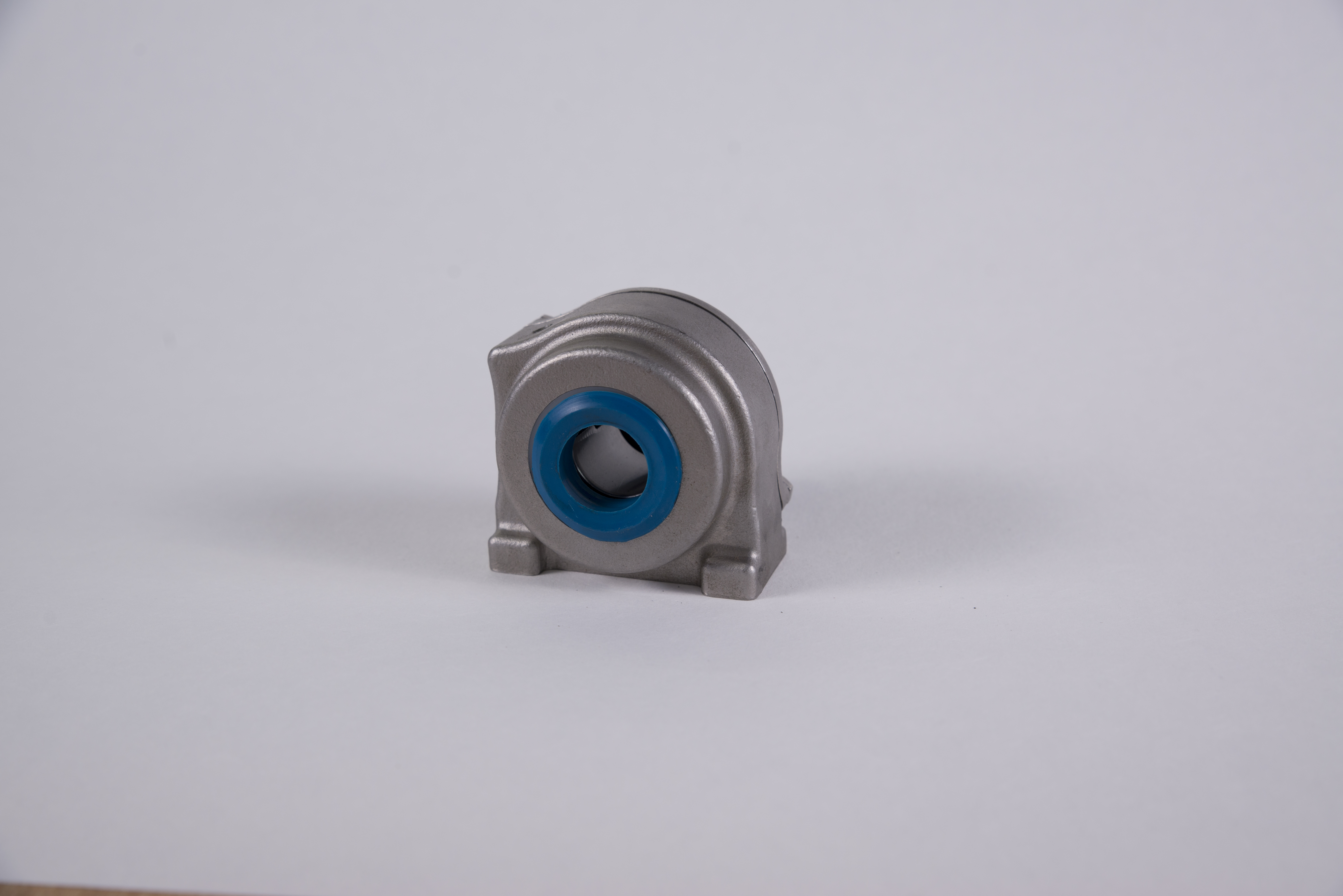

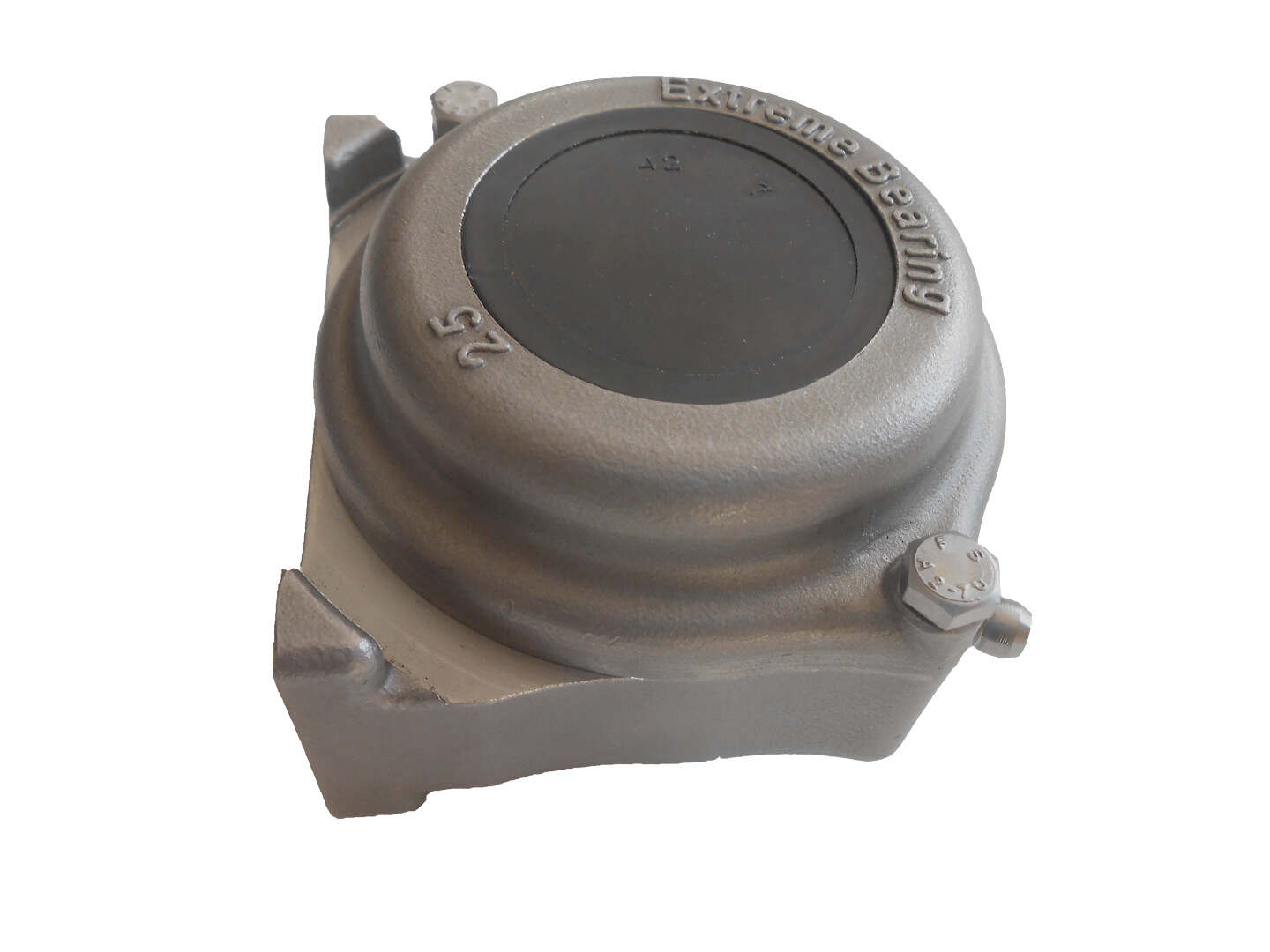

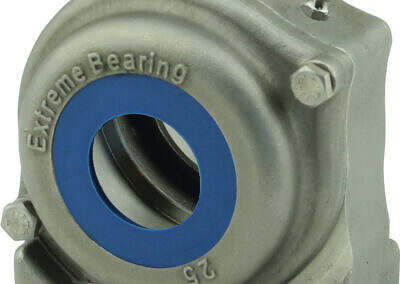

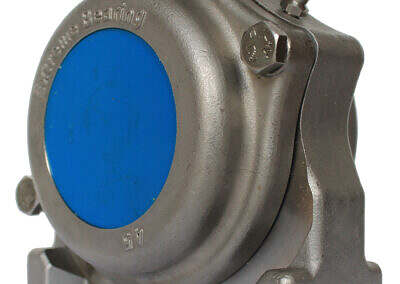

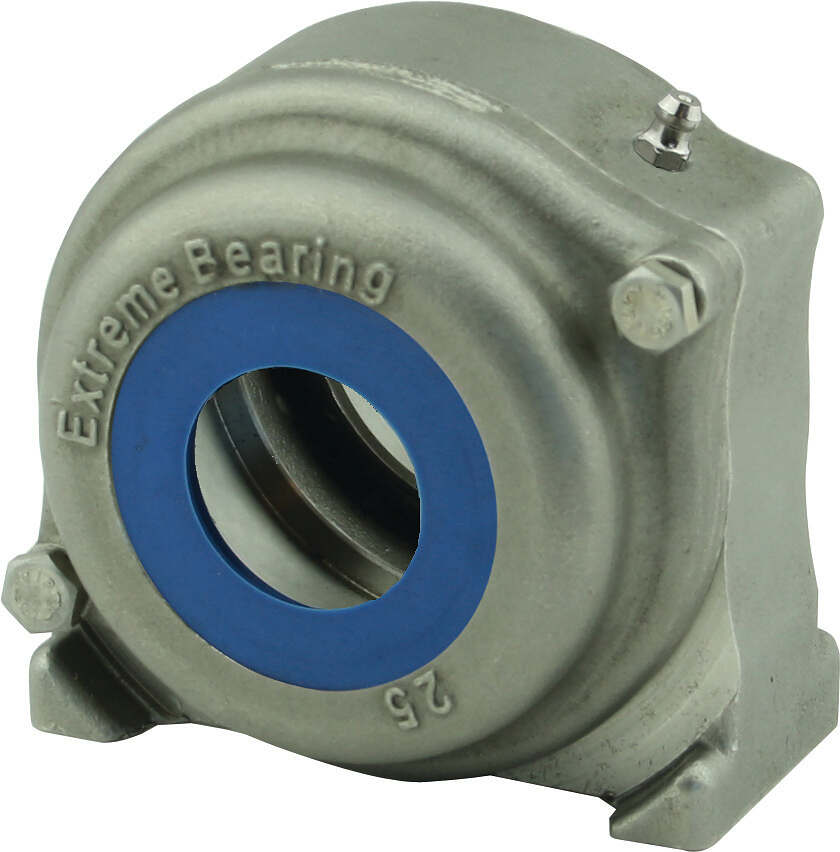

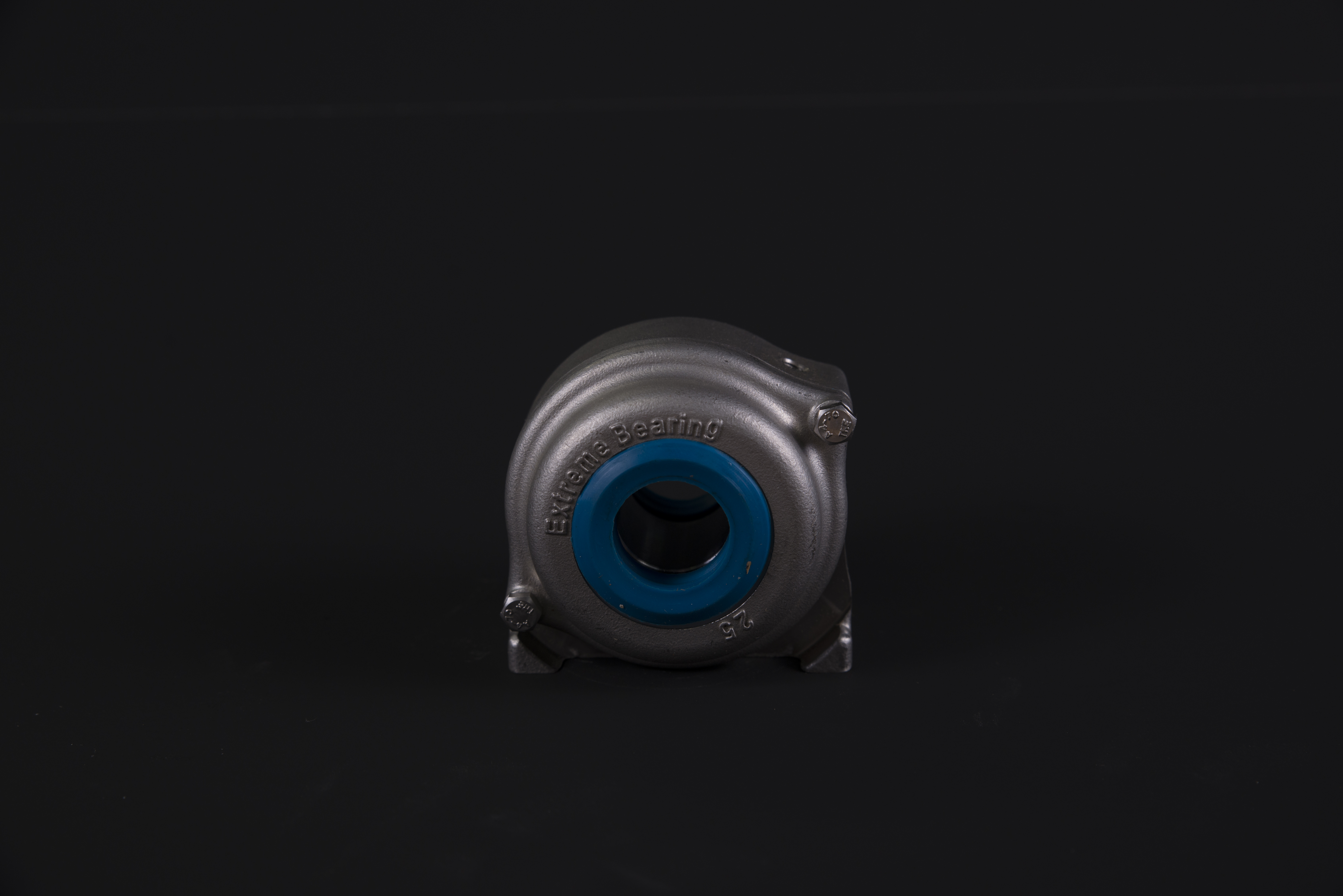

These EXC pillow block bearings can be secured vertically or horizontally to support rotating shafts. In comparison to the EXS washdown pillow block bearing, this design is more compact and therefore more suitable in tight spaces. The housing is made of stainless steel (grade 316) which is rustproof and resistant to corrosion from seawater. It is also resistant to all cleaning products and chemicals. The rounded corners and smooth surfaces make these units very easy to clean.

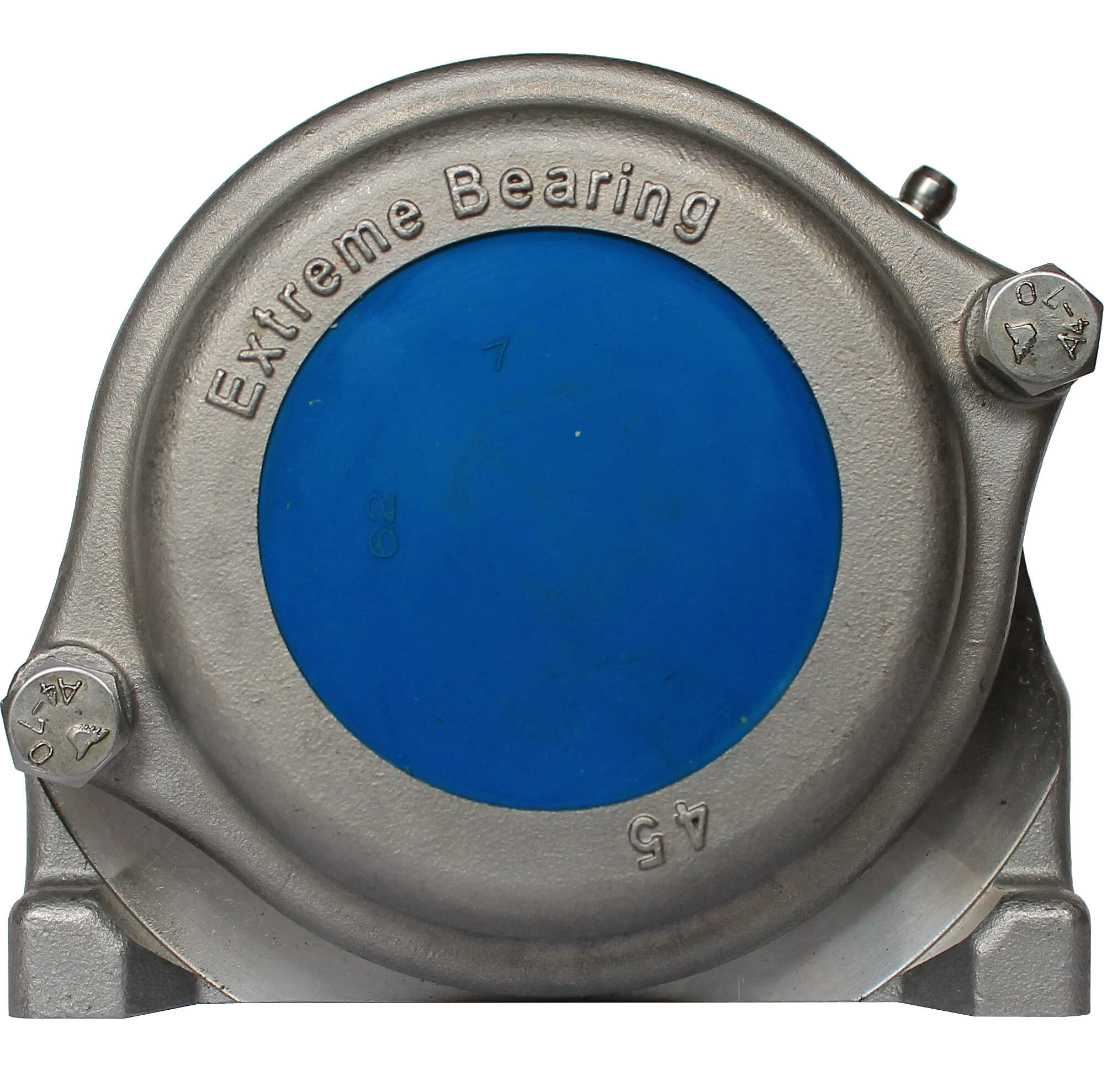

View the EXC compact pillow block housing in 3D
Explore the stainless steel 316 EXC compact pillow block housing in an interactive 3D environment. You can rotate, zoom, and measure the model directly to gain a clear understanding of the housing dimensions and design features.
Attention: two mounting-hole pitch sizes on the market
When you are looking for a bearing block to replace, pay attention: there are two pitch sizes of the mounting holes on the market. You can see these sizes in the dimension table below for Type EXC and Type EXR.
For new installations we recommend type EXC: it is more standard and we keep more stock of it.
EXC
EXC is a bearing block whose mounting pitch corresponds to the SKF bearing blocks SYF..TF.
EXCR
EXCR is a bearing block whose mounting pitch corresponds to the INA bearing blocks PSHE..-N.
Discover our exceptional sealing options

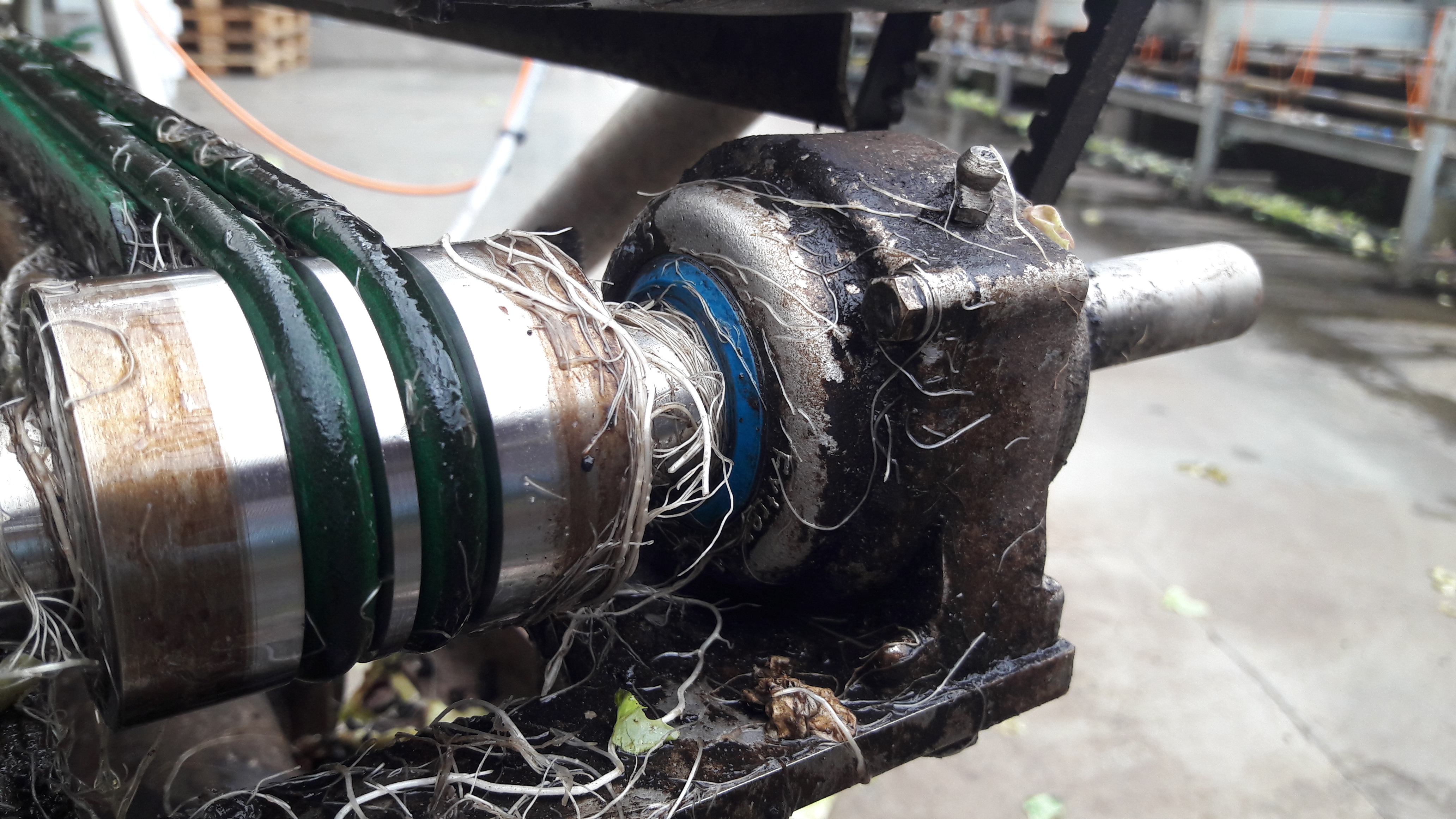

Configurable sealing solutions protect the bearing against water, dust, dirt, and other contaminants — for washdown, submerged, and abrasive applications.

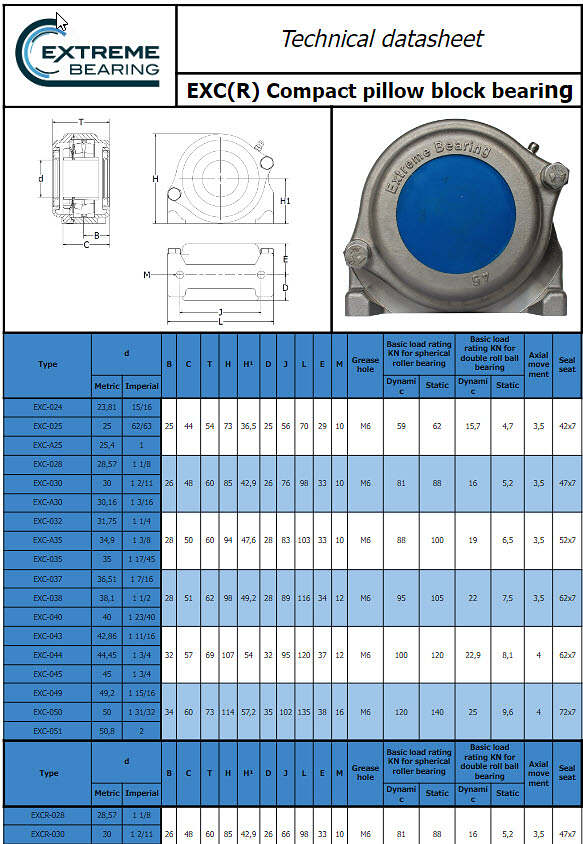

Technical Datasheet

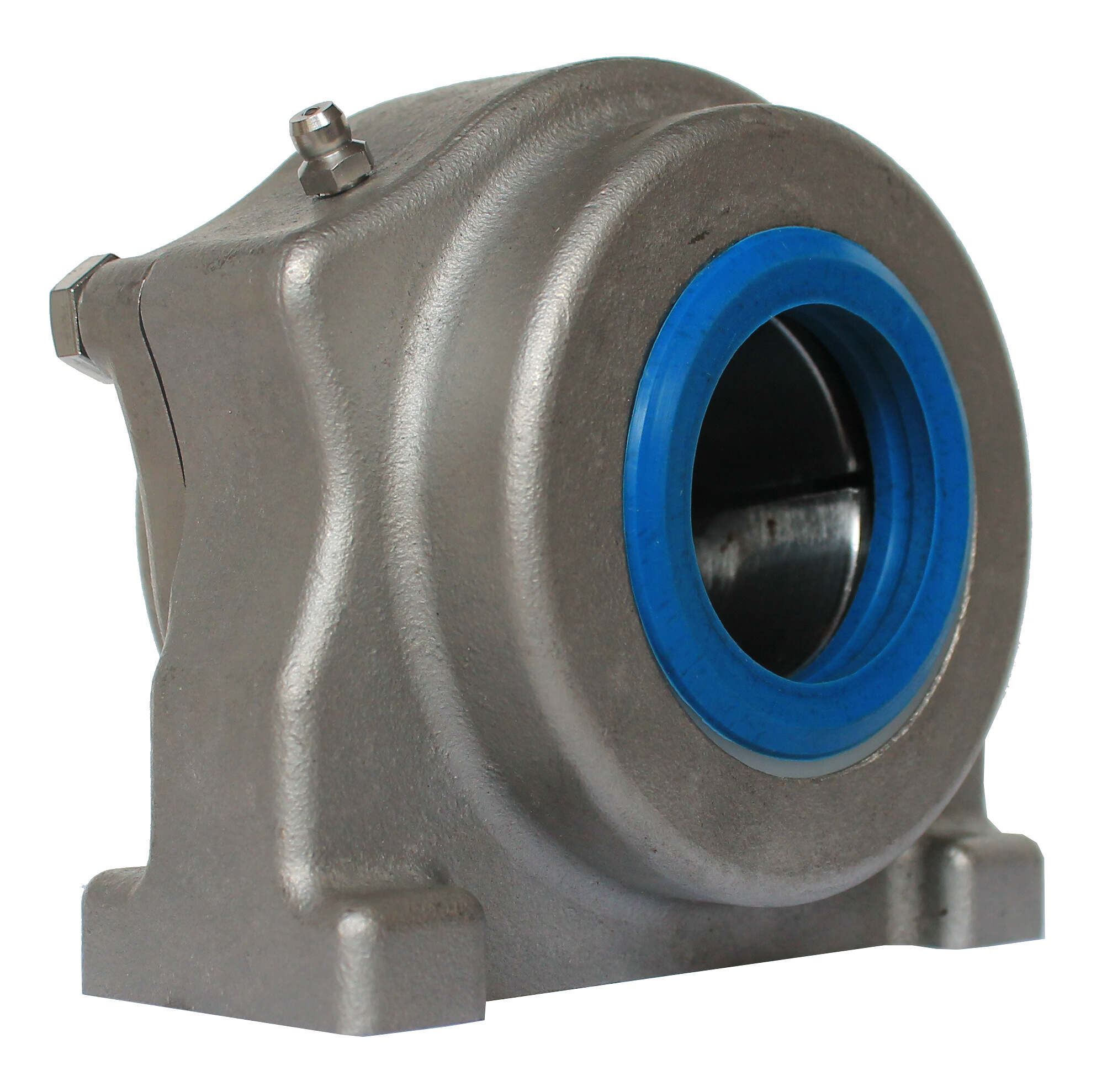

EXC – Stainless Steel 316 Compact Pillow Block Housing
Technical Specifications
| Specification | Description |
|---|---|
| Product | Stainless Steel 316 Compact (Tapped-Base) Pillow Block Housing |
| Type | EXC |
| Mounting style | Foot mounted, tapped base — vertical or horizontal mounting |
| Shaft sizes | 25 mm – 55 mm, including standard inch sizes |
| Mounting pitch | EXC matches SKF SYF..TF; variant EXCR matches INA PSHE..-N |
| Design | More compact than the EXS pillow block — suitable for tight spaces |
| Housing material | Stainless Steel 316 (AISI 316 / UNS S31600) |
| Construction | Heavy duty |
| Application | Industrial machinery |
| Configuration | Extreme Bearing Product Chooser |
| Target market | OEMs, Machine Builders & System Integrators |
EXC Compact Pillow Block Housing Dimensions and Mounting Specifications
Load Directions for the EXC Compact Pillow Block Housing

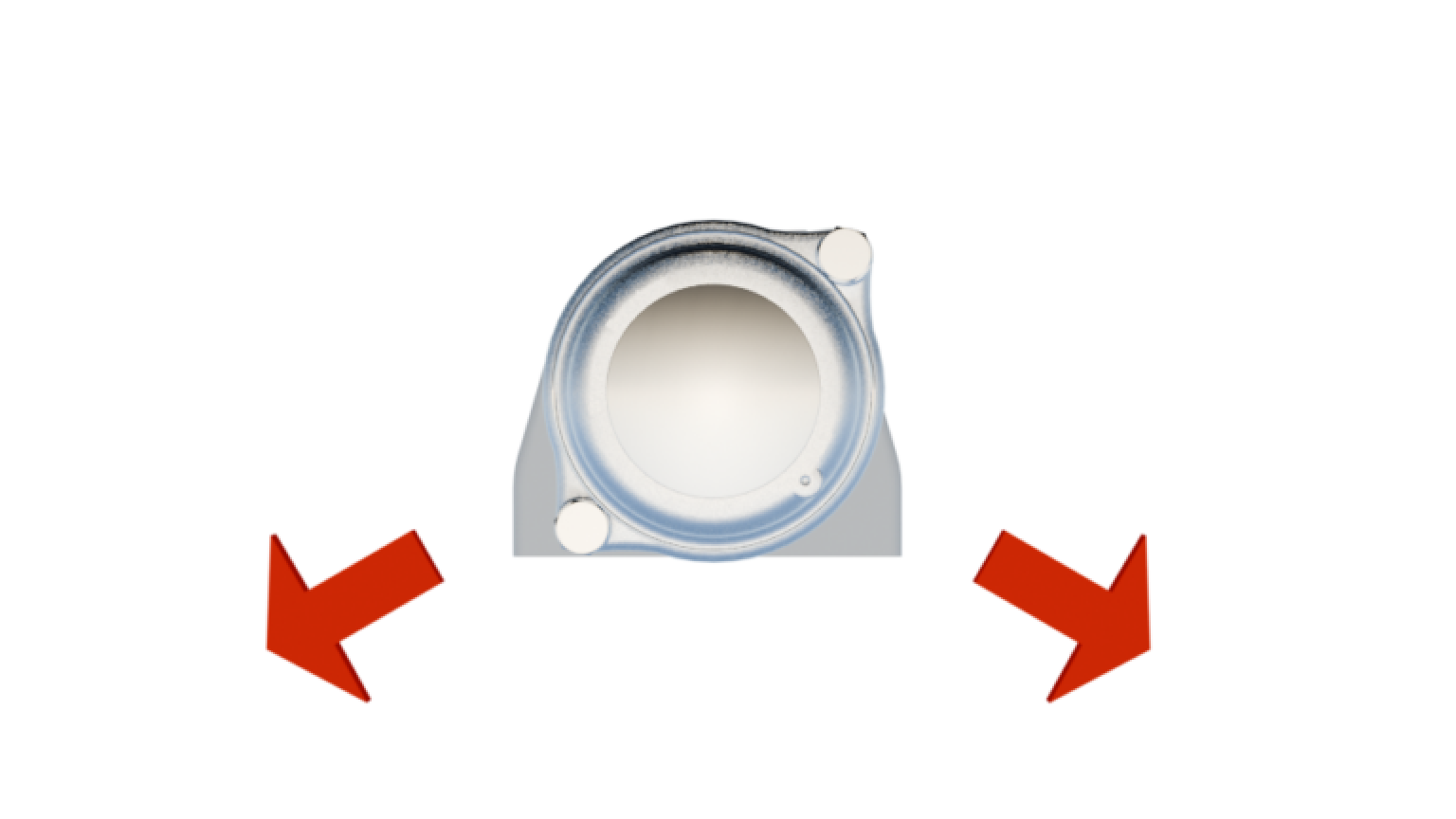

Extreme pillow block bearings are intended for loads acting vertically towards the base plate support. Therefore, if the bearing housing is supported over its entire base, loads are limited only by the load limits of the bearing insert. If loads acting in other directions occur or if the housing is not supported over its entire base area, check that the magnitude of the load is permissible for the bolt assembly attached to the machine frame.

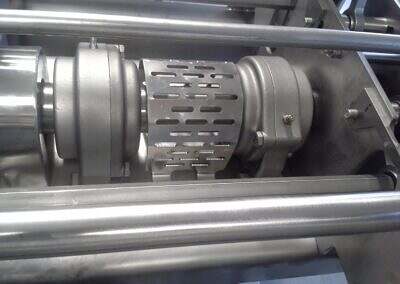

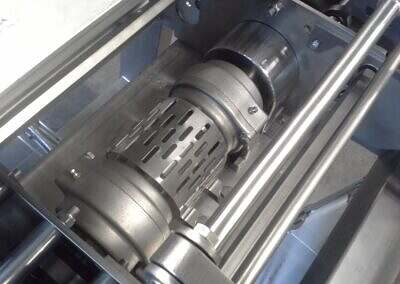

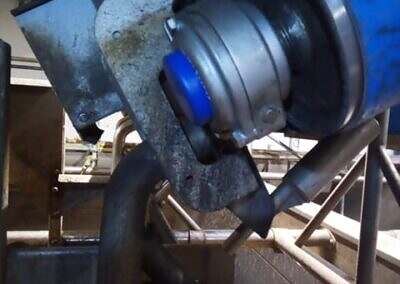

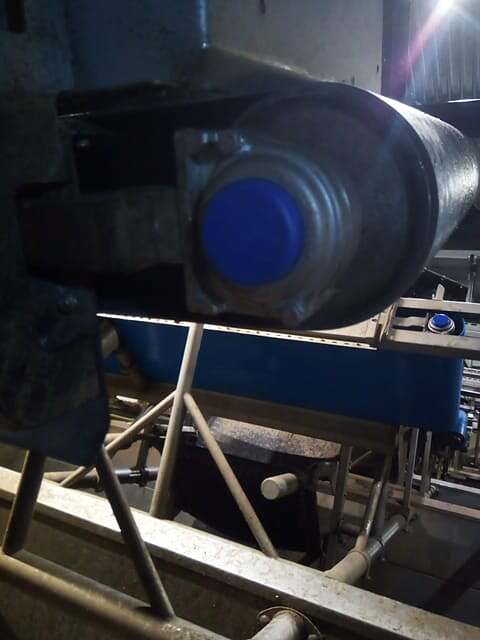

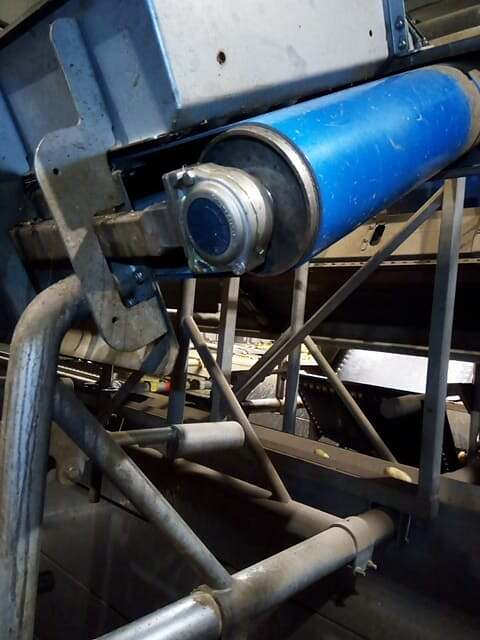

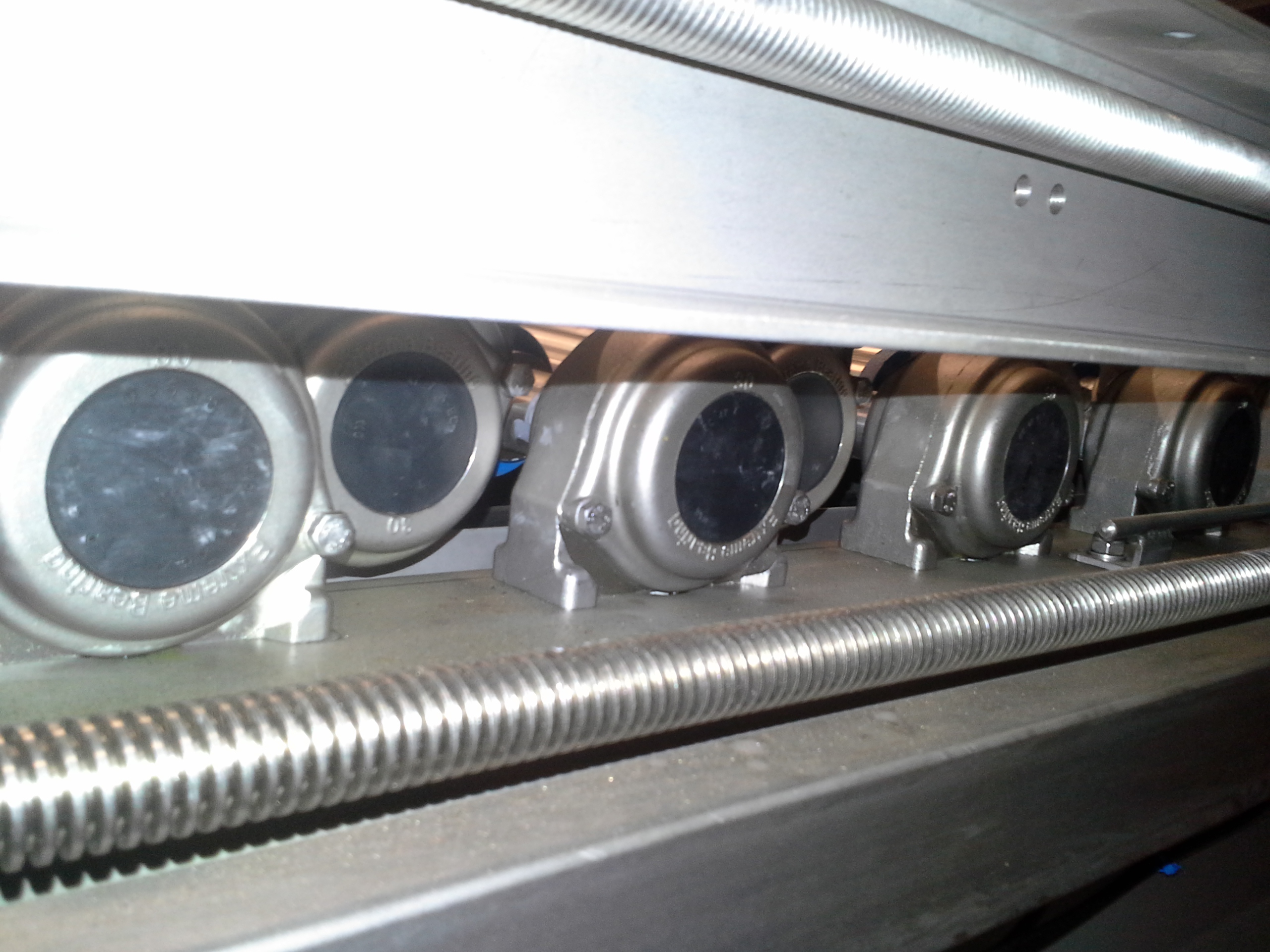

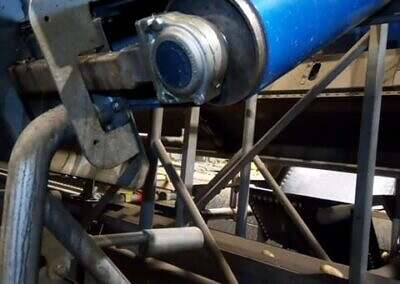

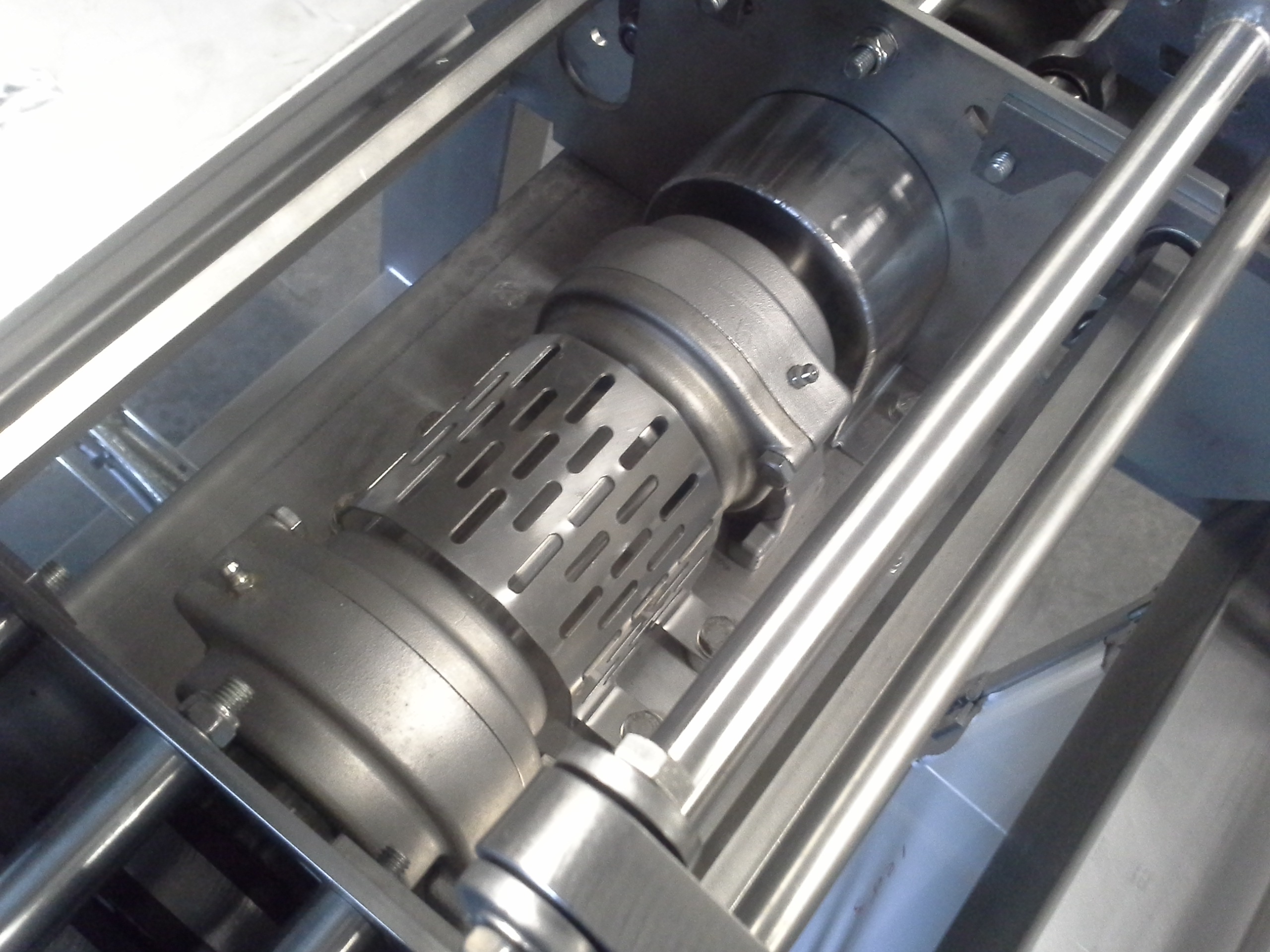

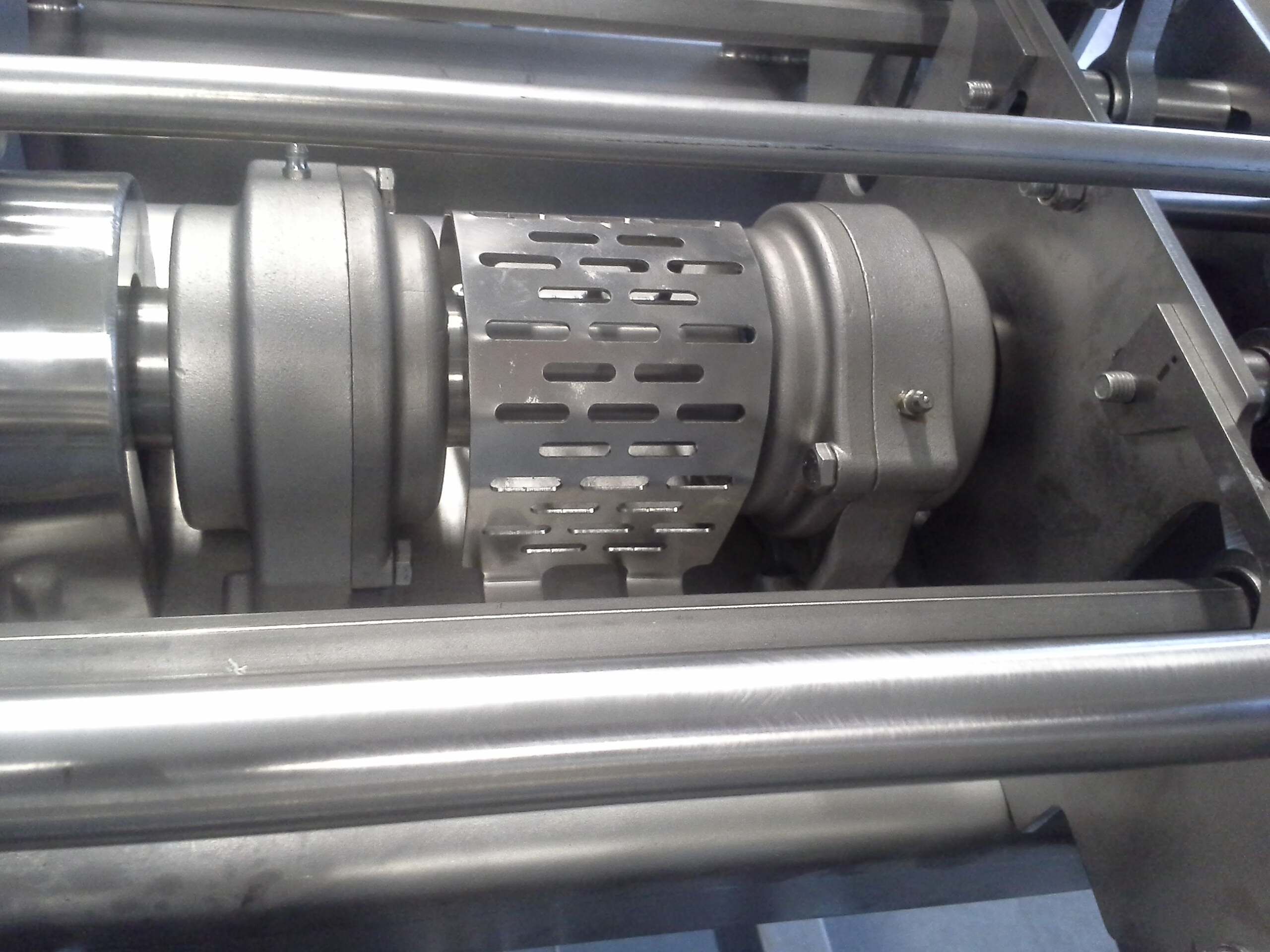

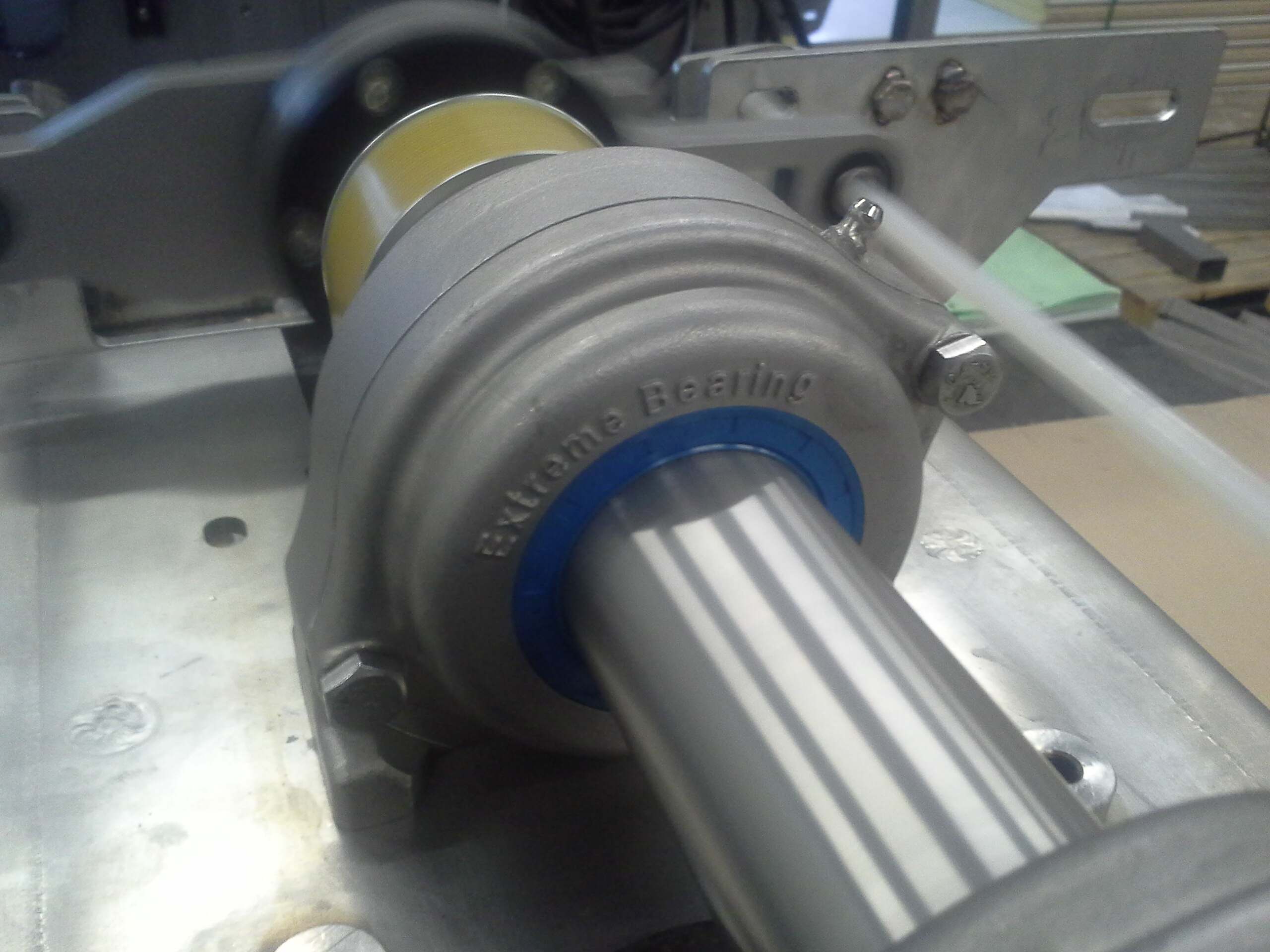

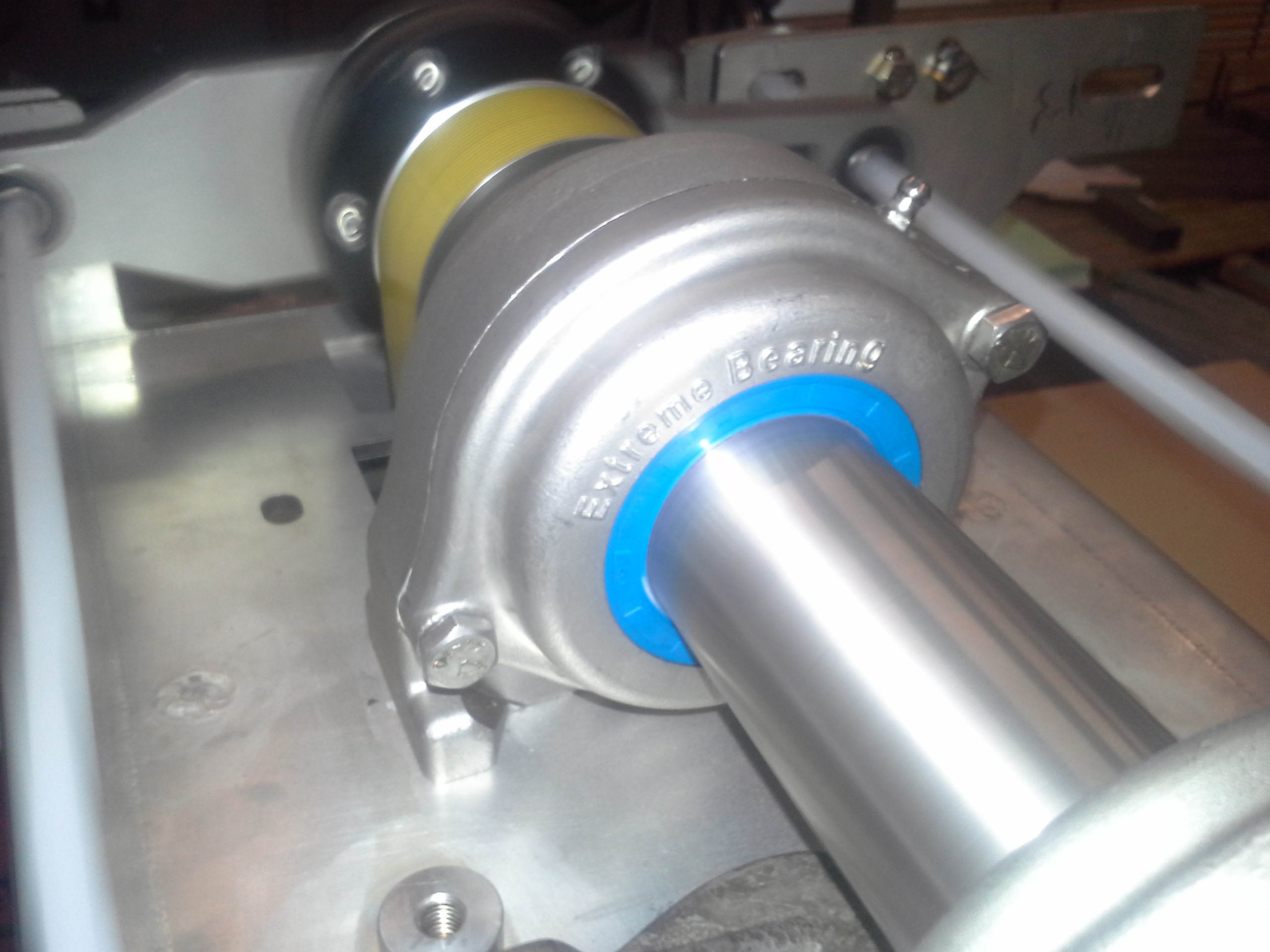

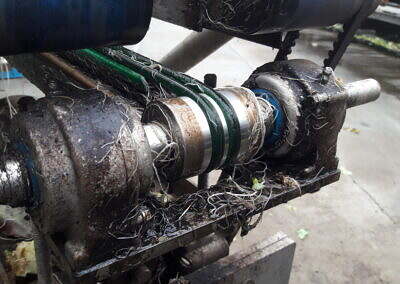

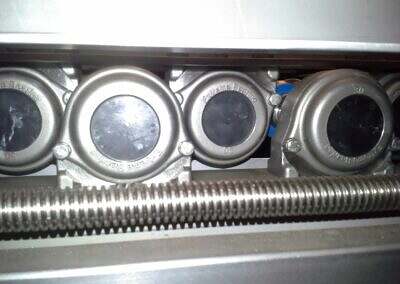

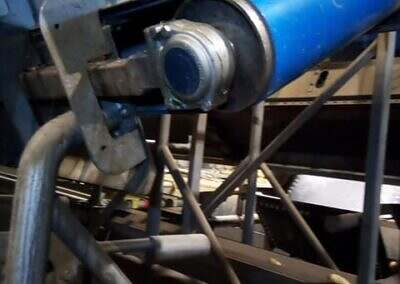

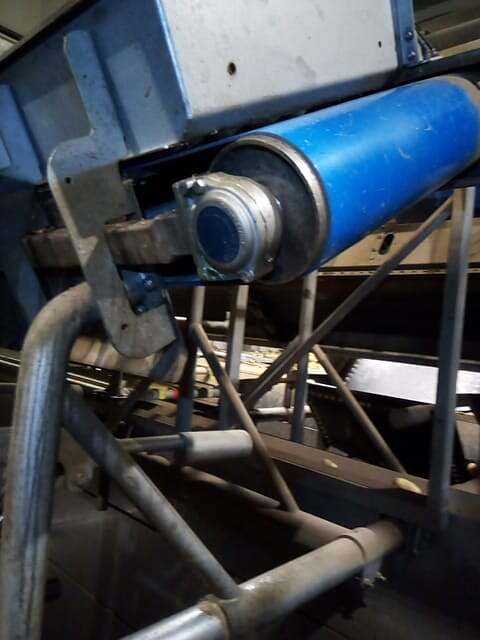

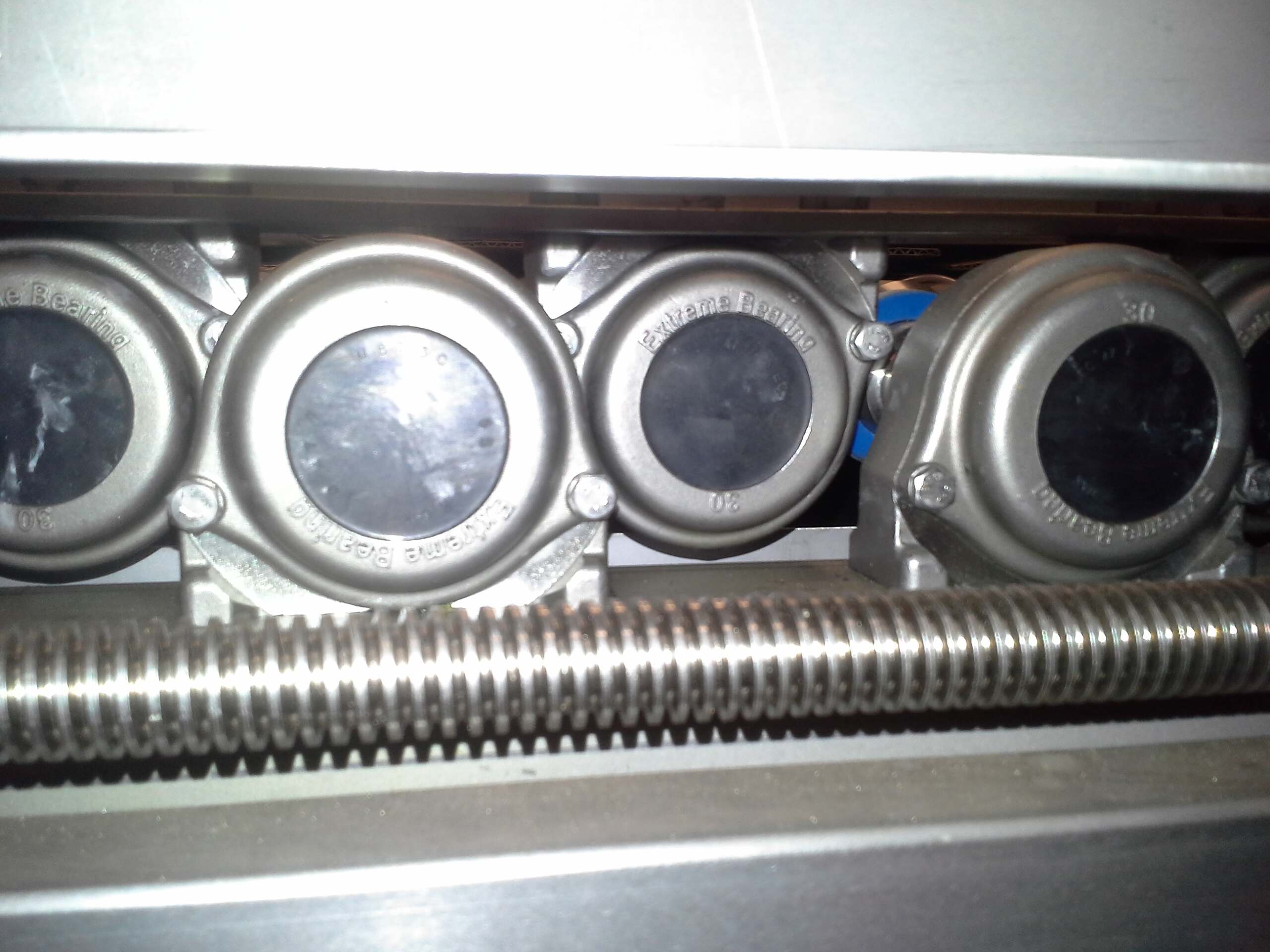

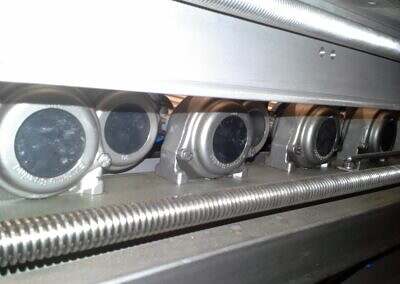

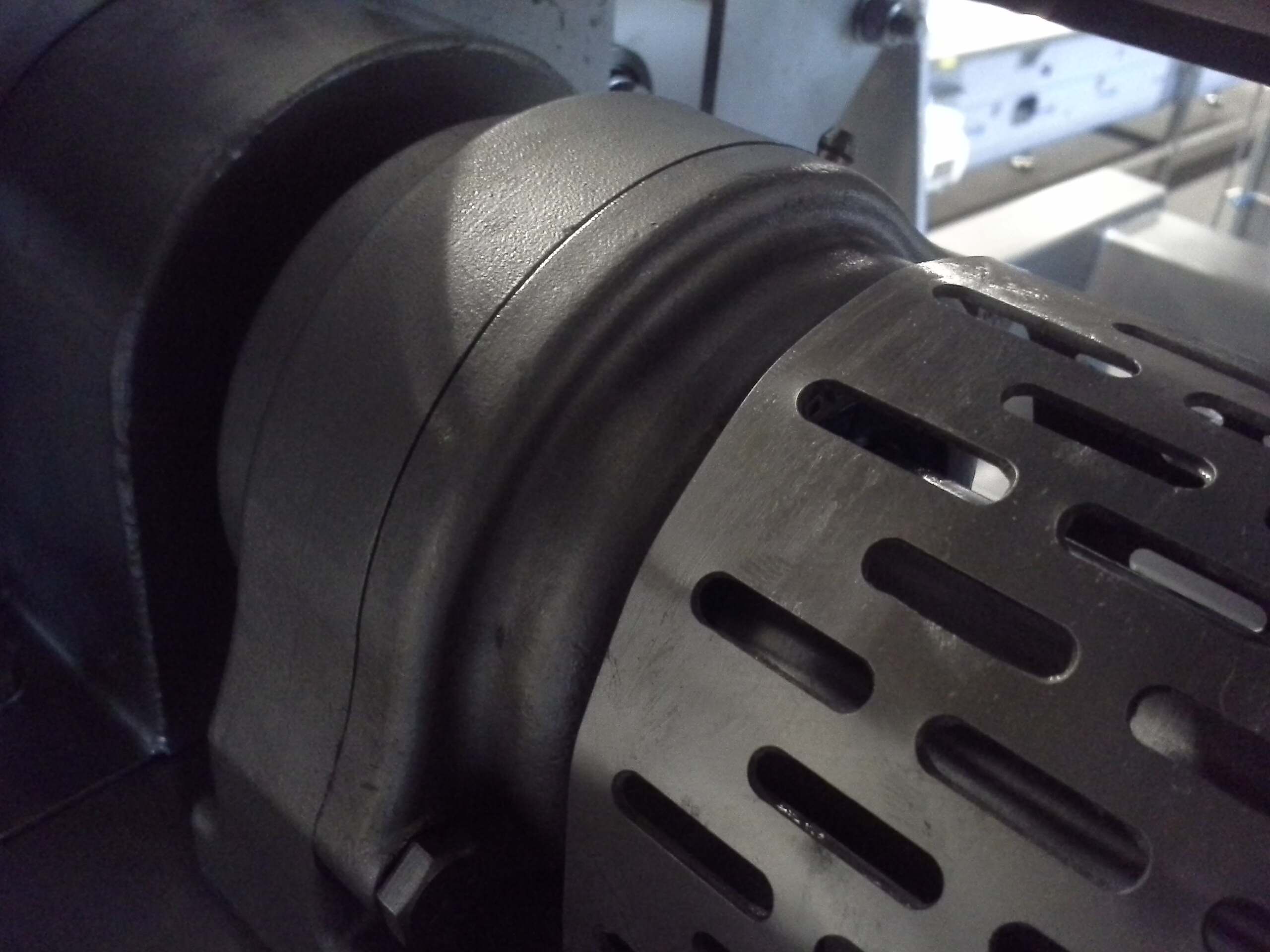

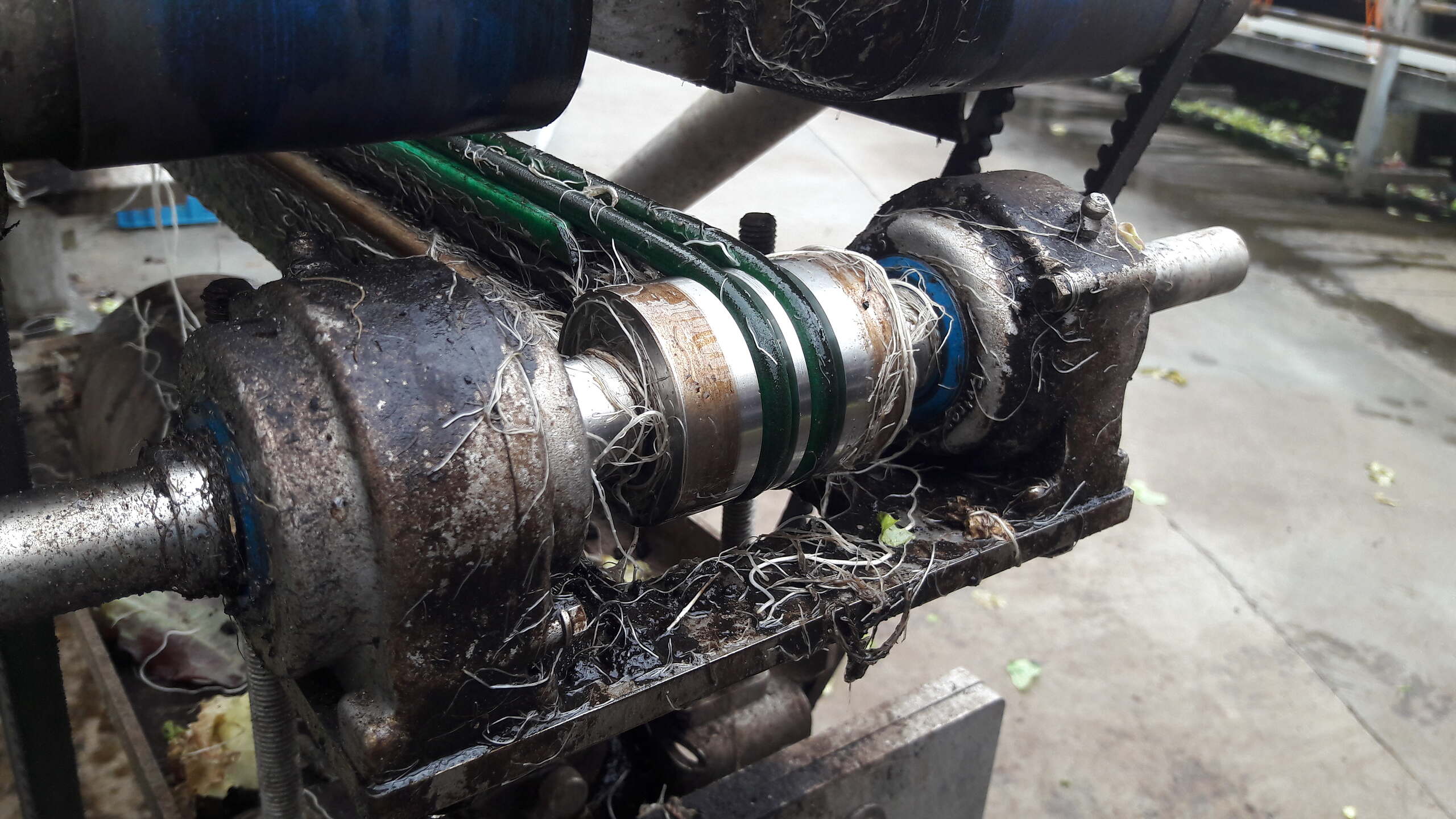

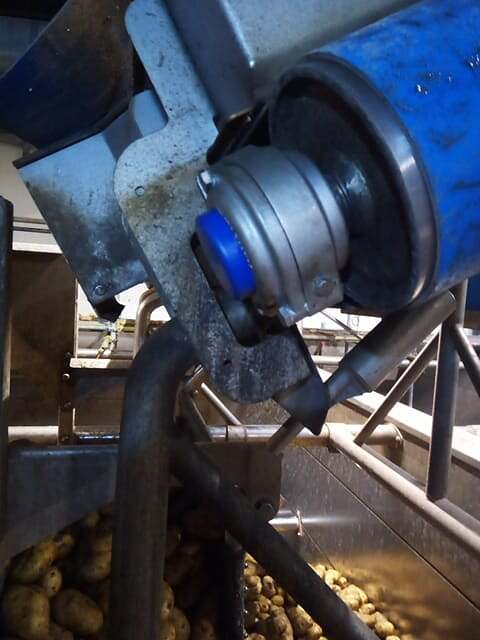

Bearing the unbearable — a look into the world of Extreme Bearing Type EXC applications.
Ready to build your bearing assembly?
Configure your stainless steel 316 EXC compact pillow block housing in the Product Chooser and download the Technical Datasheet (PDF) and 3D STEP model instantly.
