SS-316 2-Bolt Round Flange Bearing Units

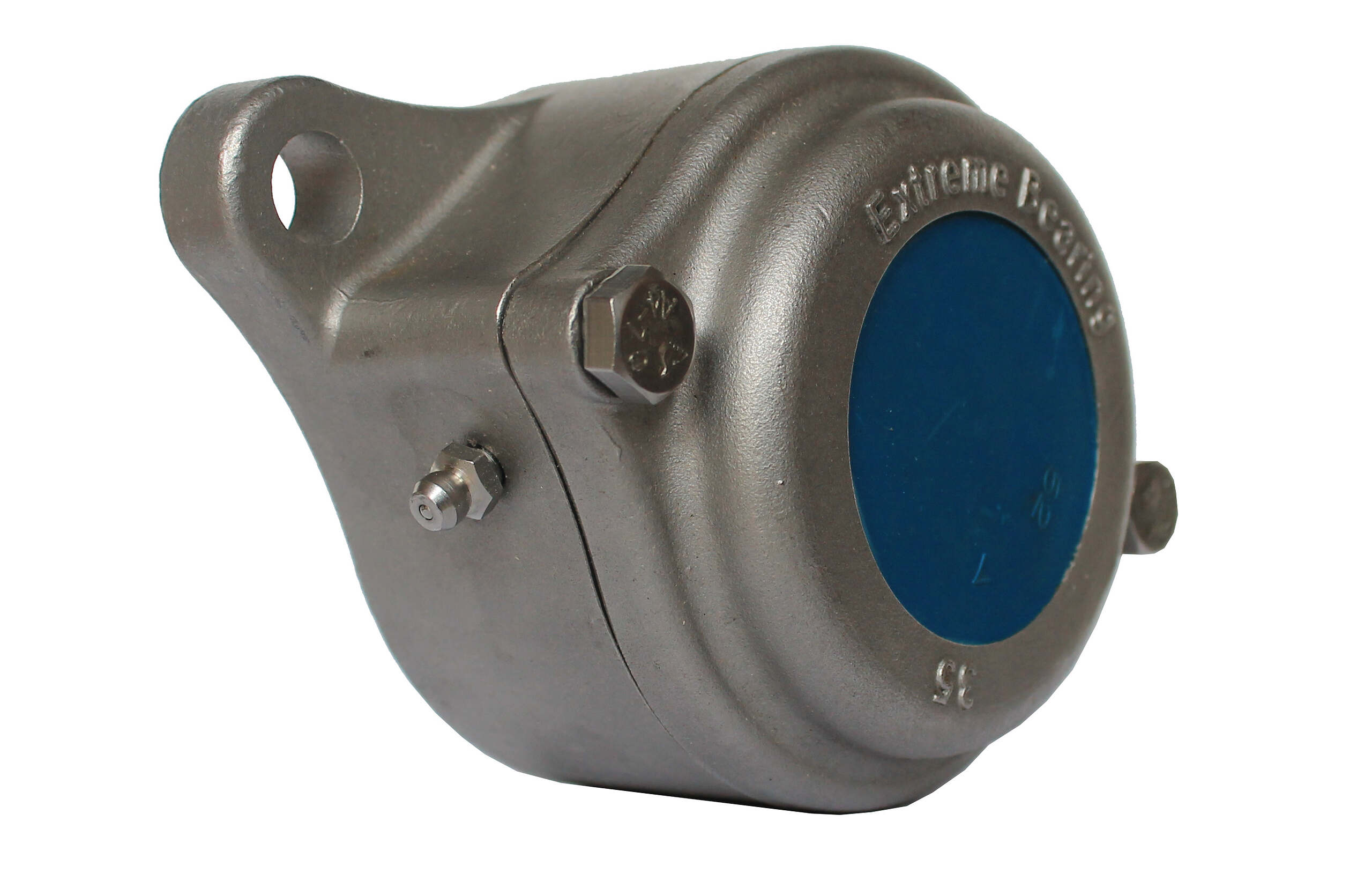

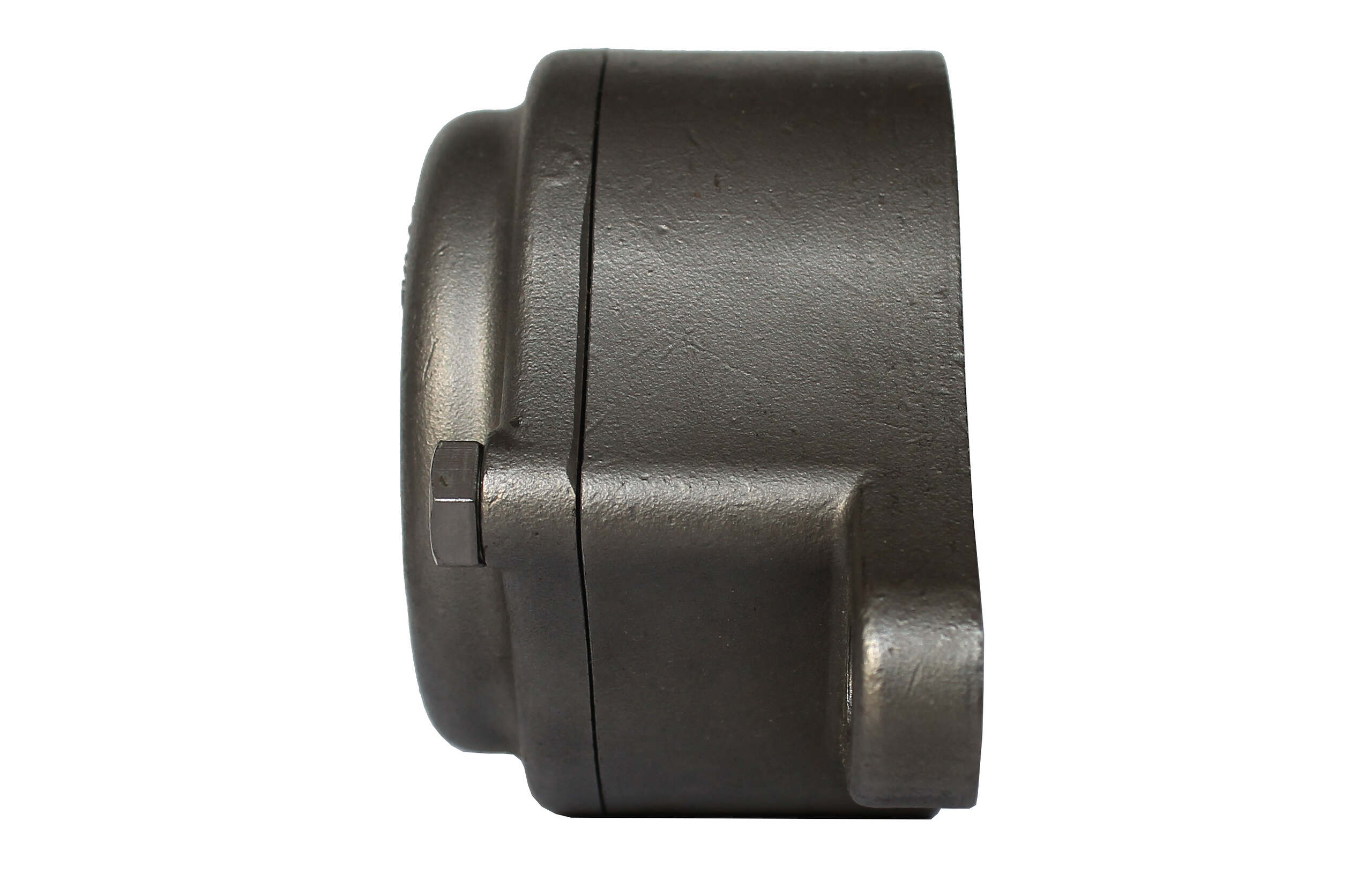

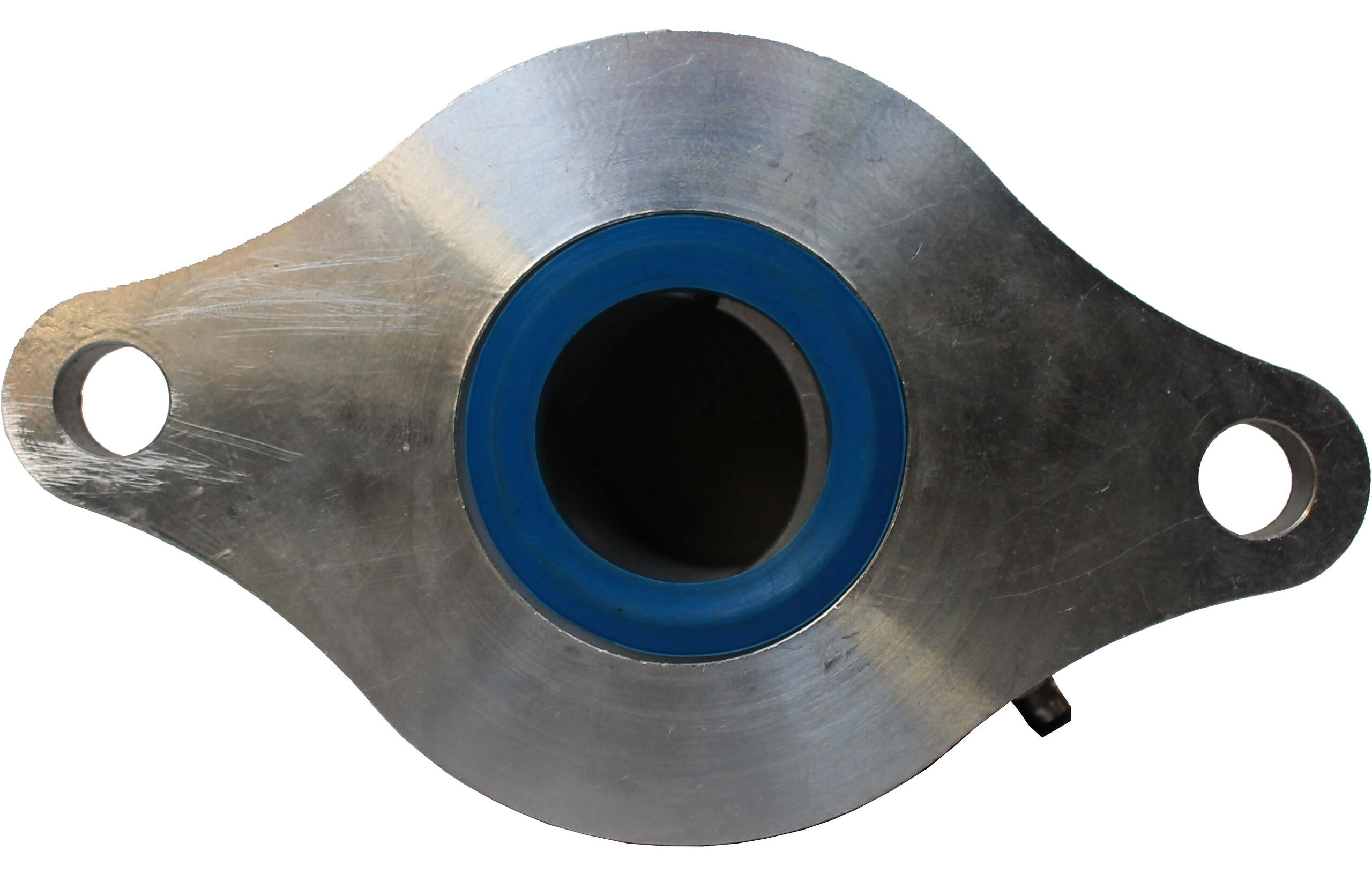

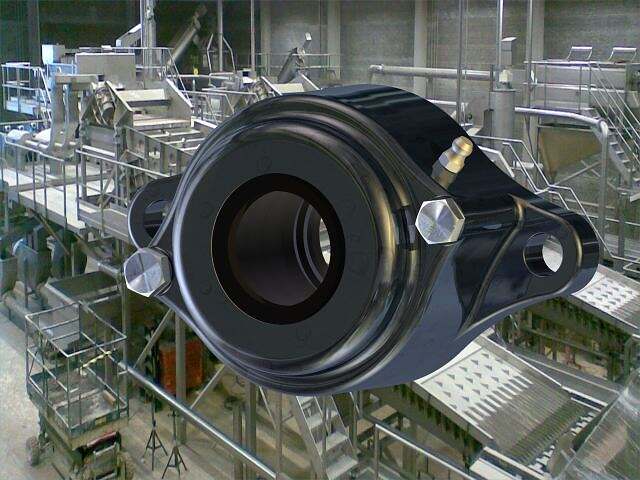

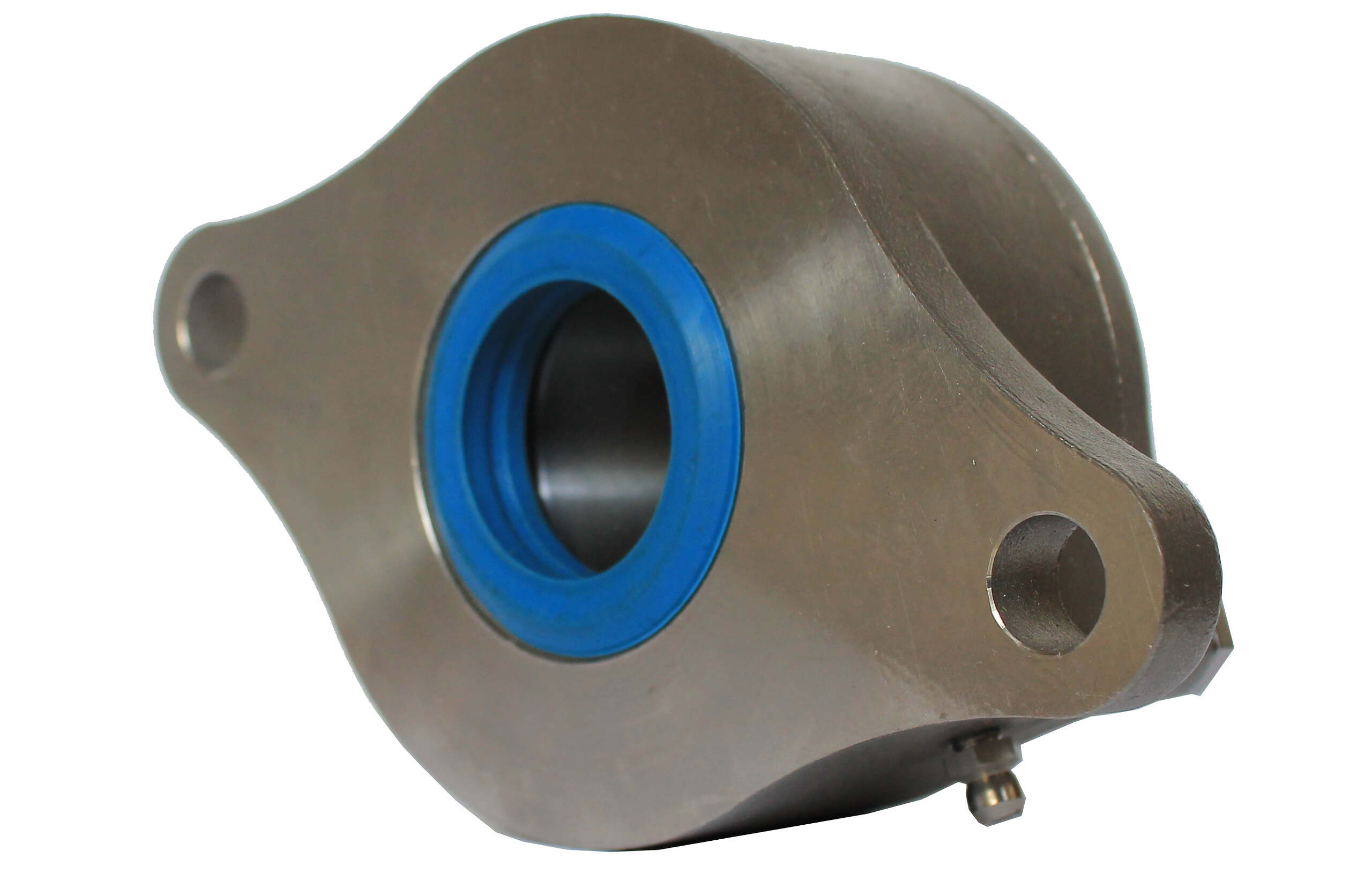

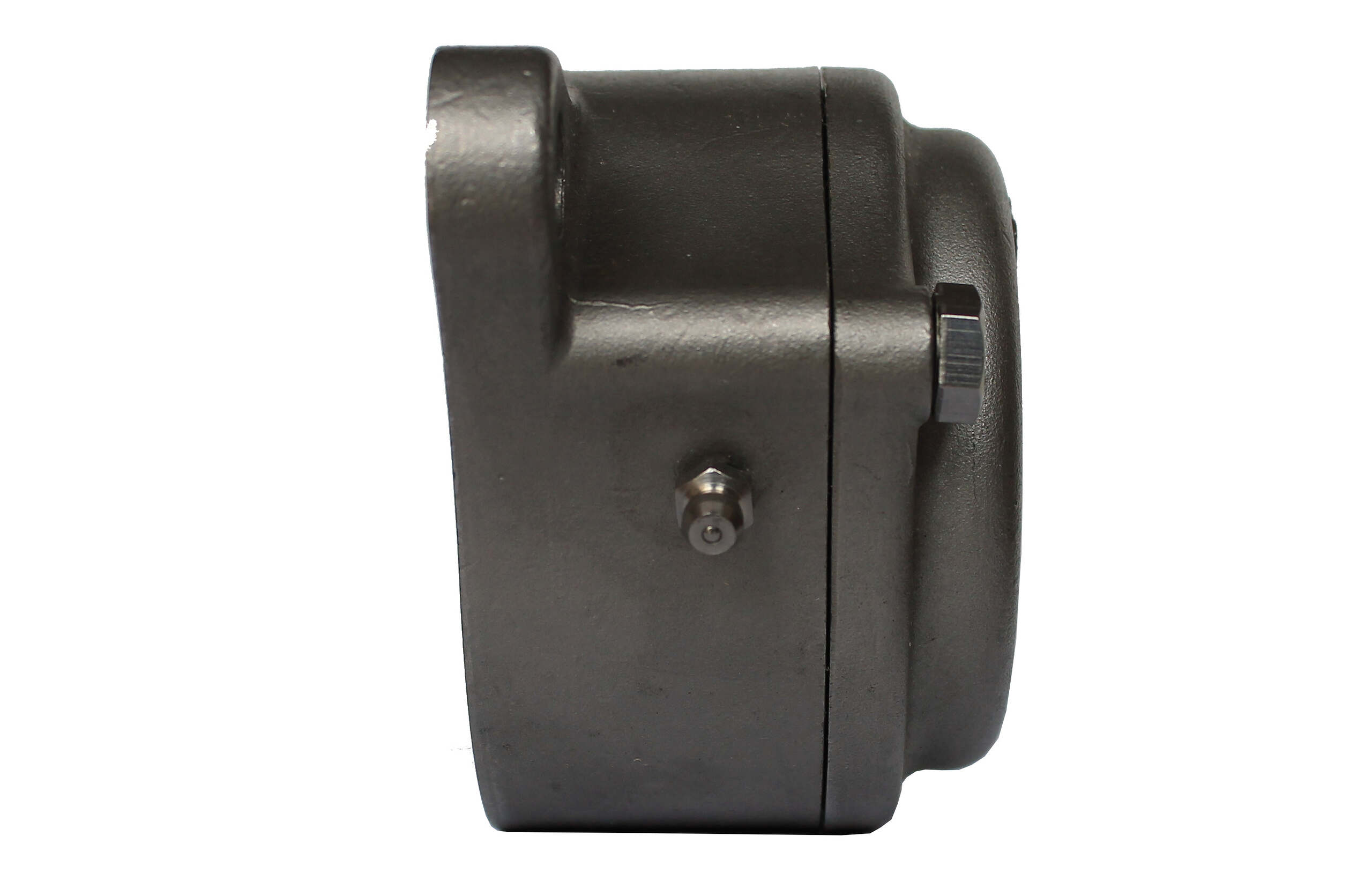

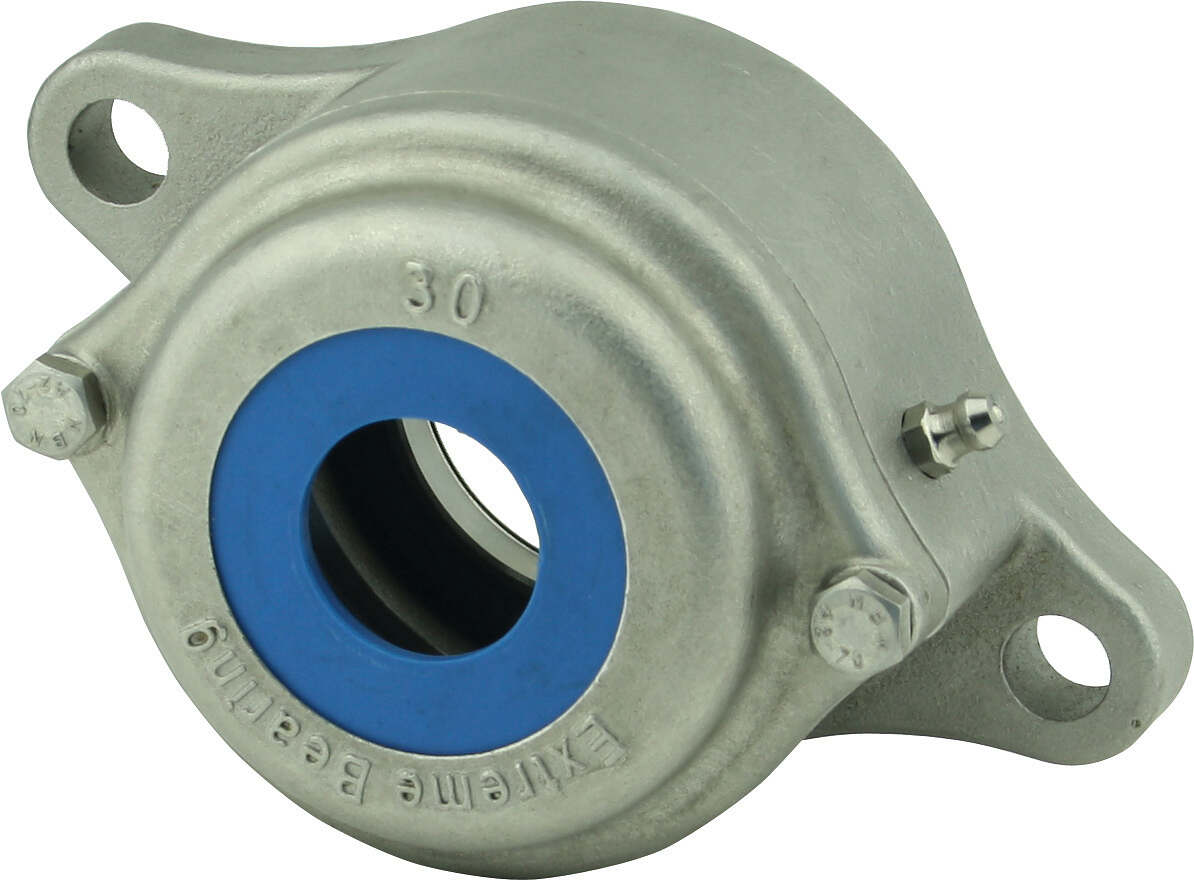

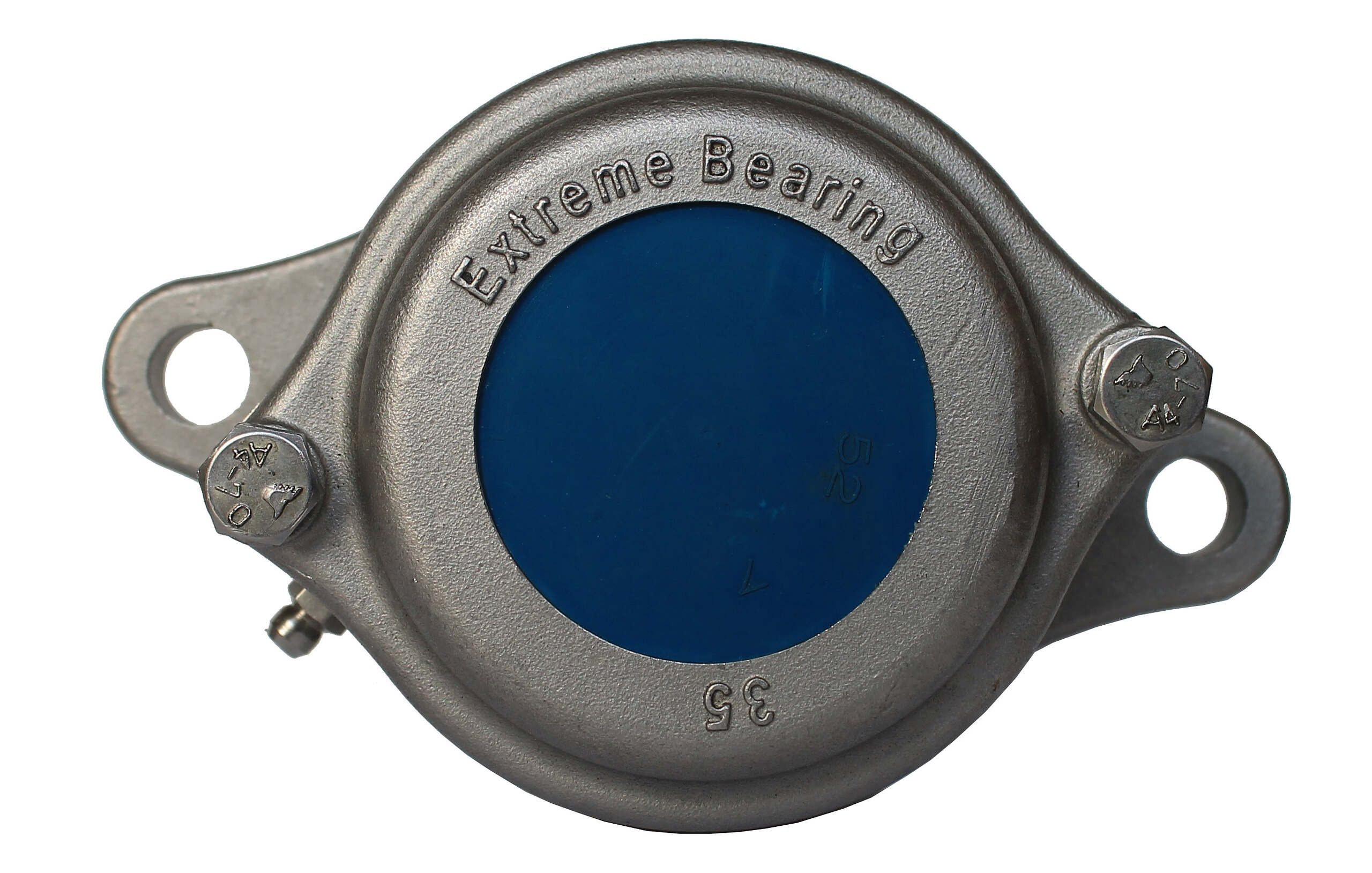

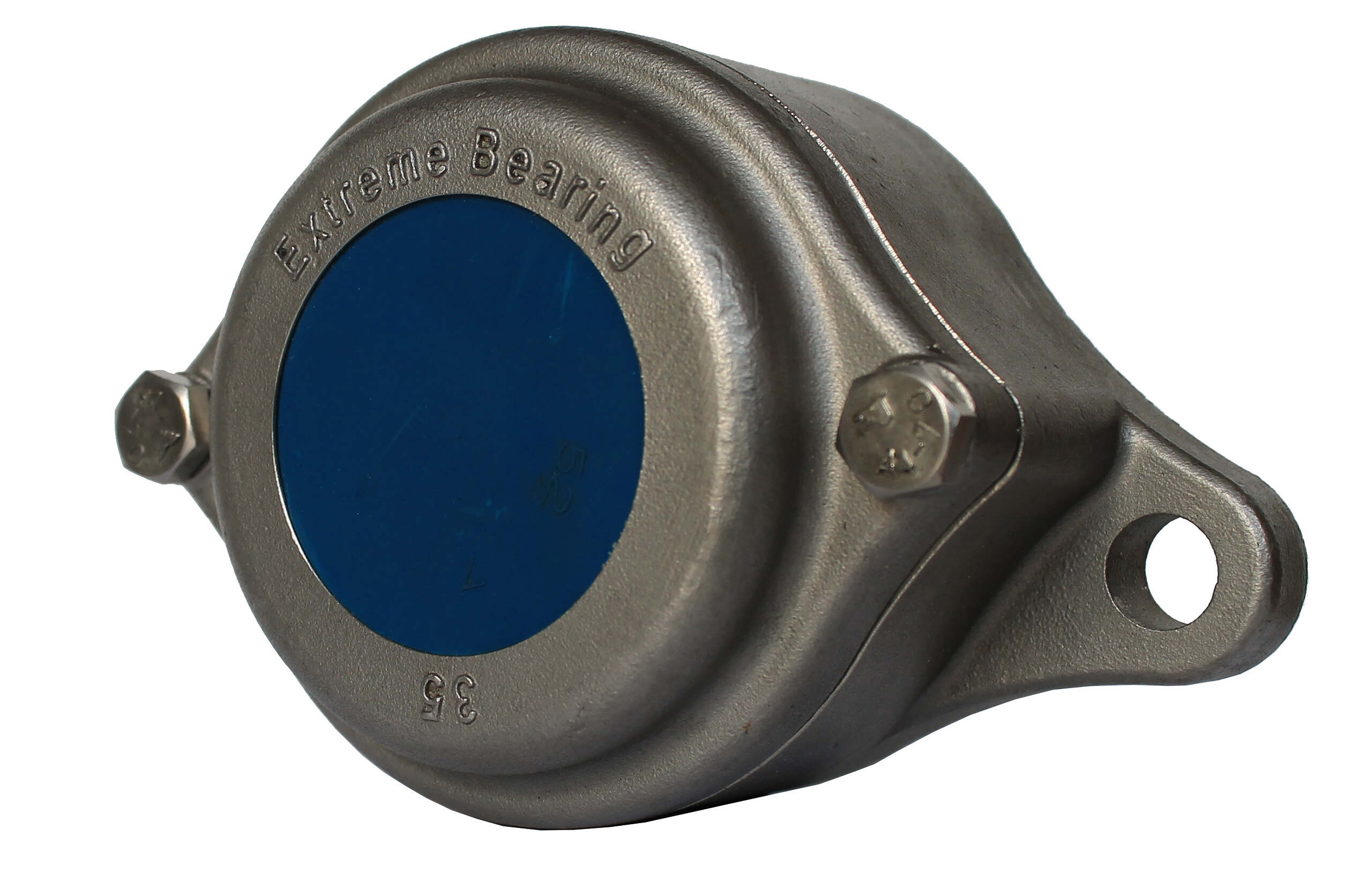

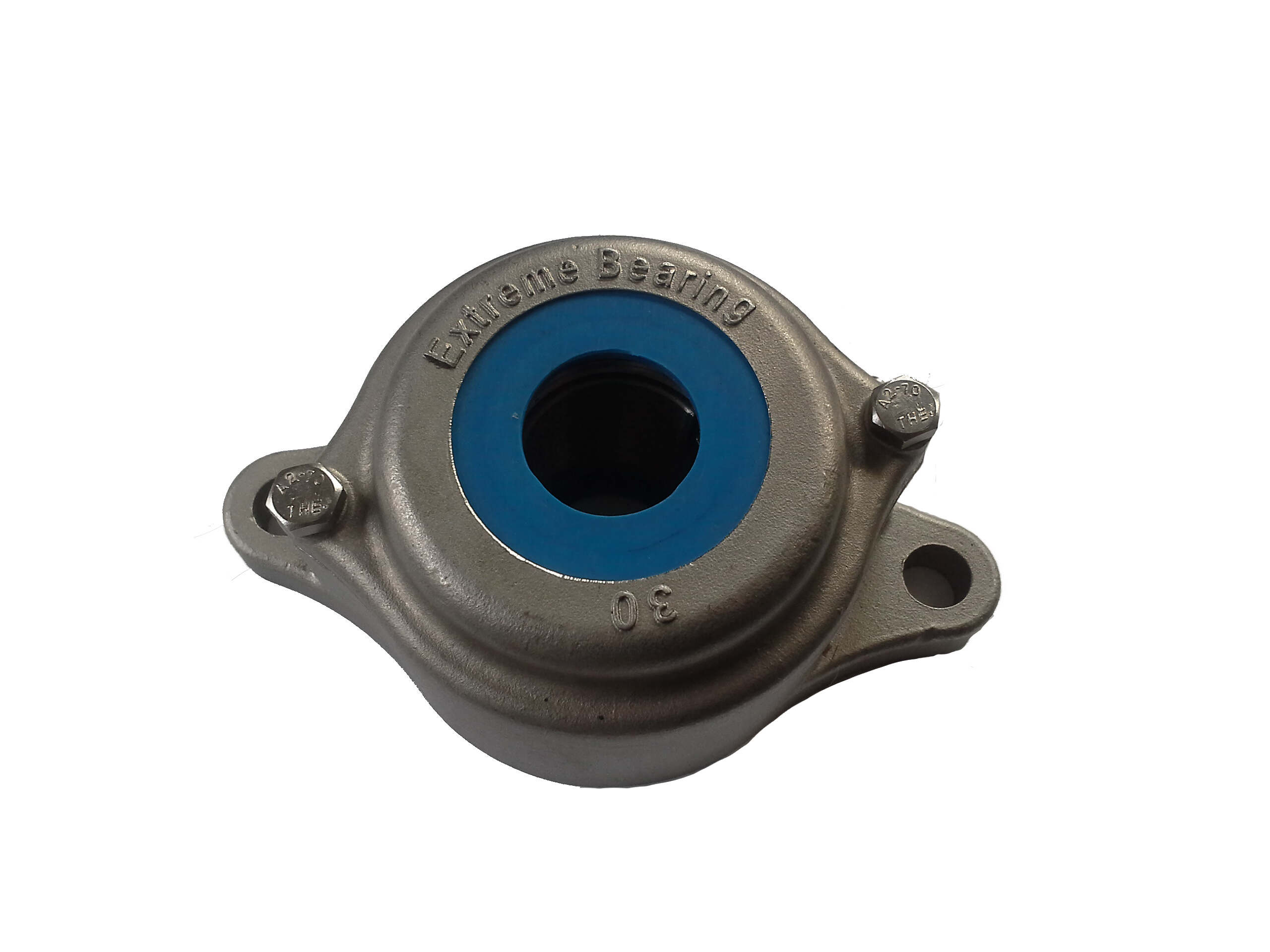

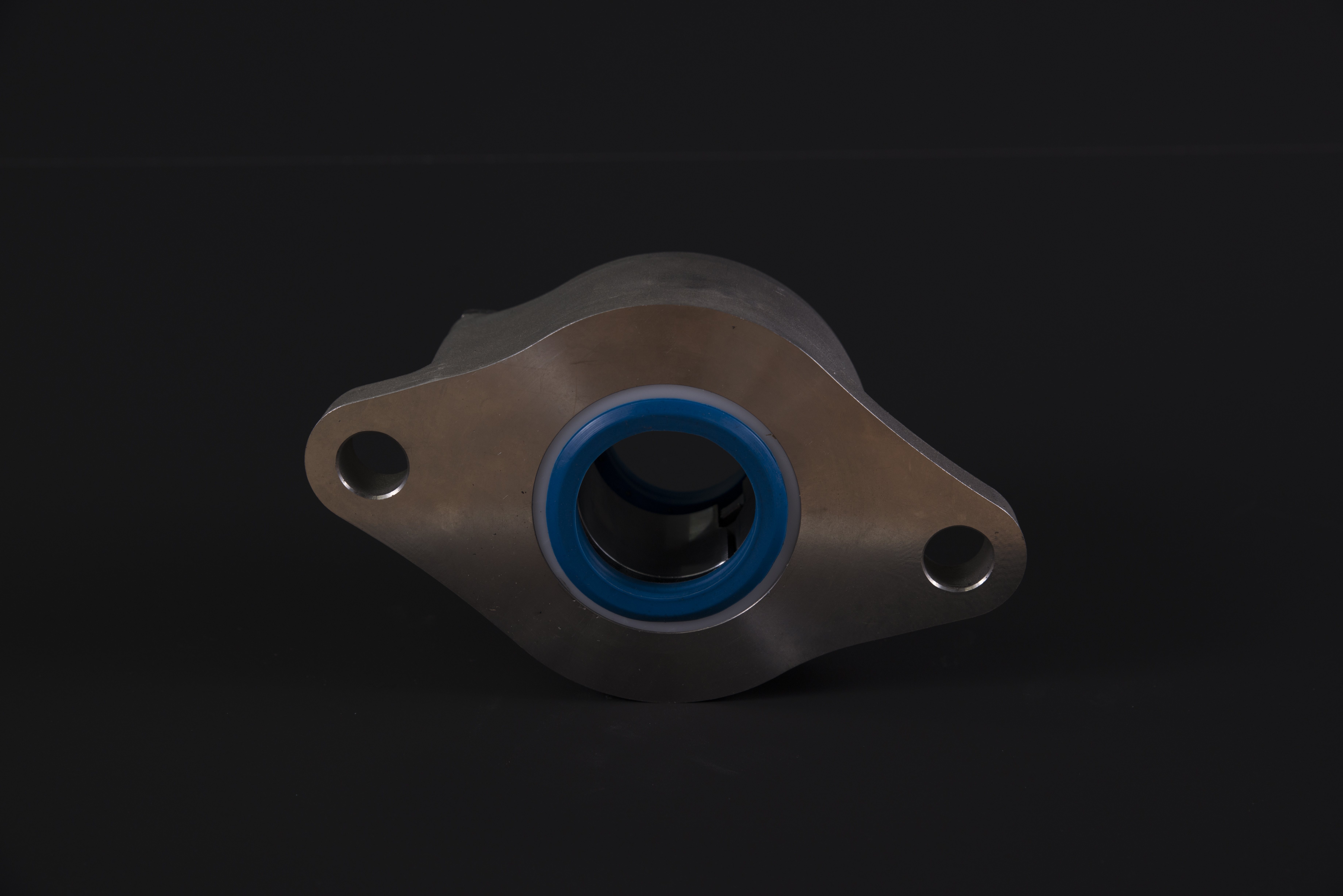

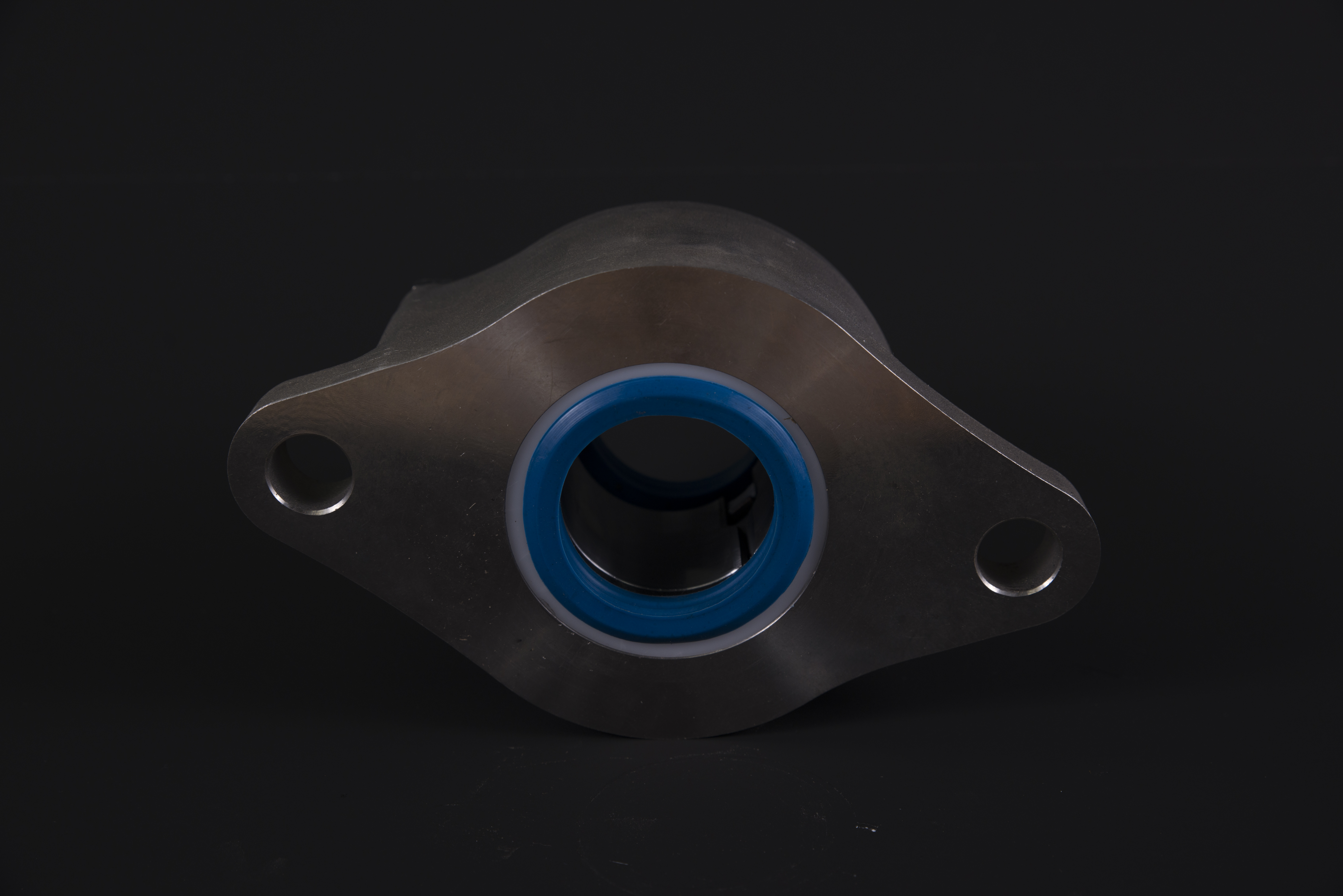

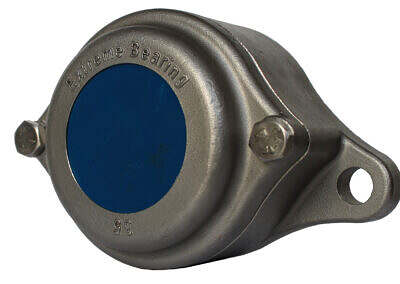

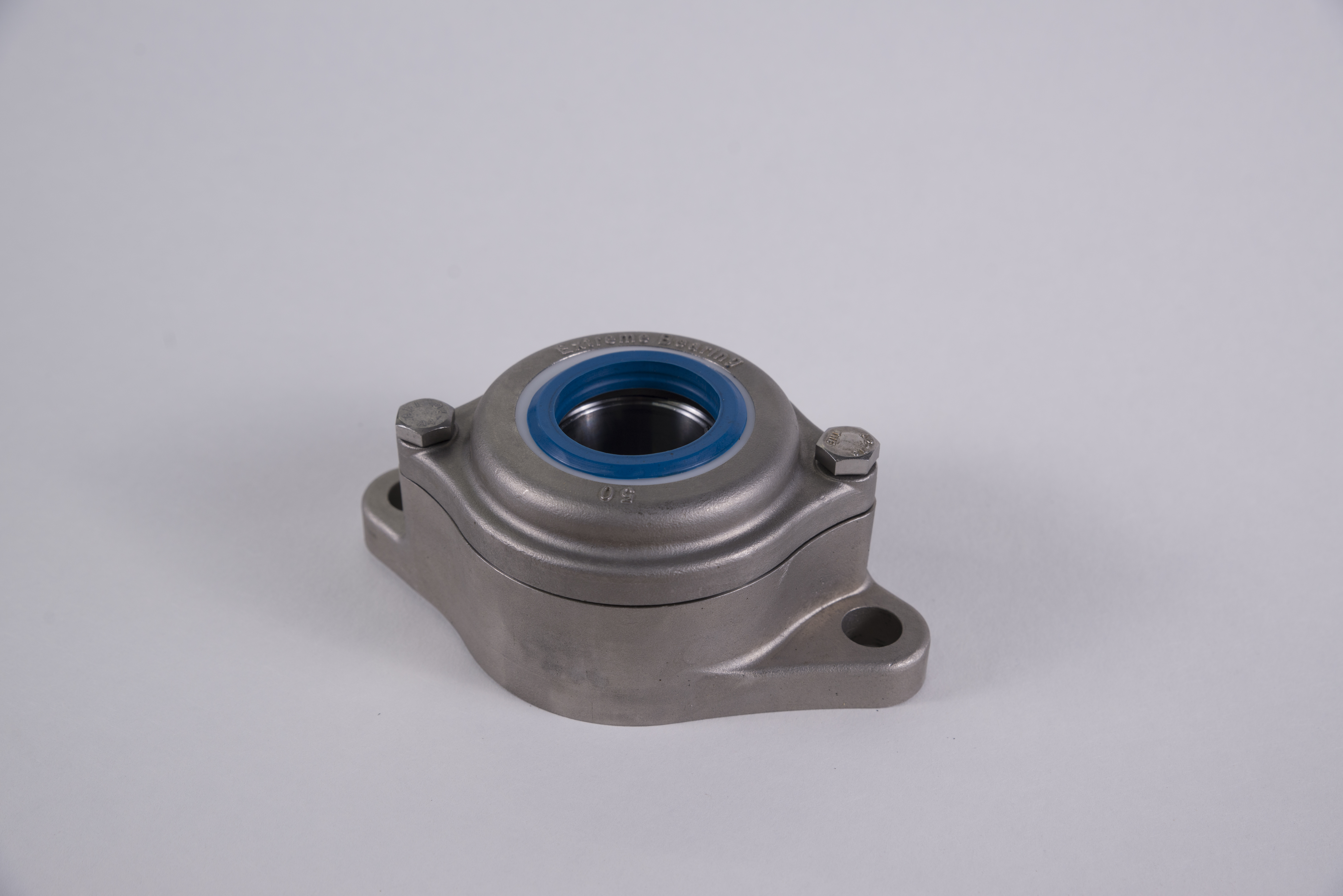

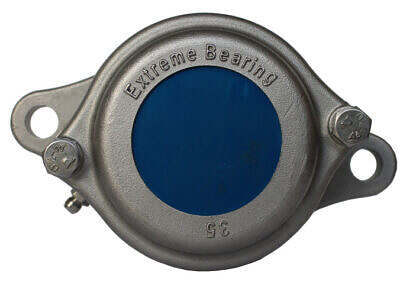

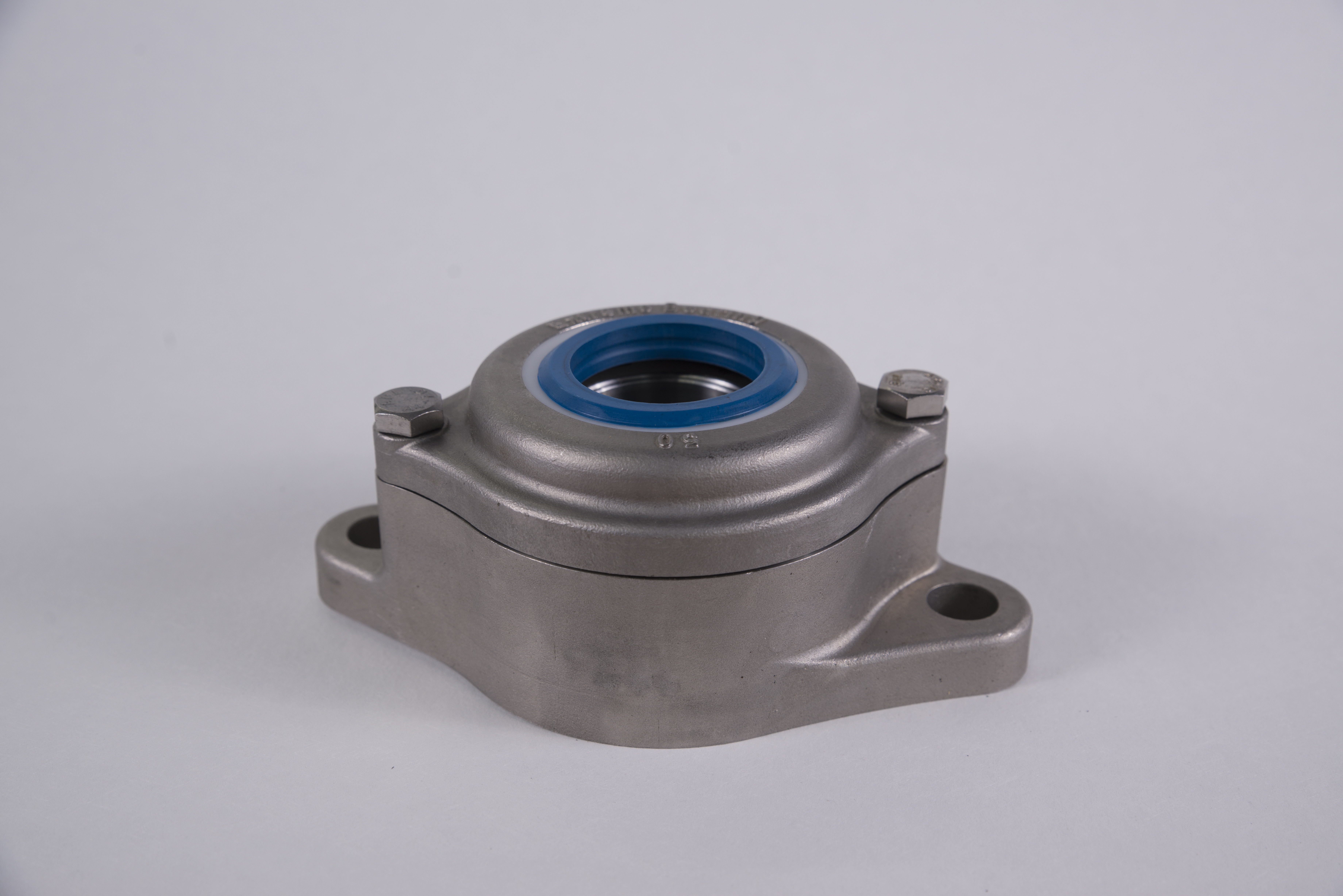

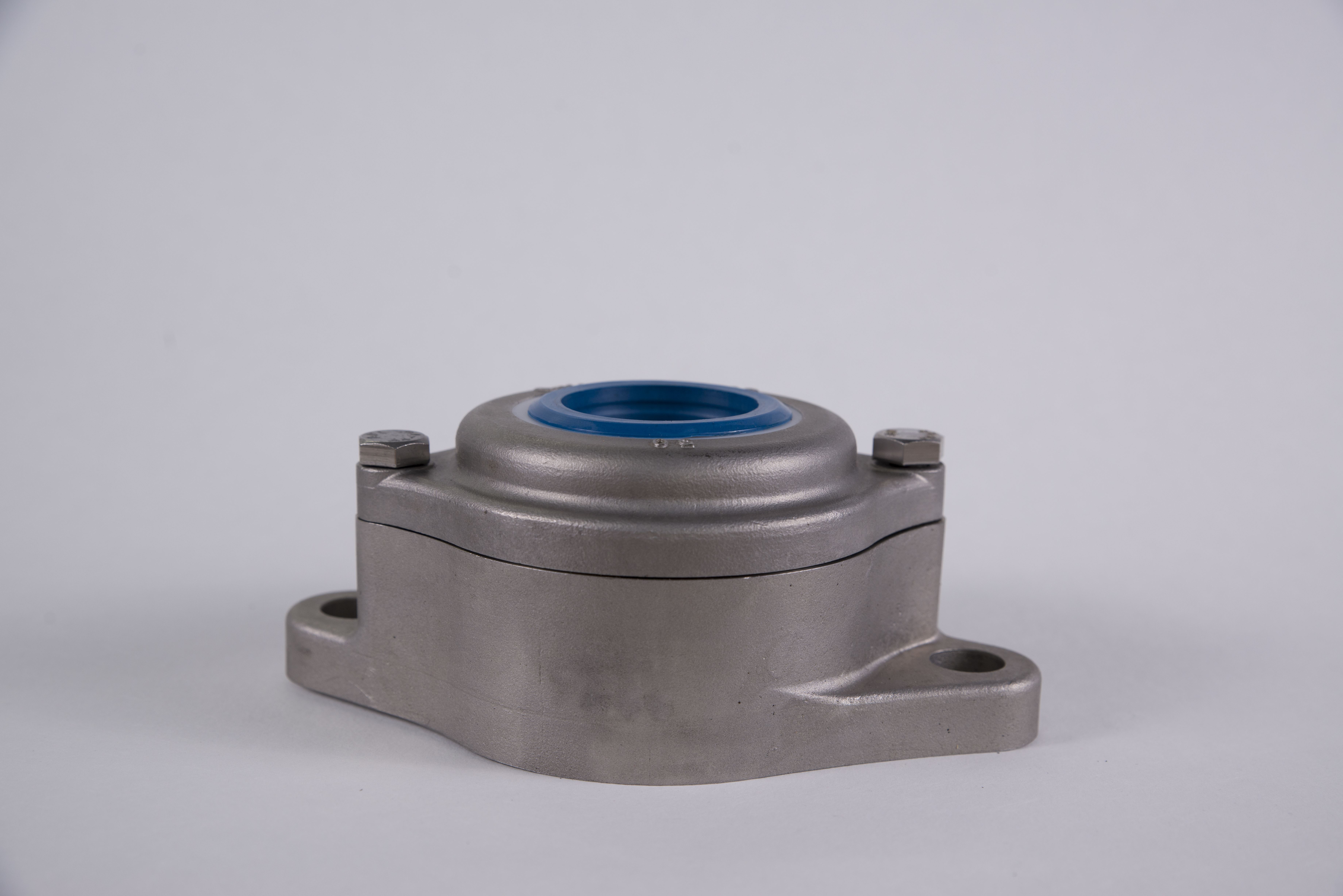

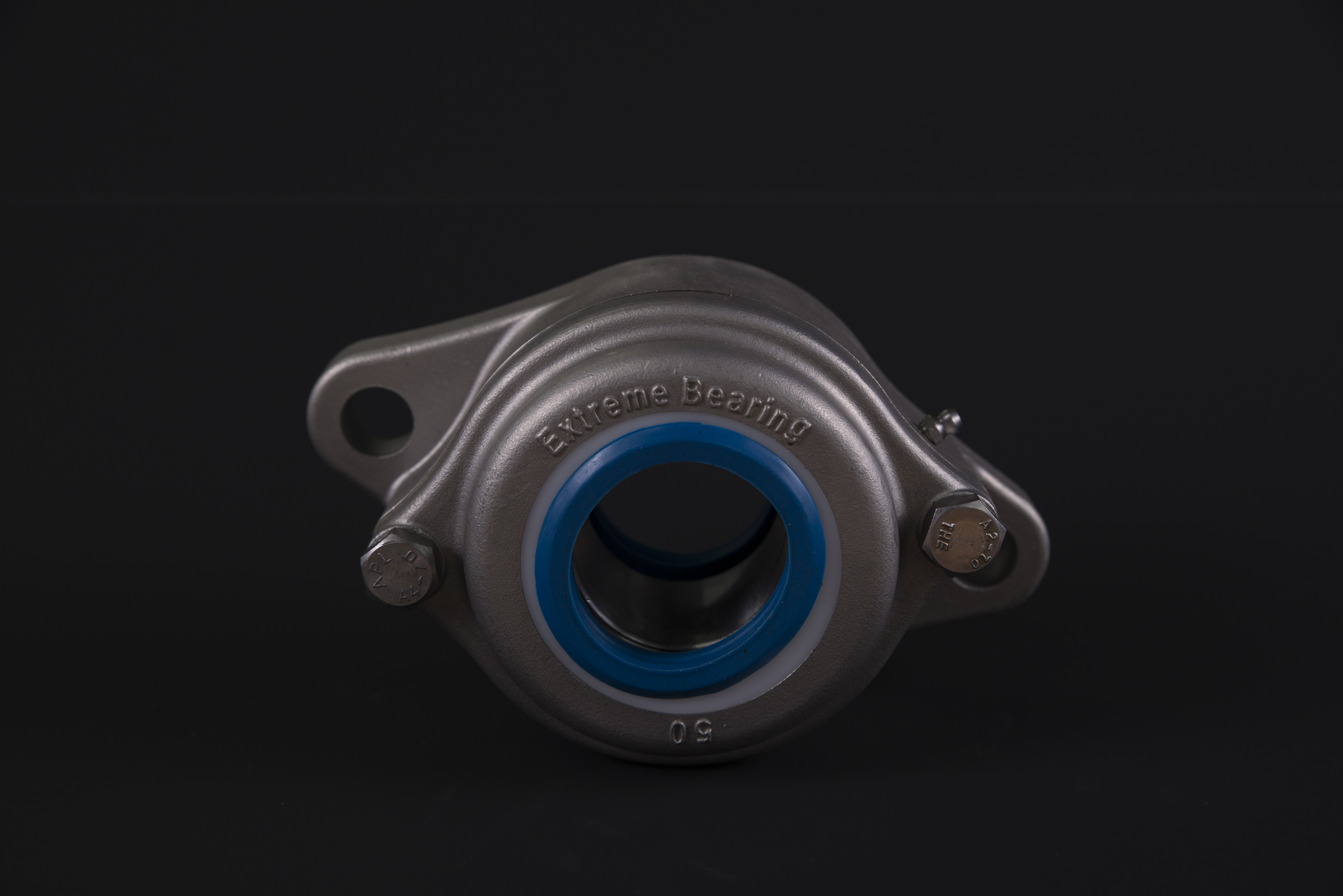

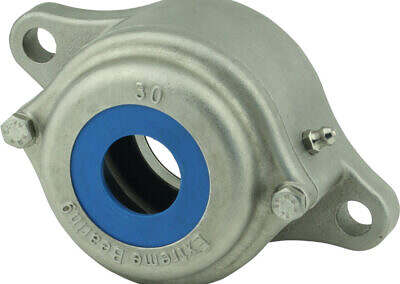

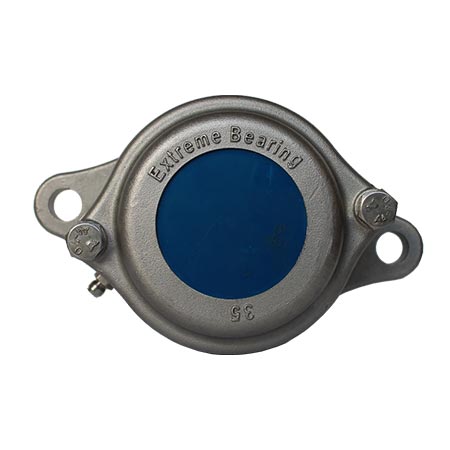

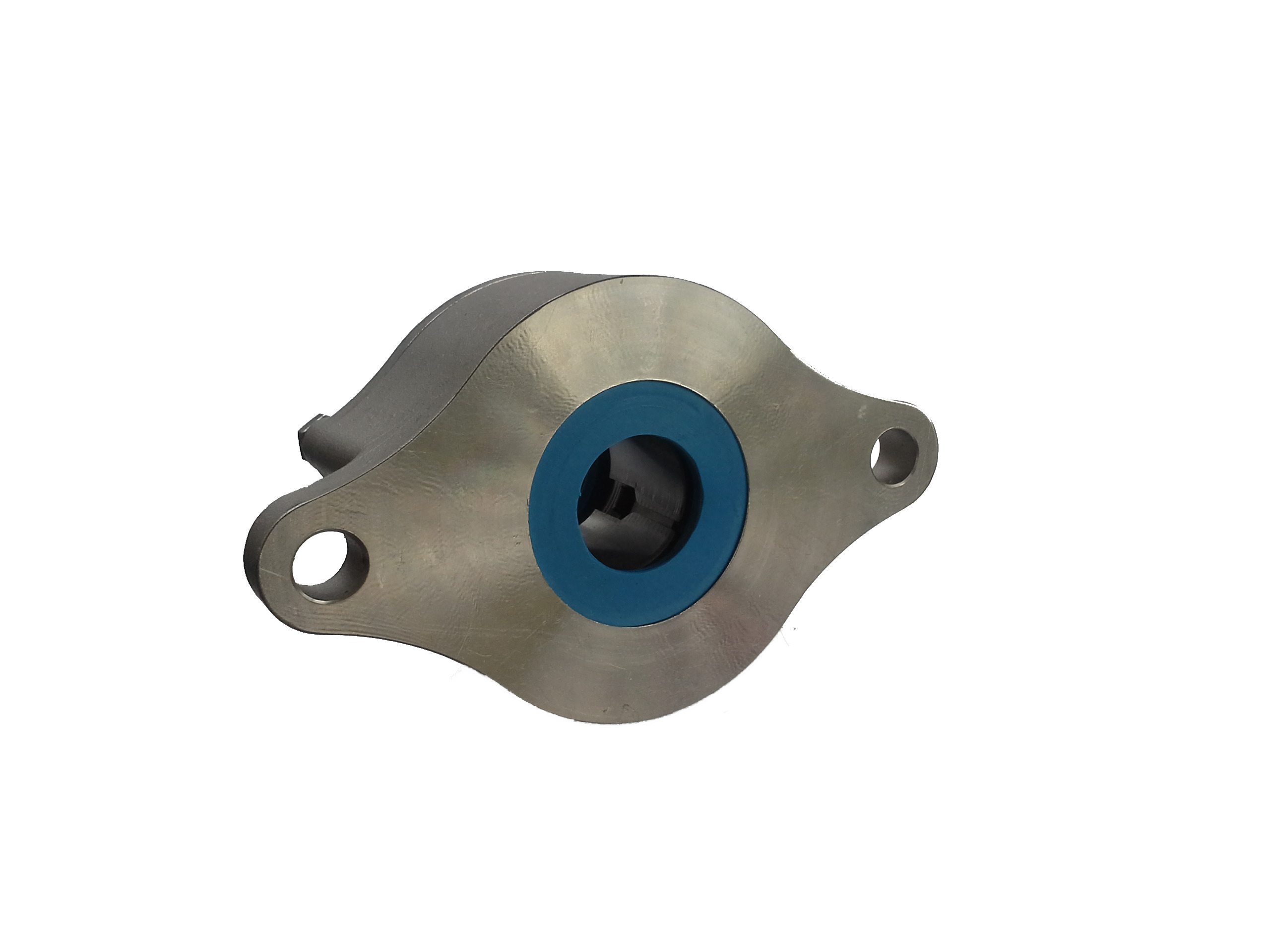

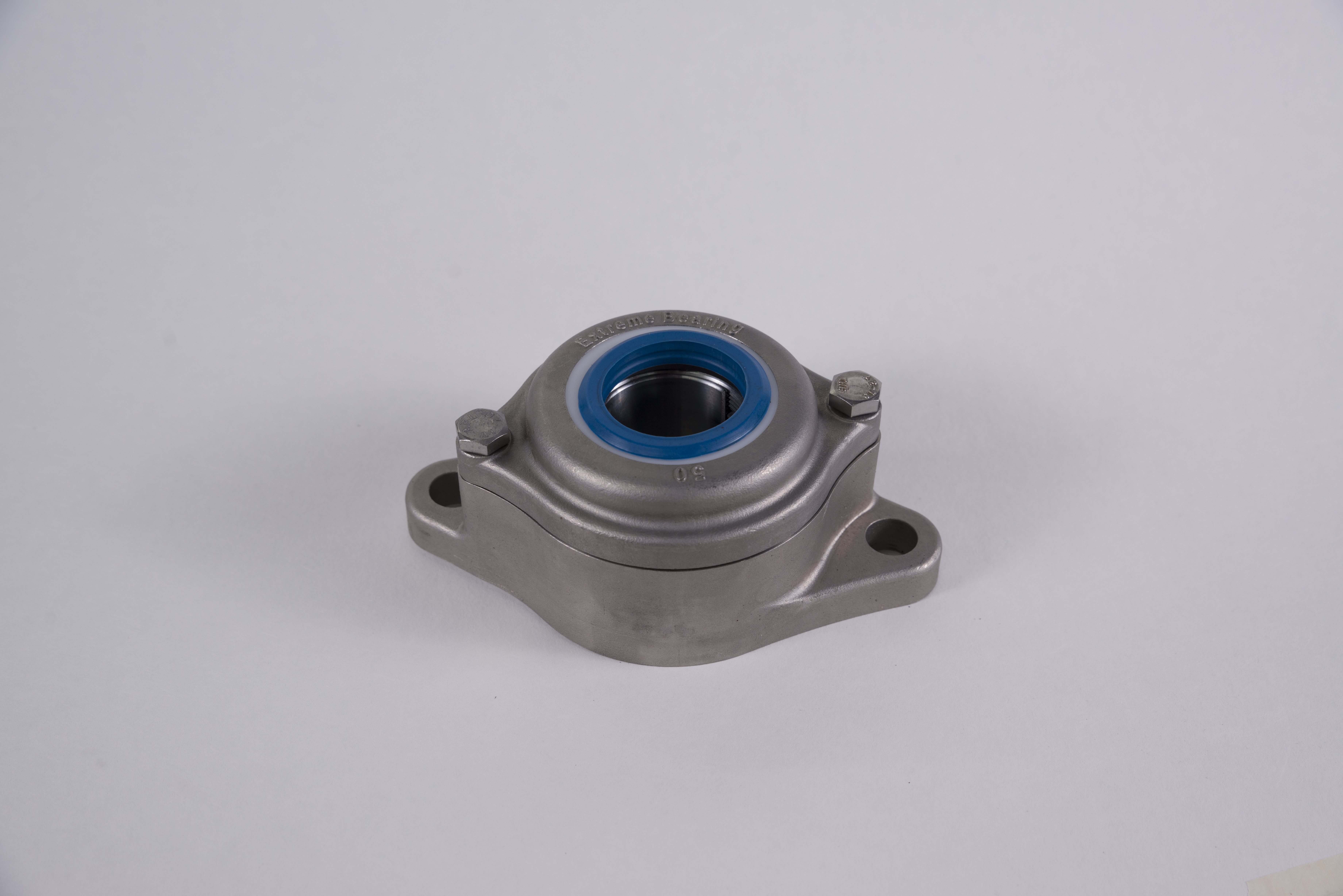

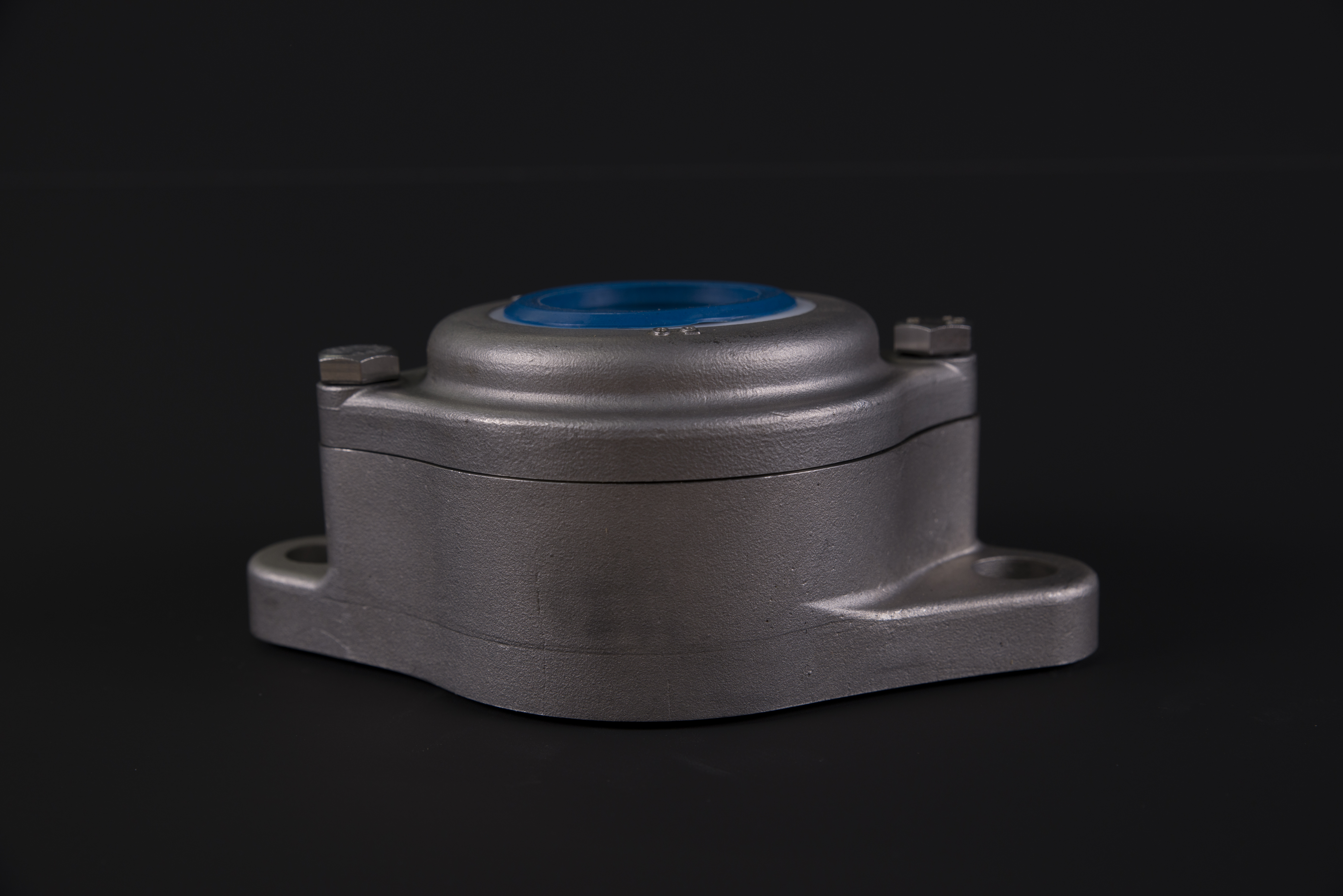

316 stainless steel 2-bolt flange bearing
The oval/diamond-shaped flange housing is lighter in weight, making it ideal for slim frames, tube structures, and small side plates, while still being suitable for heavy-duty applications. It is well suited when you need a compact and simpler solution for lighter applications.

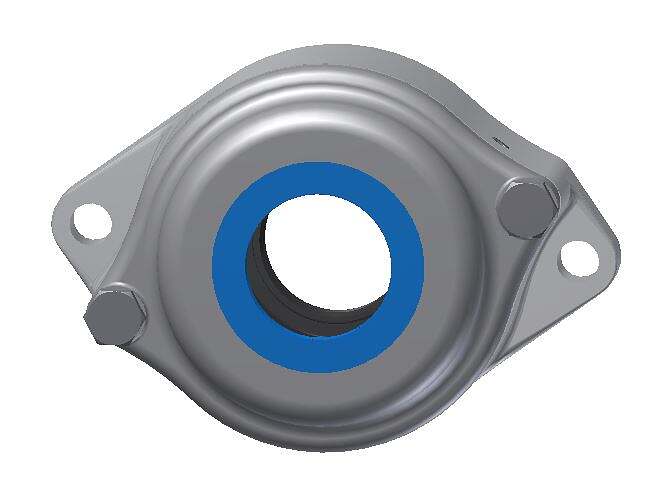

View the EXW 2-bolt round flange housing in 3D
Explore the stainless steel 316 EXW 2-bolt round flange housing in an interactive 3D environment. You can rotate, zoom, and measure the model directly to gain a clear understanding of the housing dimensions and design features.

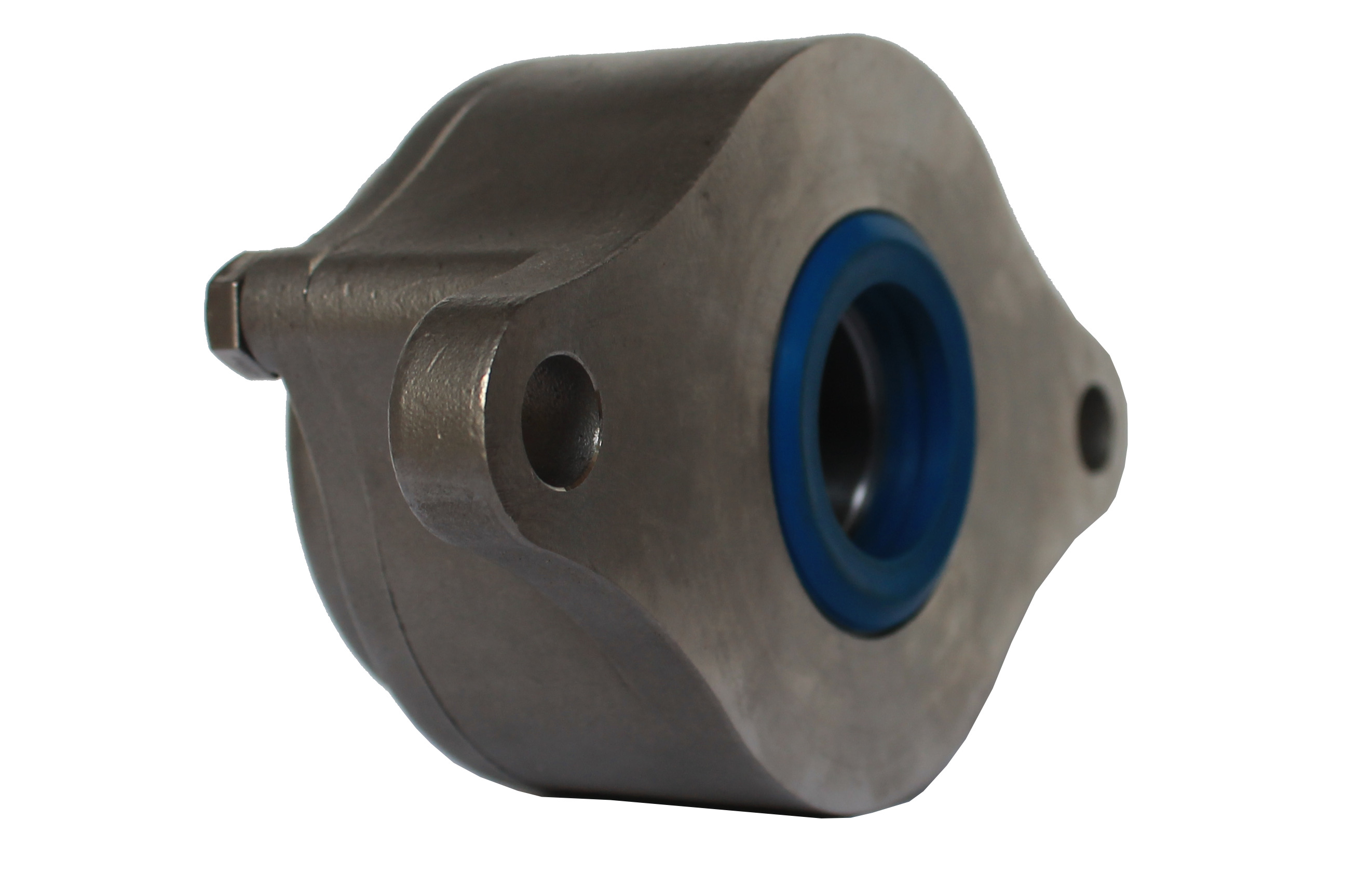

EXW housing (left) has a more elongated shape in comparison to the more compact EXR (right) housing.

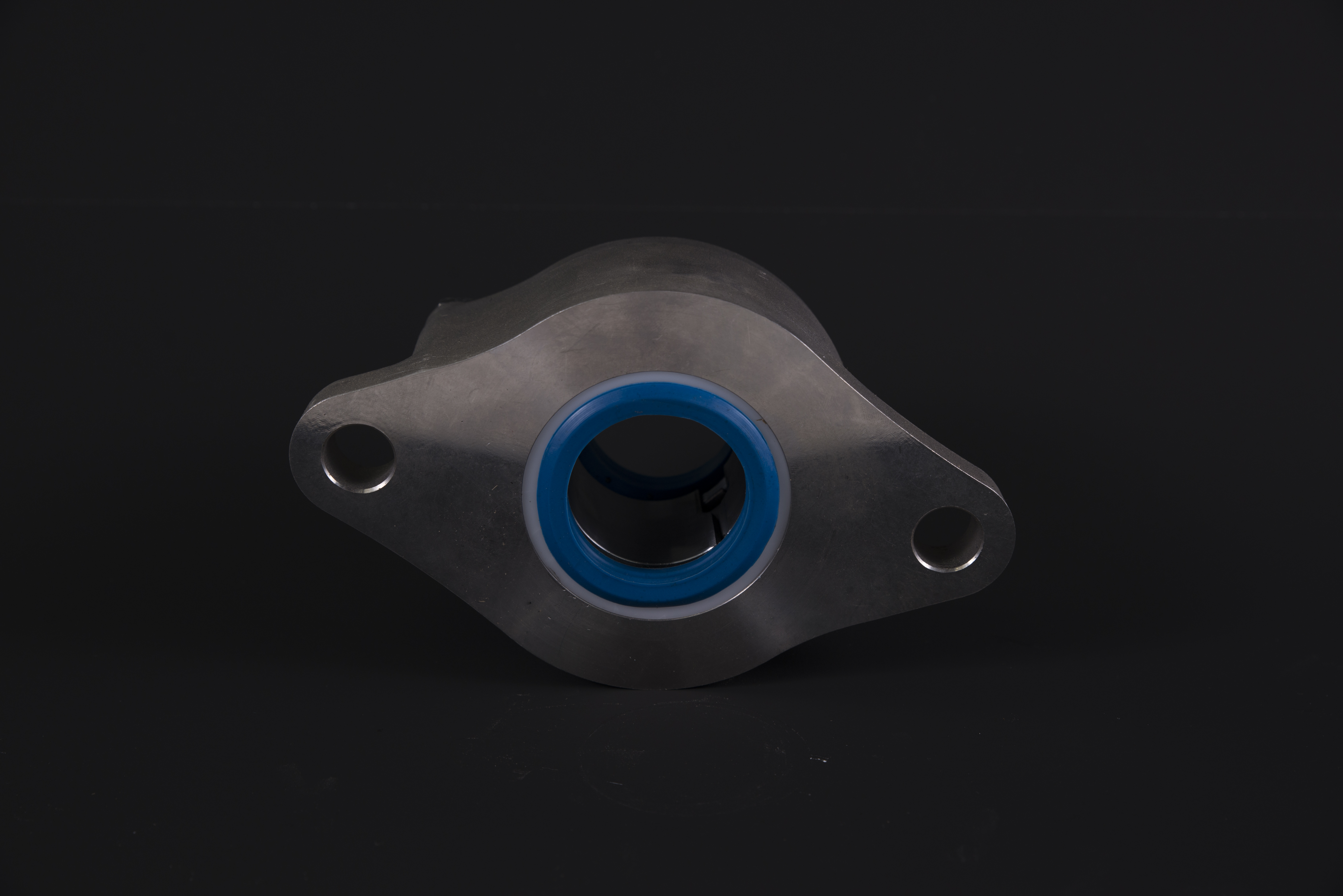

Discover our exceptional sealing options
Configurable sealing solutions protect the bearing against water, dust, dirt, and other contaminants — for washdown, submerged, and abrasive applications.
Technical Datasheet
EXW – Stainless Steel 316 2-Bolt Round Flange Housing
Technical Specifications
| Specification | Description |
|---|---|
| Product | Stainless Steel 316 2-Bolt Round Flange Housing |
| Type | EXW |
| Mounting style | 2-bolt oval/diamond flange |
| Shaft sizes | 25 mm – 60 mm, including standard inch sizes |
| Design | Elongated oval shape; lighter in weight than 4-bolt flanges, ideal for slim frames and tube structures |
| Housing material | Stainless Steel 316 (AISI 316 / UNS S31600) |
| Construction | Heavy duty |
| Application | Industrial machinery |
| Configuration | Extreme Bearing Product Chooser |
| Target market | OEMs, Machine Builders & System Integrators |
EXW 2-Bolt Round Flange Housing Dimensions and Mounting Specifications
Load Directions for the EXW 2-Bolt Round Flange Housing
Extreme Bearing units are intended for loads acting vertically towards the base plate support. Therefore, if the bearing housing is supported over its entire base, loads are limited only by the load limits of the bearing insert. If loads acting in other directions occur or if the housing is not supported over its entire base area, check that the magnitude of the load is permissible for the bolt assembly attached to the machine frame.

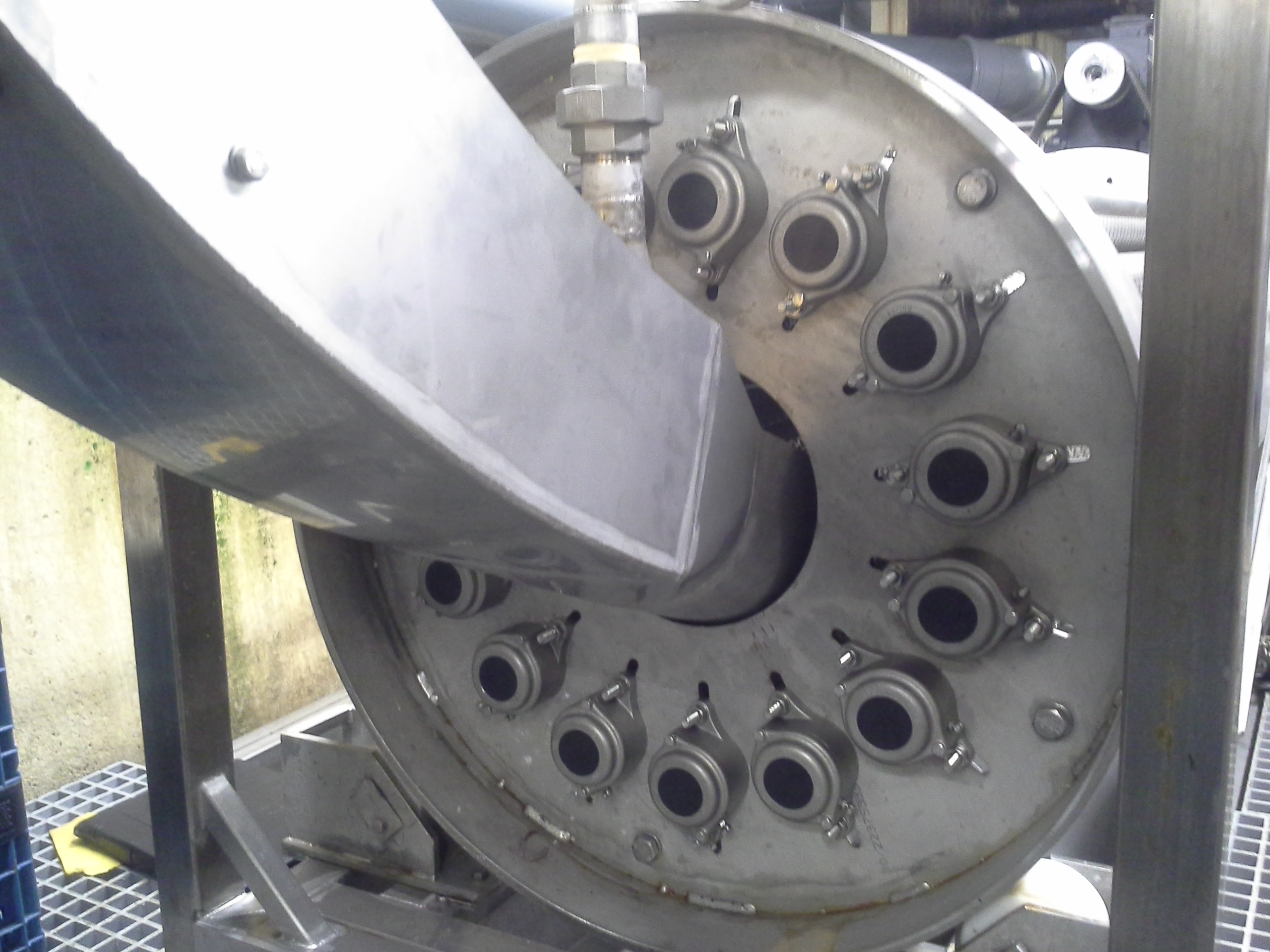

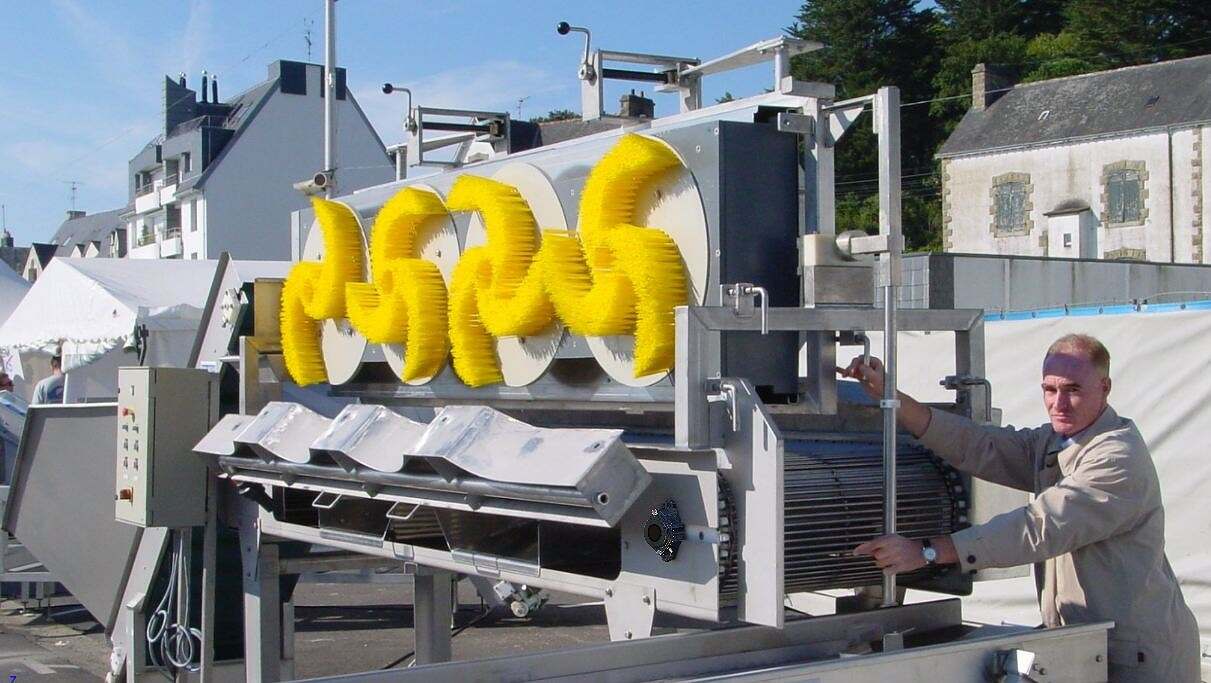

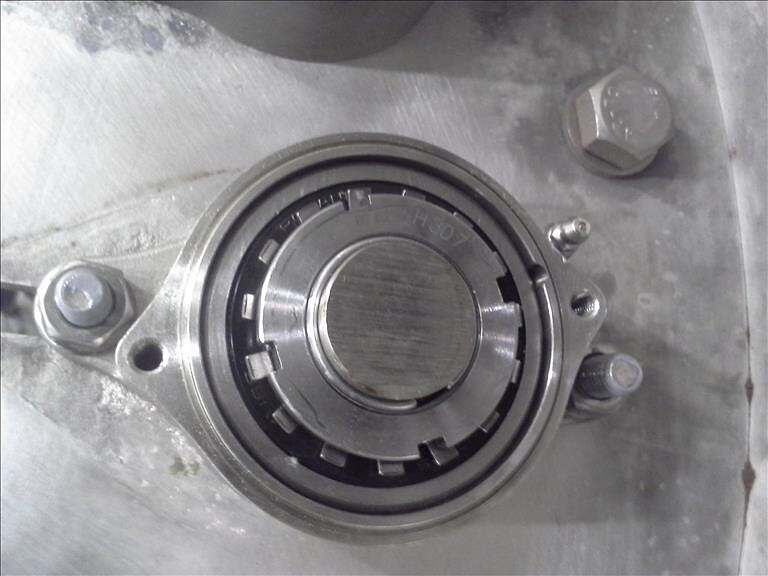

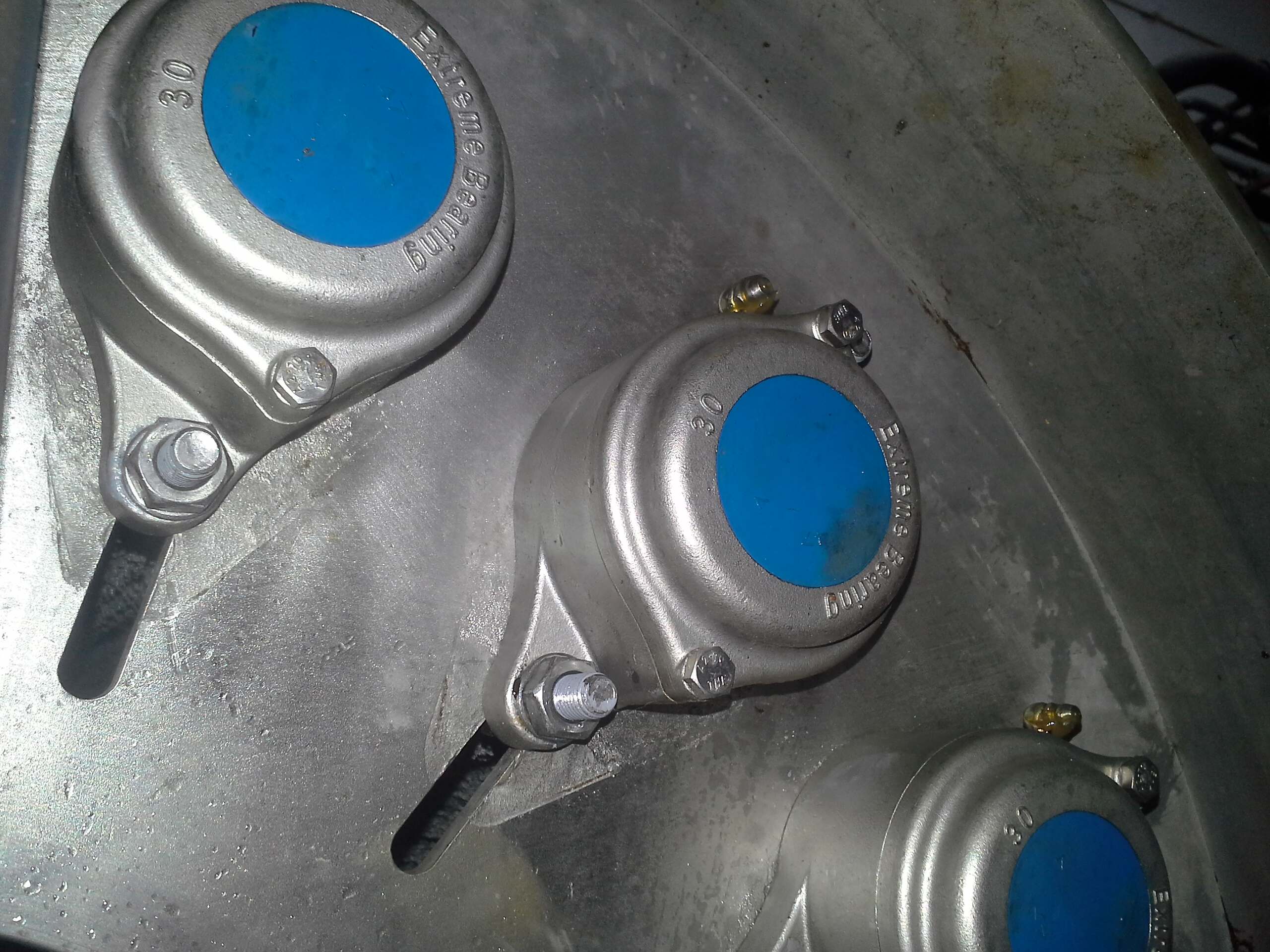

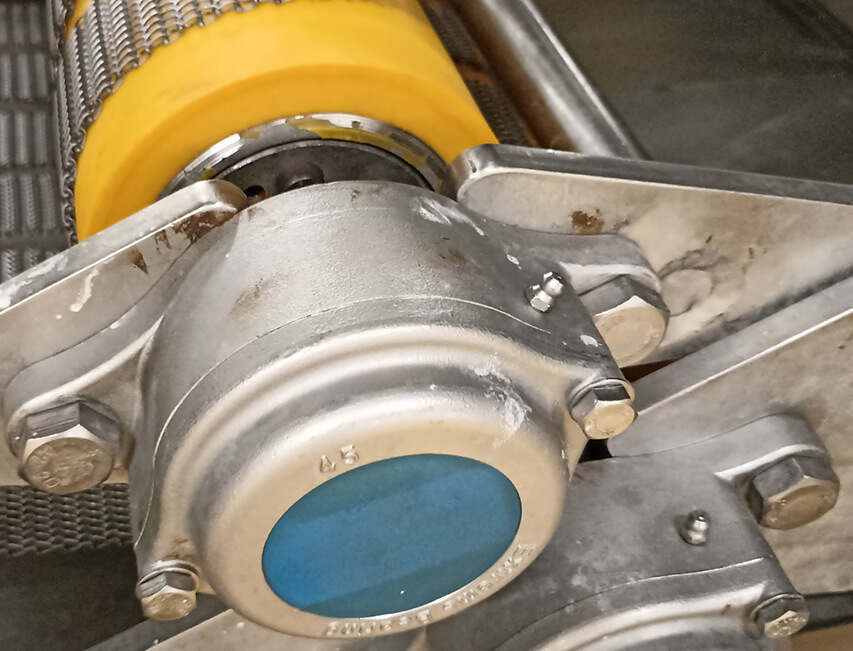

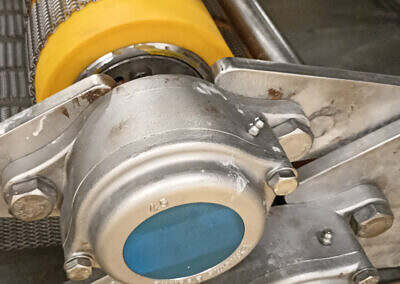

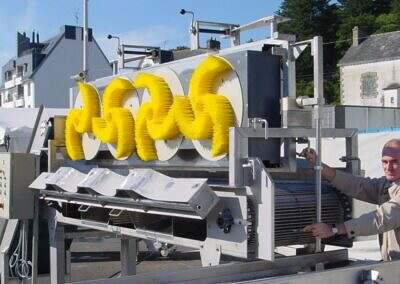

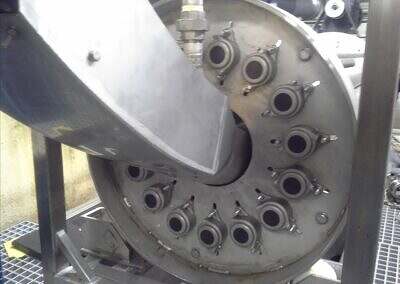

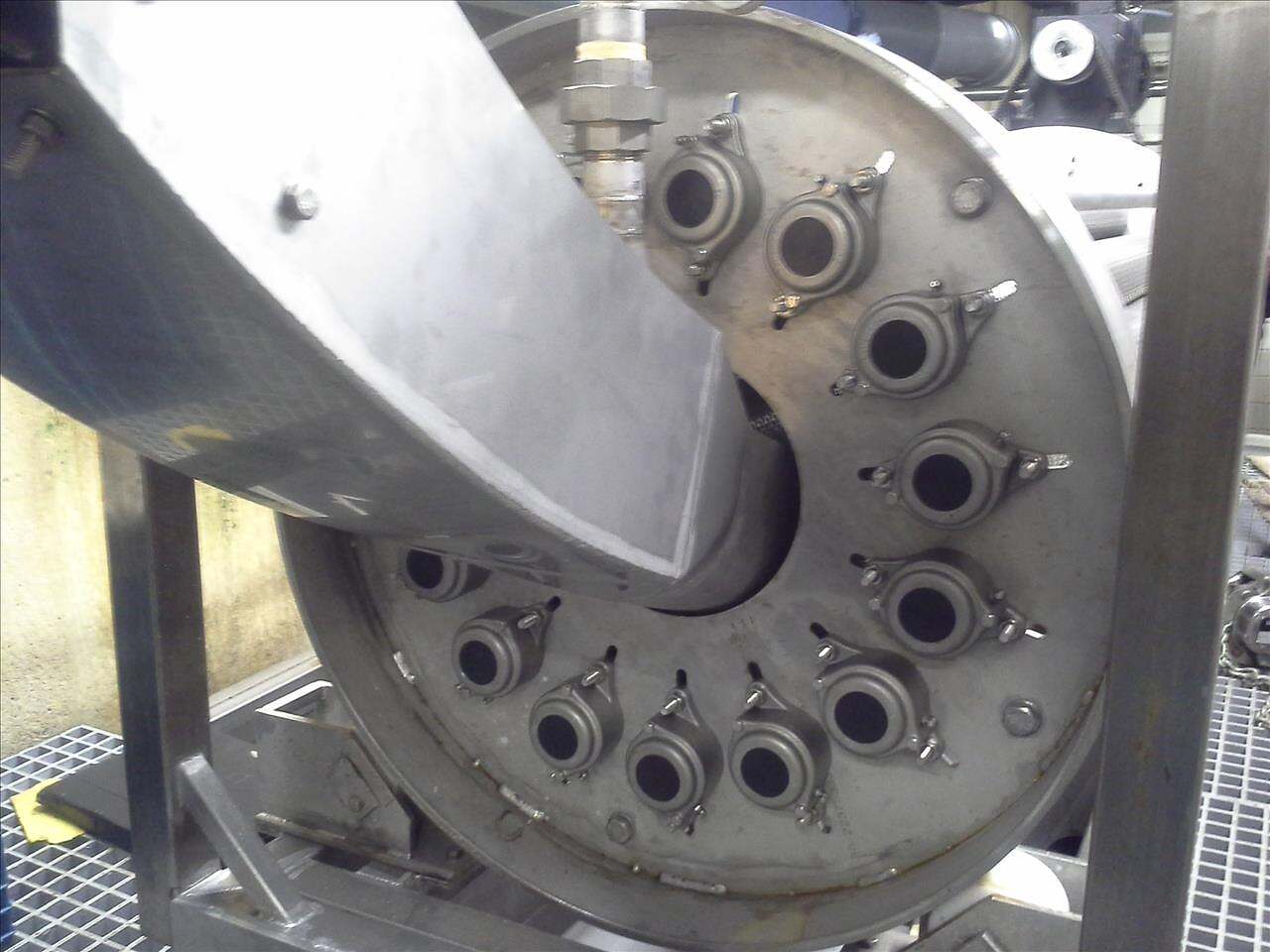

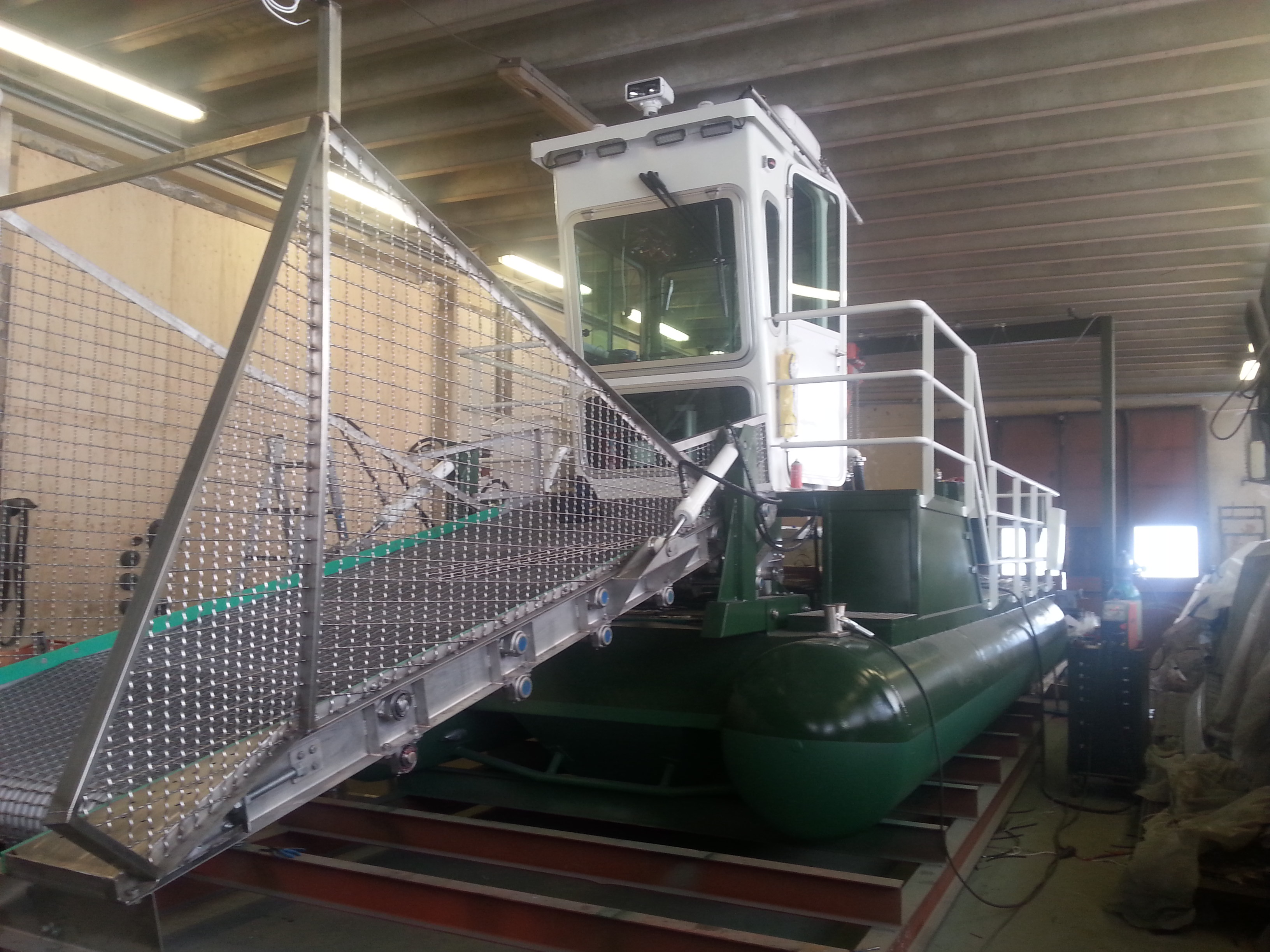

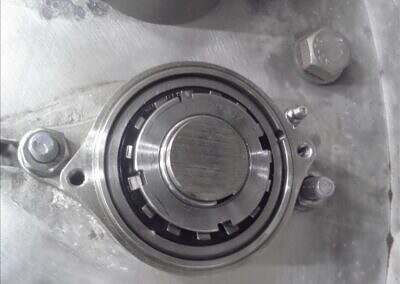

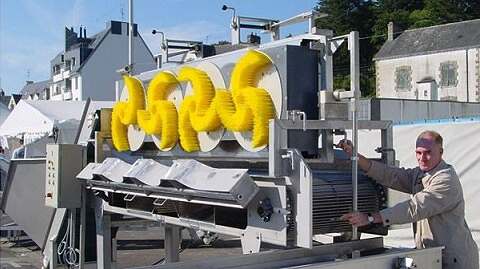

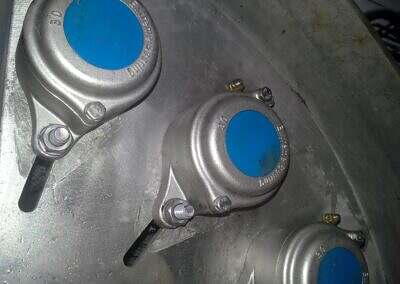

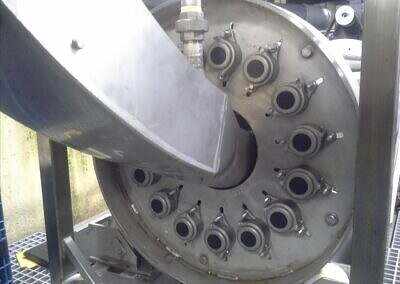

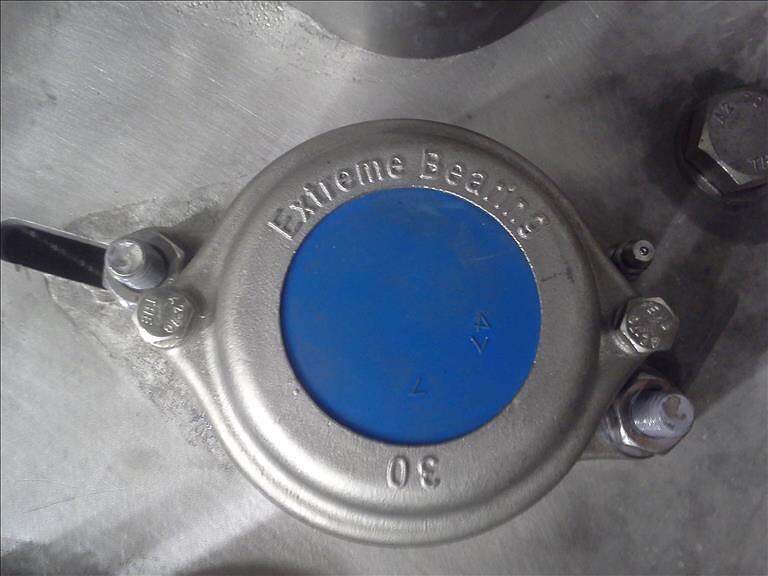

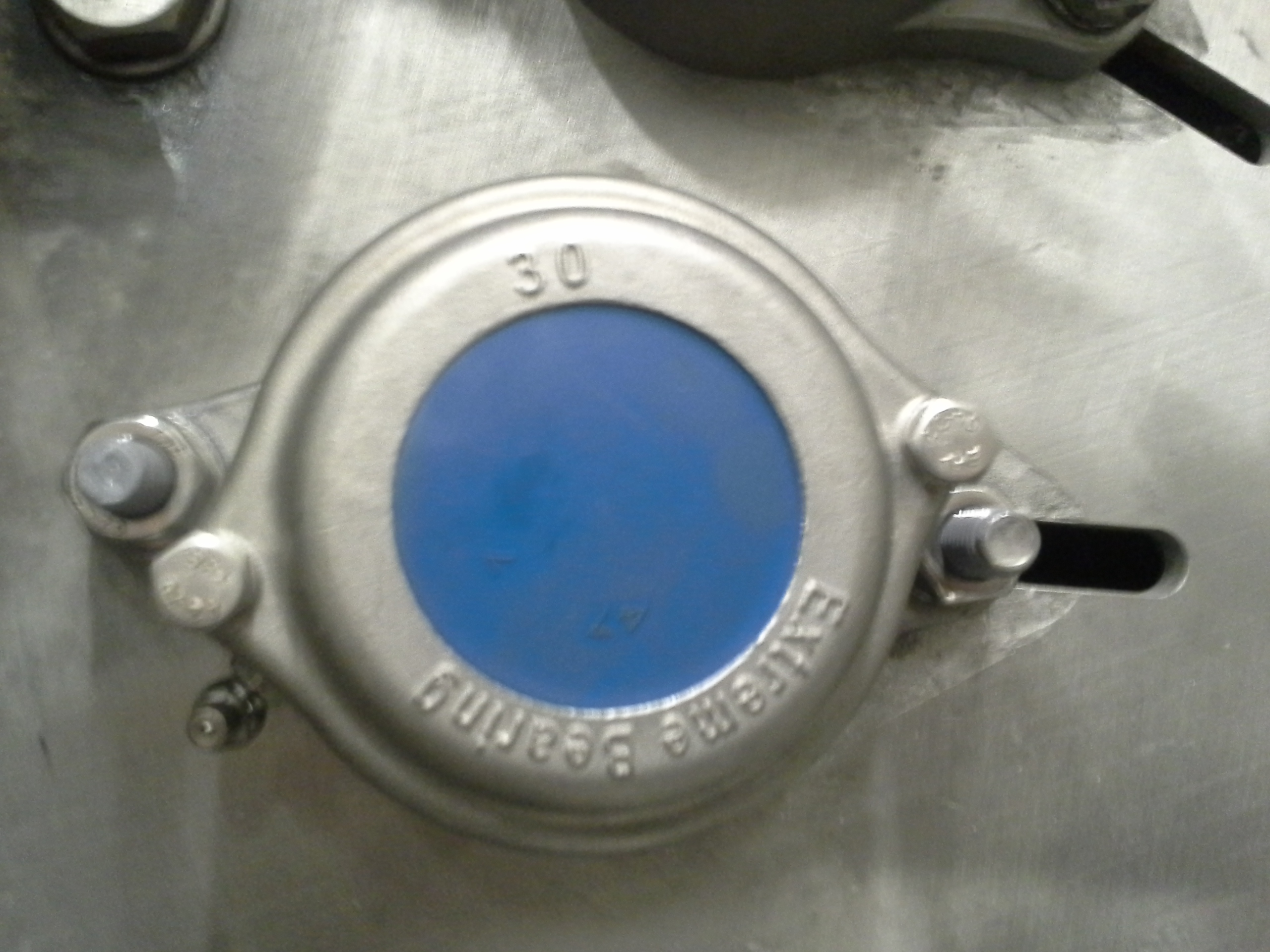

Bearing the unbearable — a look into the world of Extreme Bearing Type EXW applications.
Ready to build your bearing assembly?
Configure your stainless steel 316 EXW 2-bolt round flange housing in the Product Chooser and download the Technical Datasheet (PDF) and 3D STEP model instantly.
