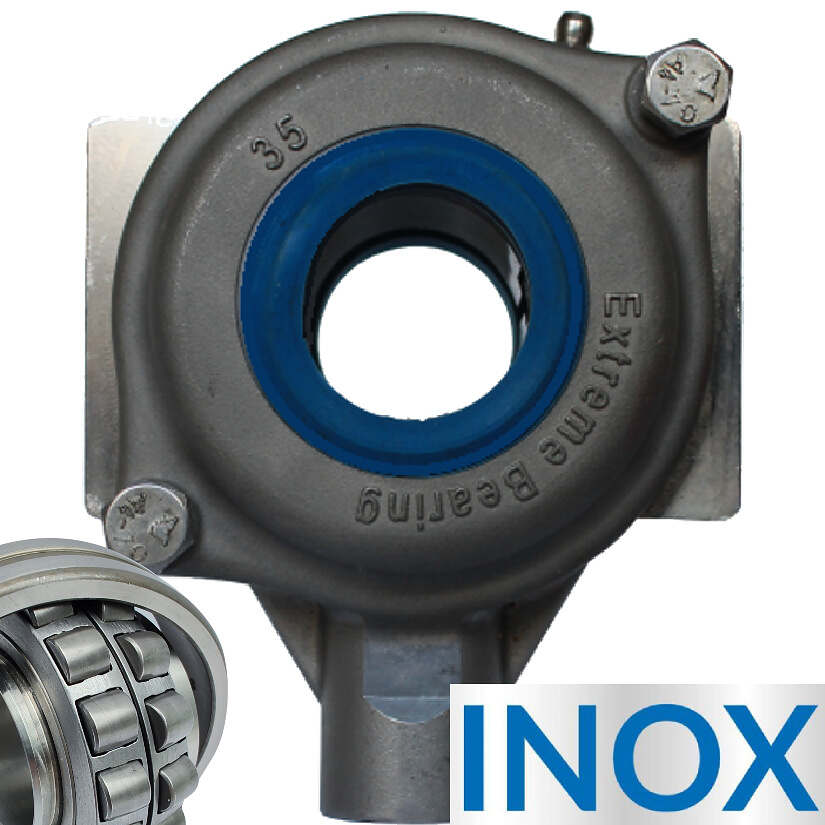

SS-316 Take-Up Double Roller Bearing Units

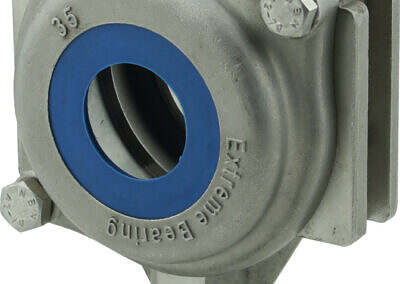

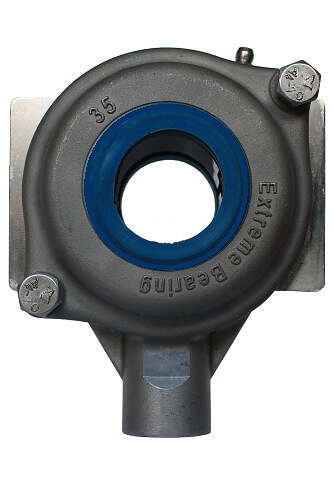

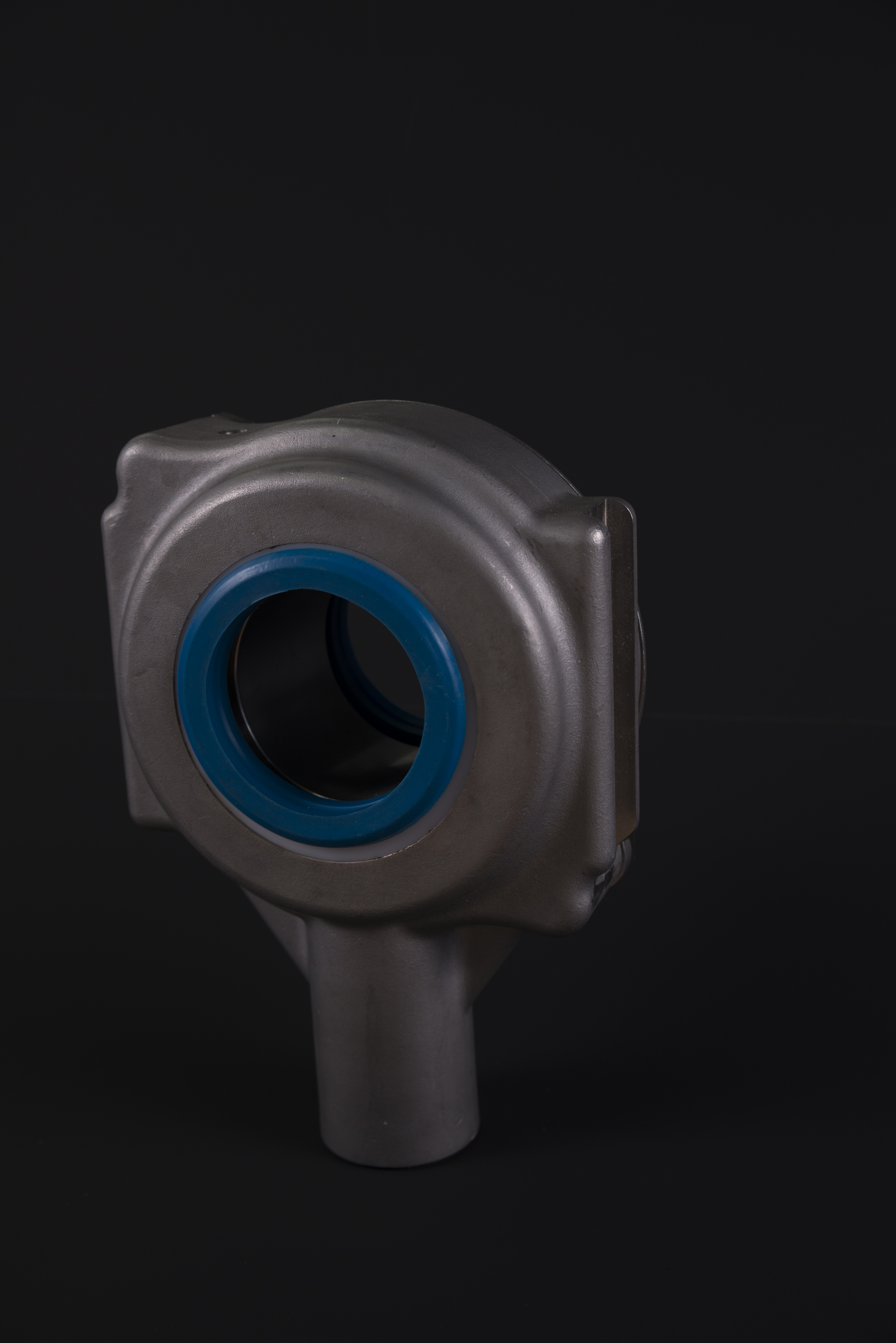

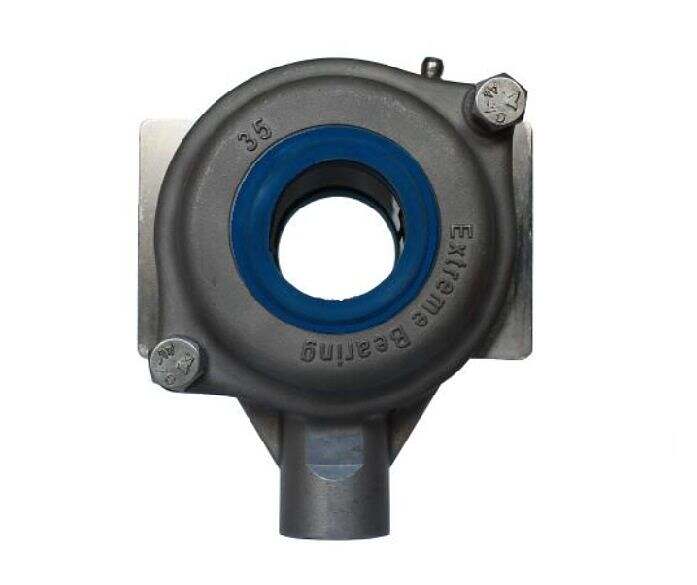

316 stainless steel take-up bearing unit
- 5× higher load capacity
- Chemical resistance
- Very well sealed with labyrinth seals

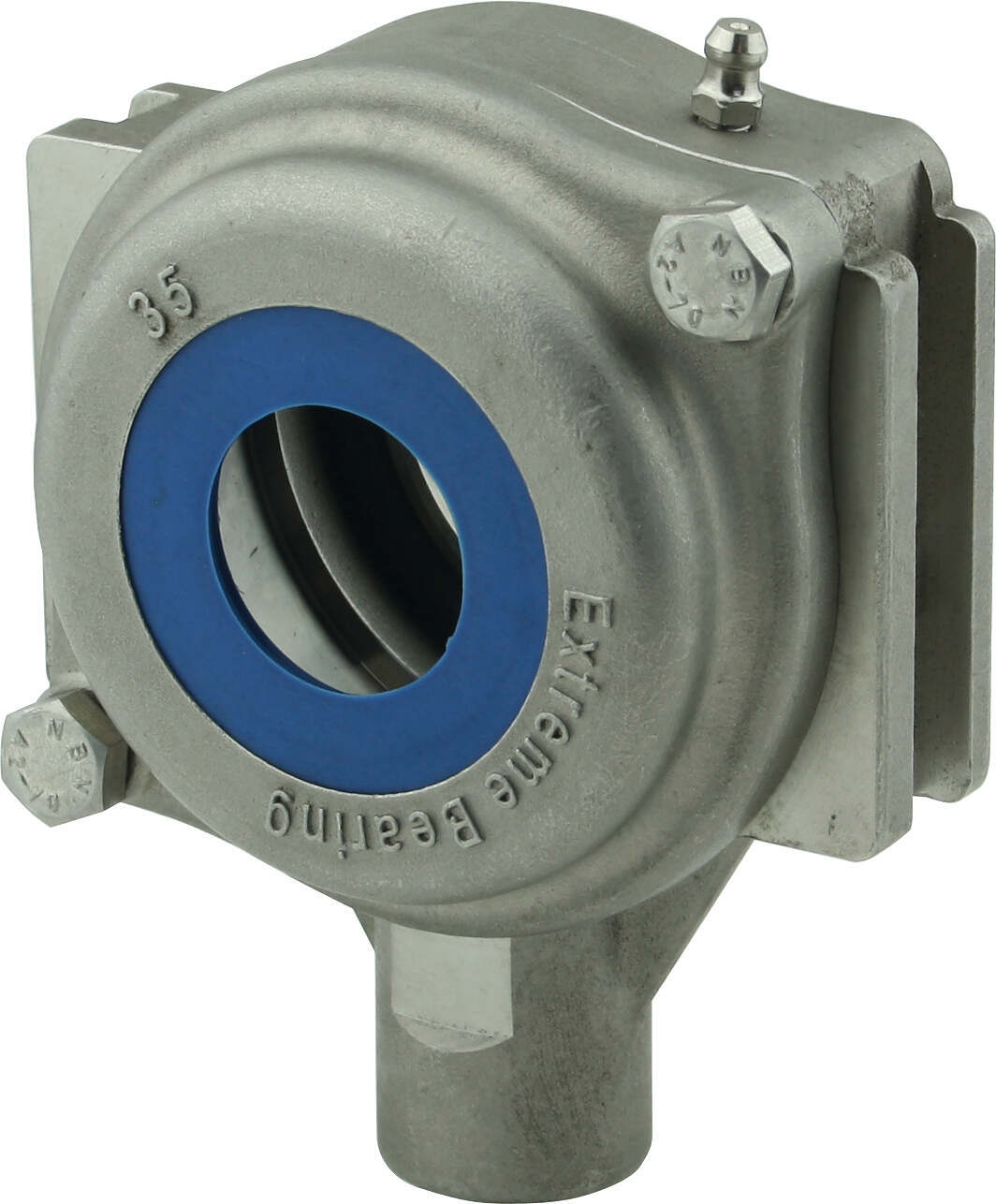

The EXT take-up bearing unit is made for heavy-duty applications and corrosive environments. It offers 5× higher load capacity due to the use of self-aligning double row ball bearings.
The screw take-up bearing housing is made of stainless steel grade 316 (UNS S31600), which is rustproof and resistant to corrosion from seawater — ideal for washdown applications in wet or harsh environments.

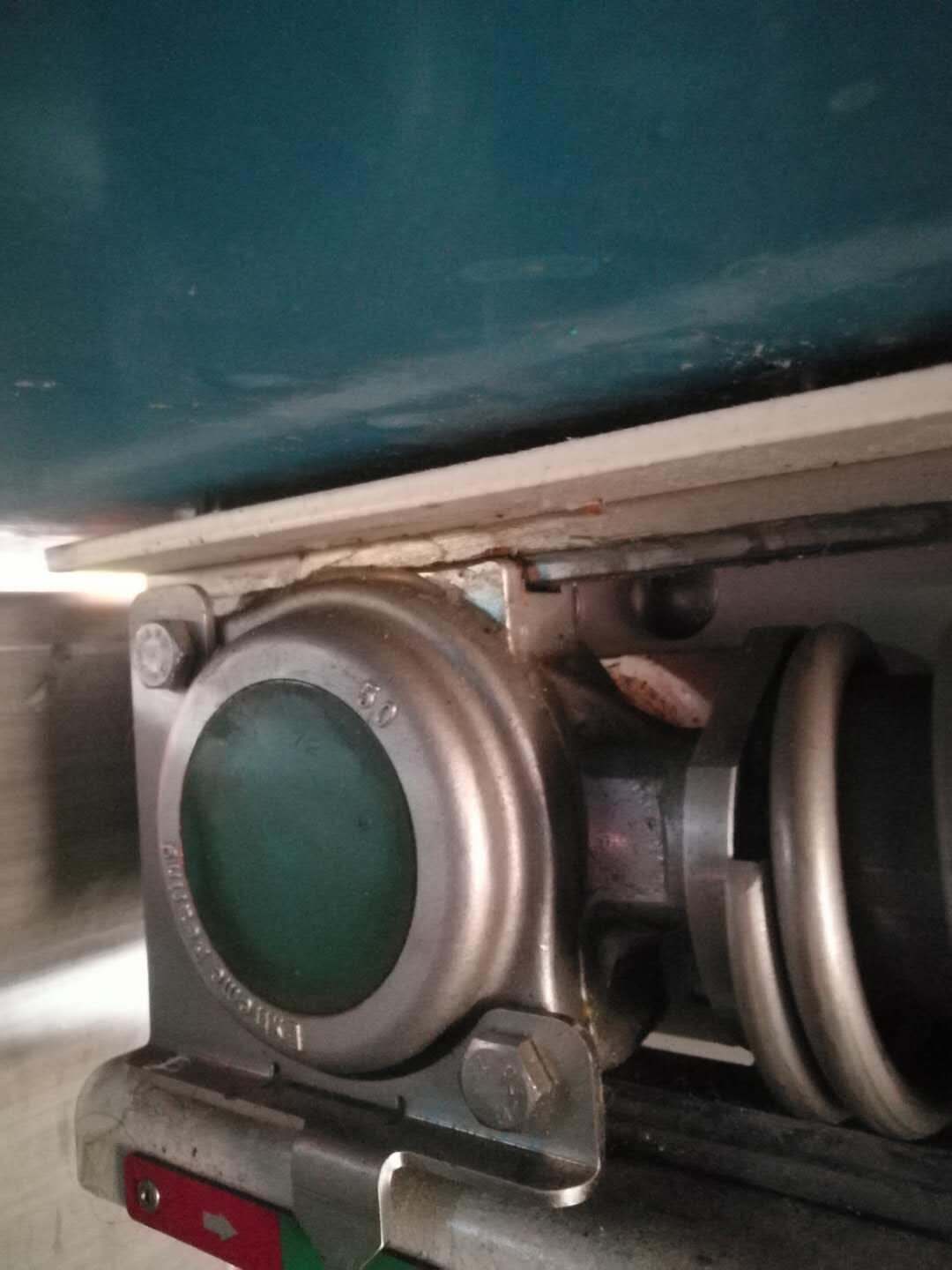

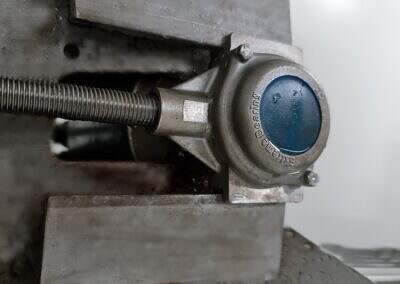

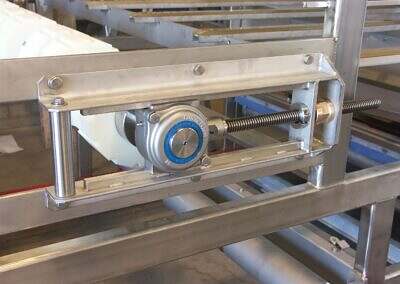

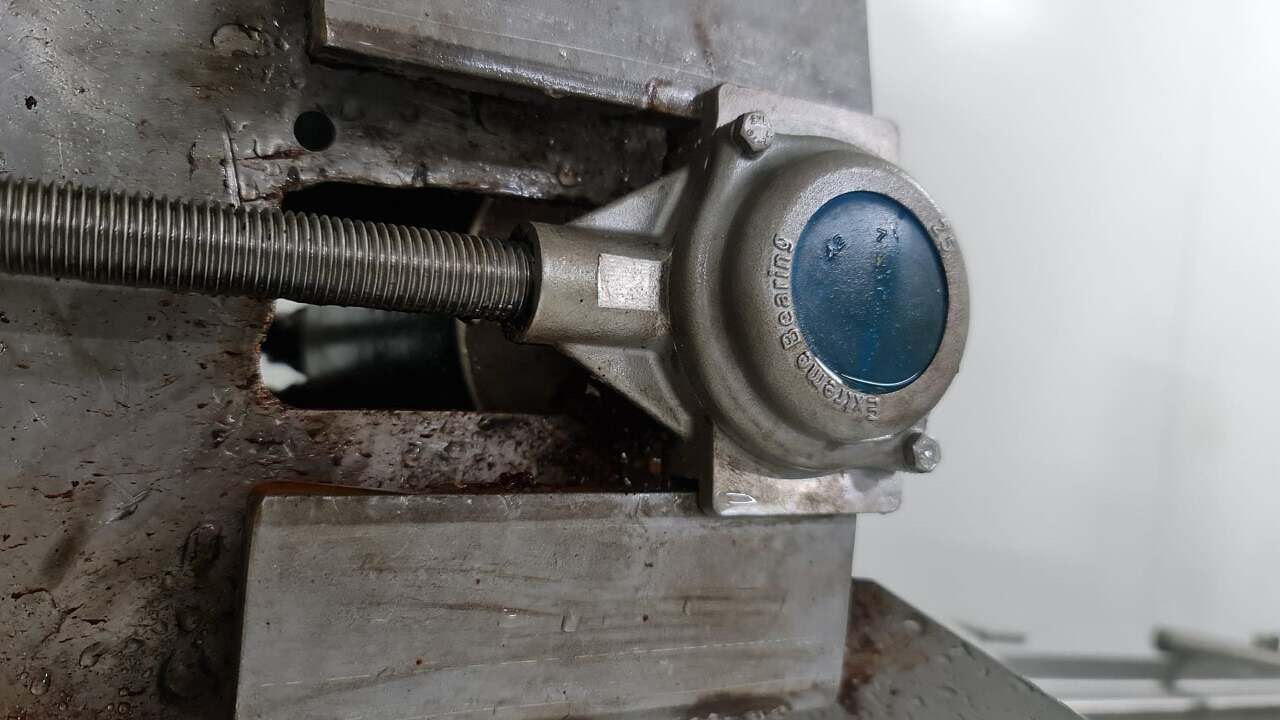

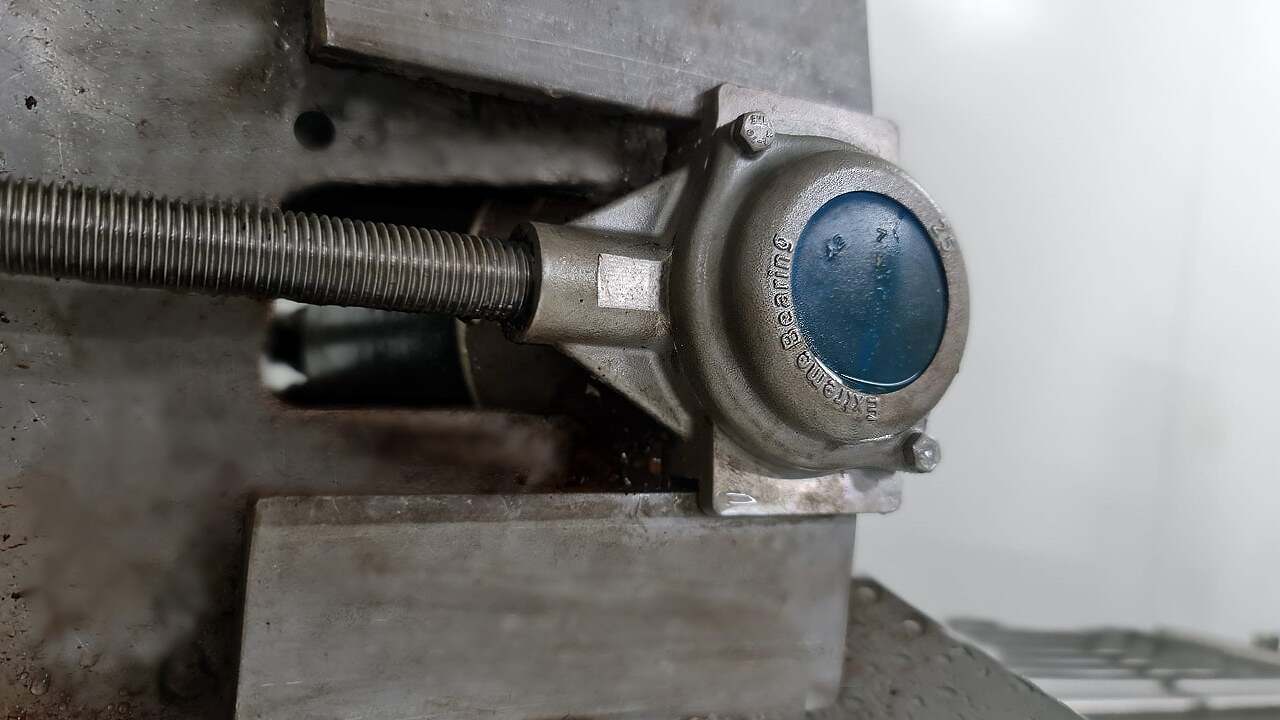

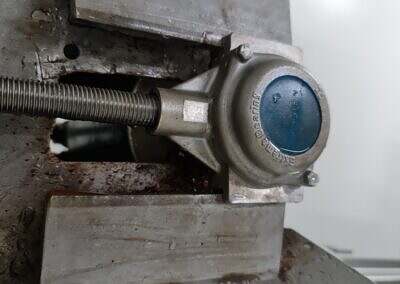

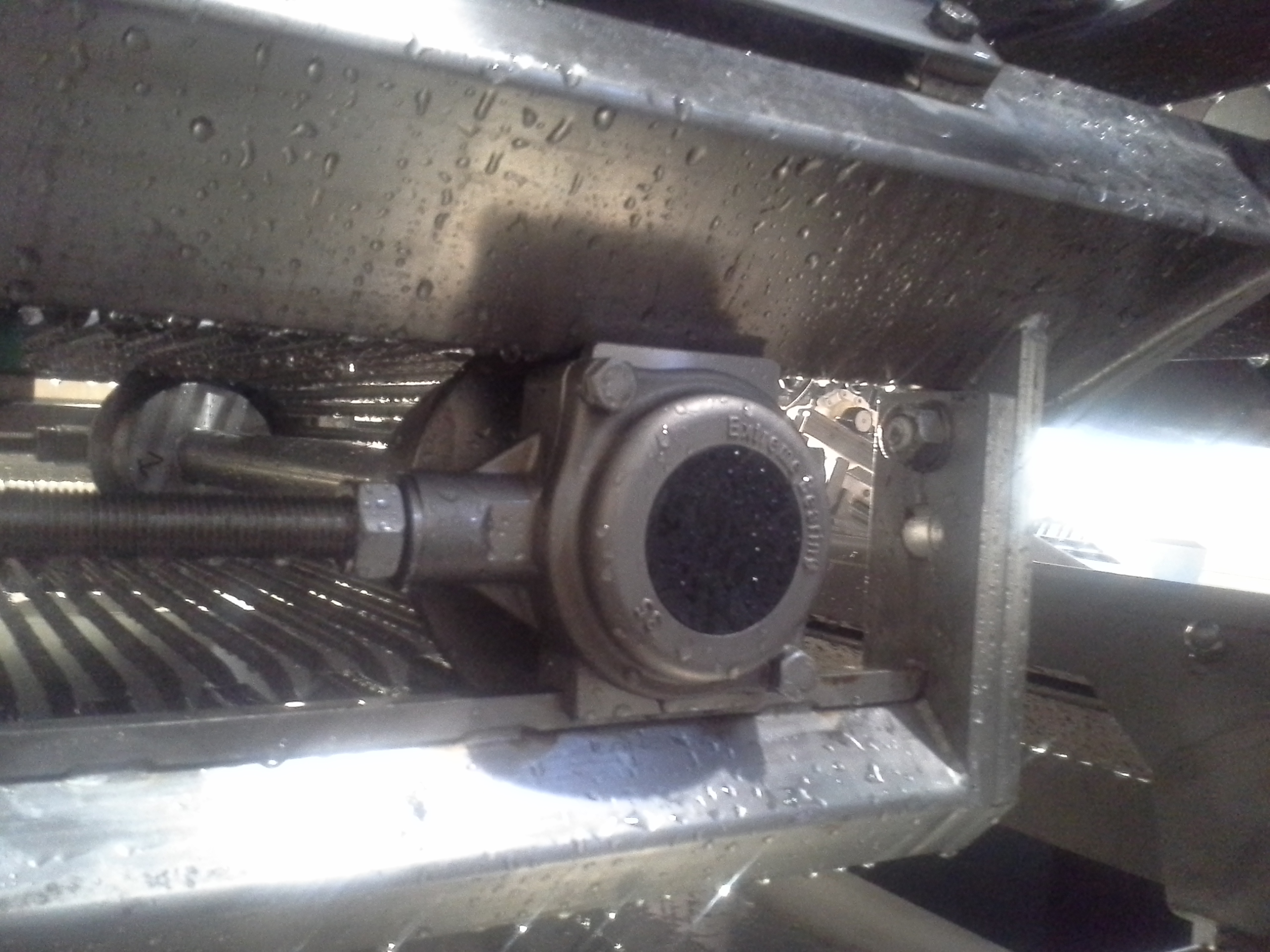

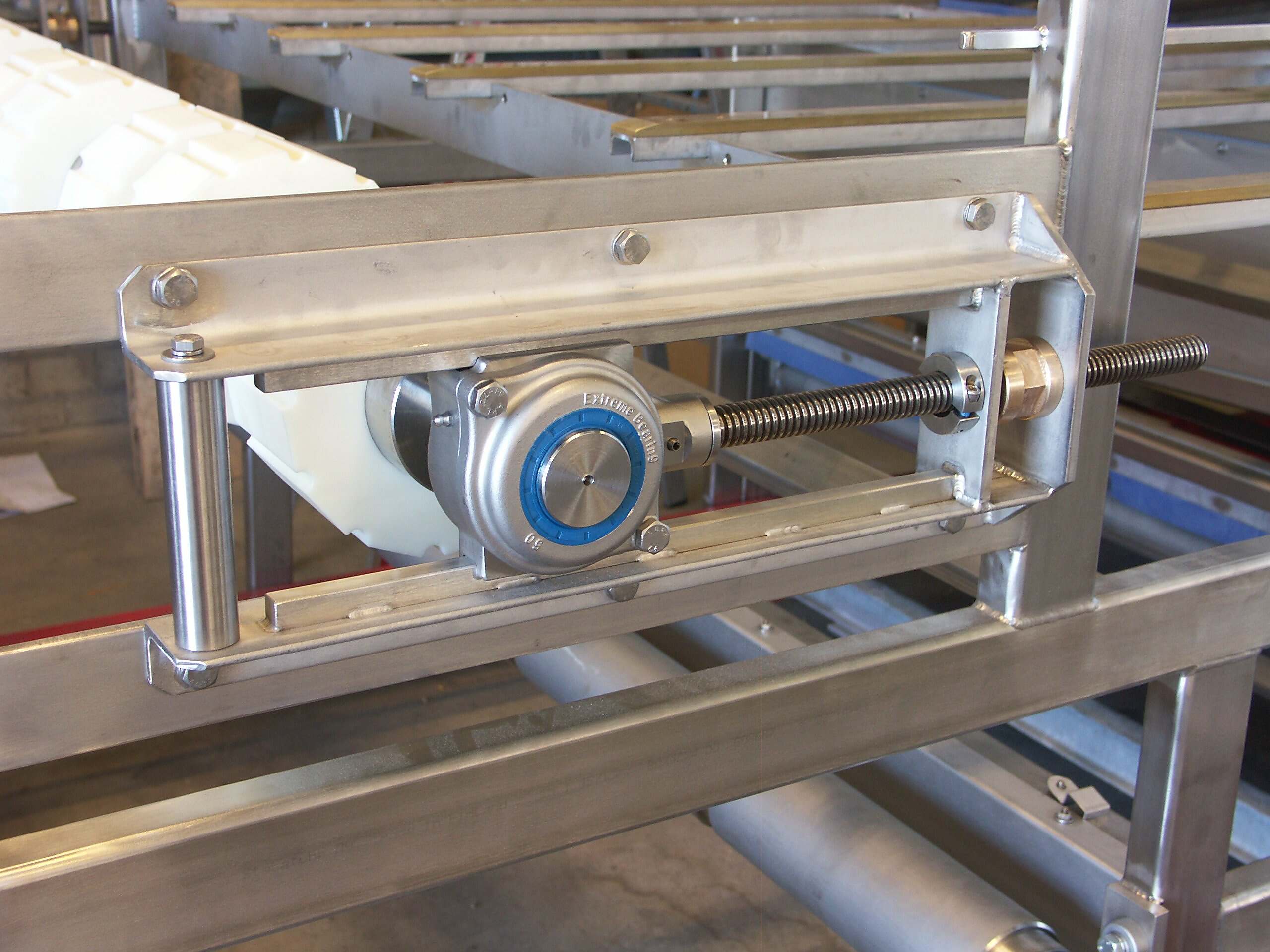

Take-up bearing units are used as conveyor belt drum bearings where shaft adjustment for conveyor belt tensioning is required. A tensioner extends or retracts the conveyor pulley to adjust the tension on the conveyor belt.
View the EXT take-up bearing unit in 3D
Explore the stainless steel 316 EXT take-up bearing unit in an interactive 3D environment. You can rotate, zoom, and measure the model directly to gain a clear understanding of the housing dimensions and design features.
Discover our exceptional sealing options
Configurable sealing solutions protect the bearing against water, dust, dirt, and other contaminants — for washdown, submerged, and abrasive applications.

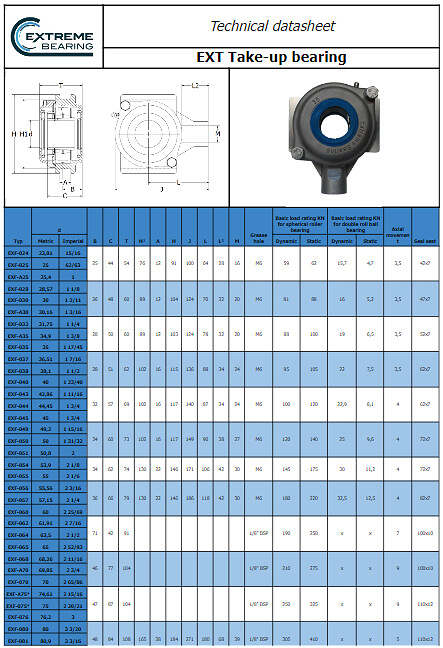

Technical Datasheet
EXT – Stainless Steel 316 Take-Up Bearing Unit
Technical Specifications
| Specification | Description |
|---|---|
| Product | Stainless Steel 316 Take-Up Bearing Unit |
| Type | EXT |
| Mounting style | Screw take-up slide — shaft adjustment for conveyor belt tensioning |
| Shaft sizes | 30 mm – 100 mm, including standard inch sizes |
| Load capacity | 5× higher load capacity through self-aligning double row bearings |
| Sealing | Labyrinth seals — ideal for washdown in wet or harsh environments |
| Housing material | Stainless Steel 316 (AISI 316 / UNS S31600) |
| Construction | Heavy duty |
| Application | Industrial machinery |
| Configuration | Extreme Bearing Product Chooser |
| Target market | OEMs, Machine Builders & System Integrators |
EXT Take-Up Bearing Unit Dimensions and Mounting Specifications
Load Directions for the EXT Take-Up Bearing Unit
Take-up stainless steel bearing units are intended for loads acting vertically towards the base plate support. Therefore, if the bearing housing is supported over its entire base, loads are limited only by the load limits of the bearing insert. If loads acting in other directions occur or if the housing is not supported over its entire base area, check that the magnitude of the load is permissible for the bolt assembly attached to the machine frame.

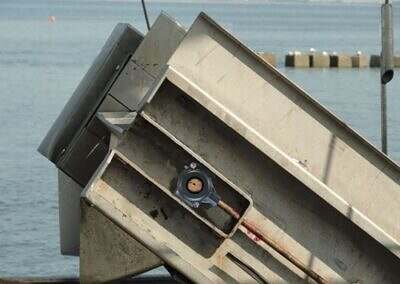

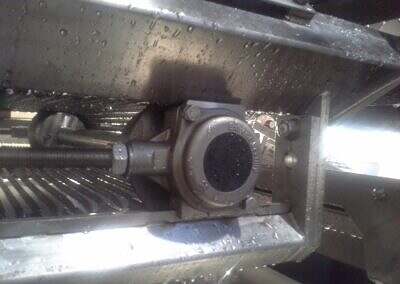

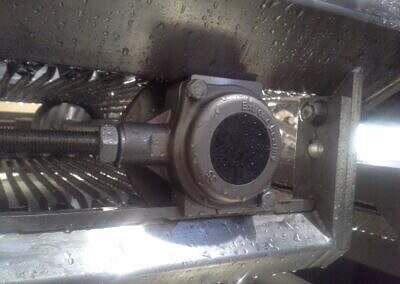

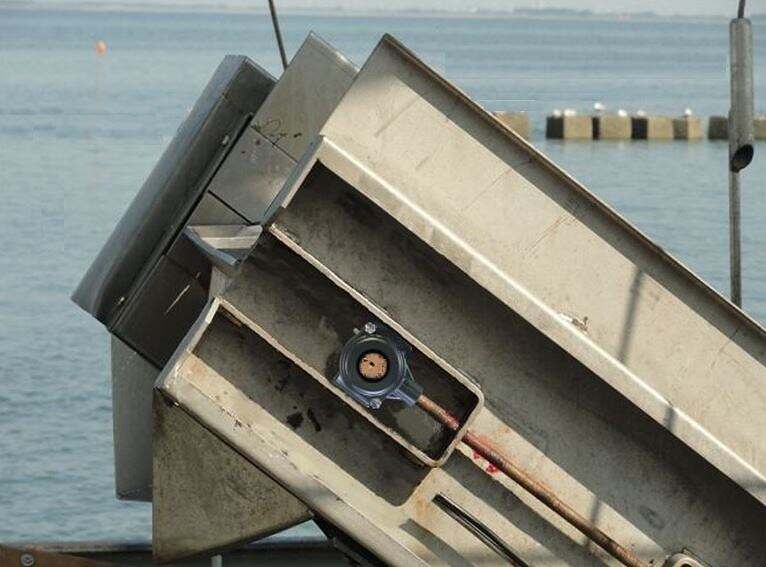

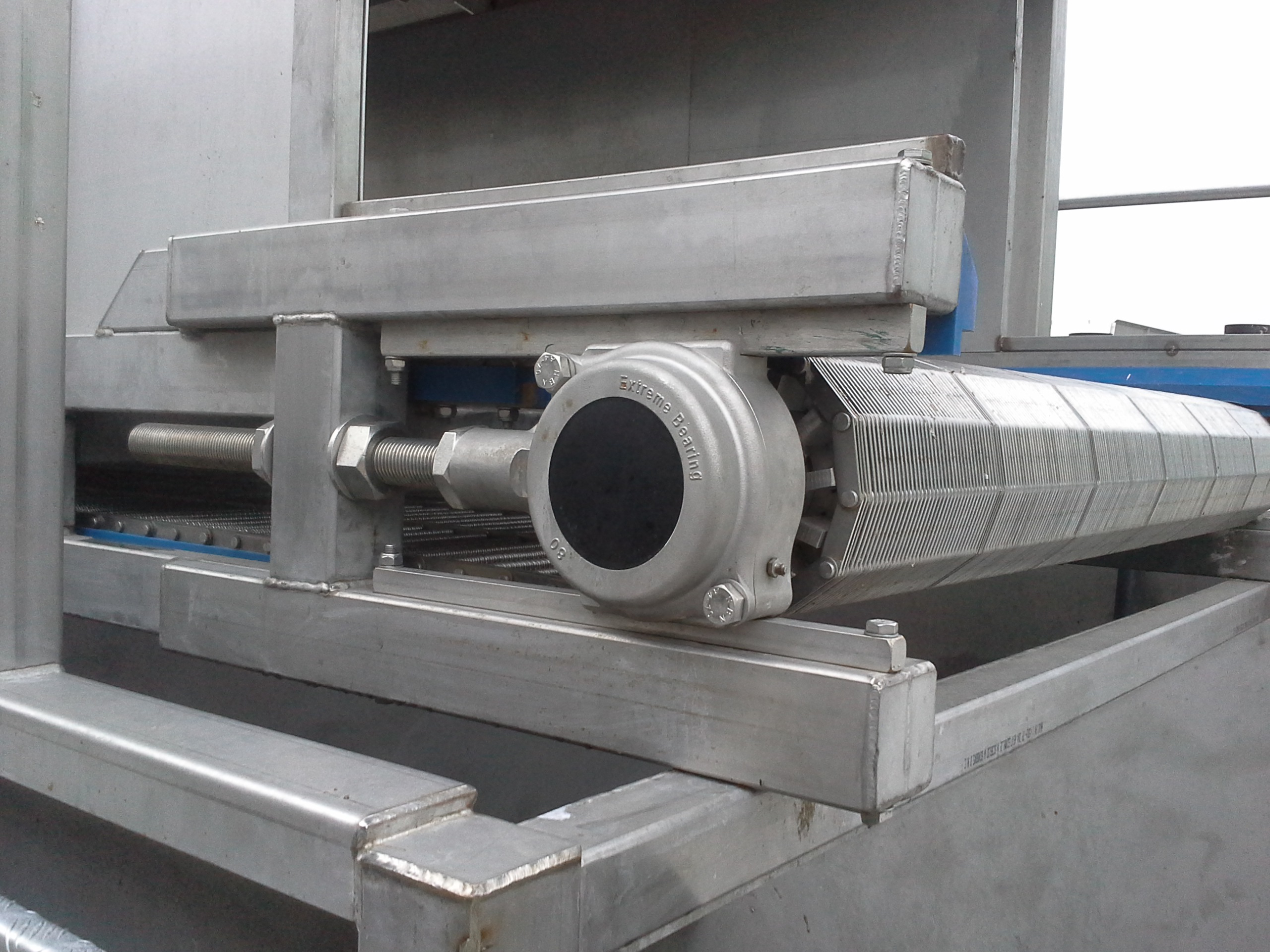

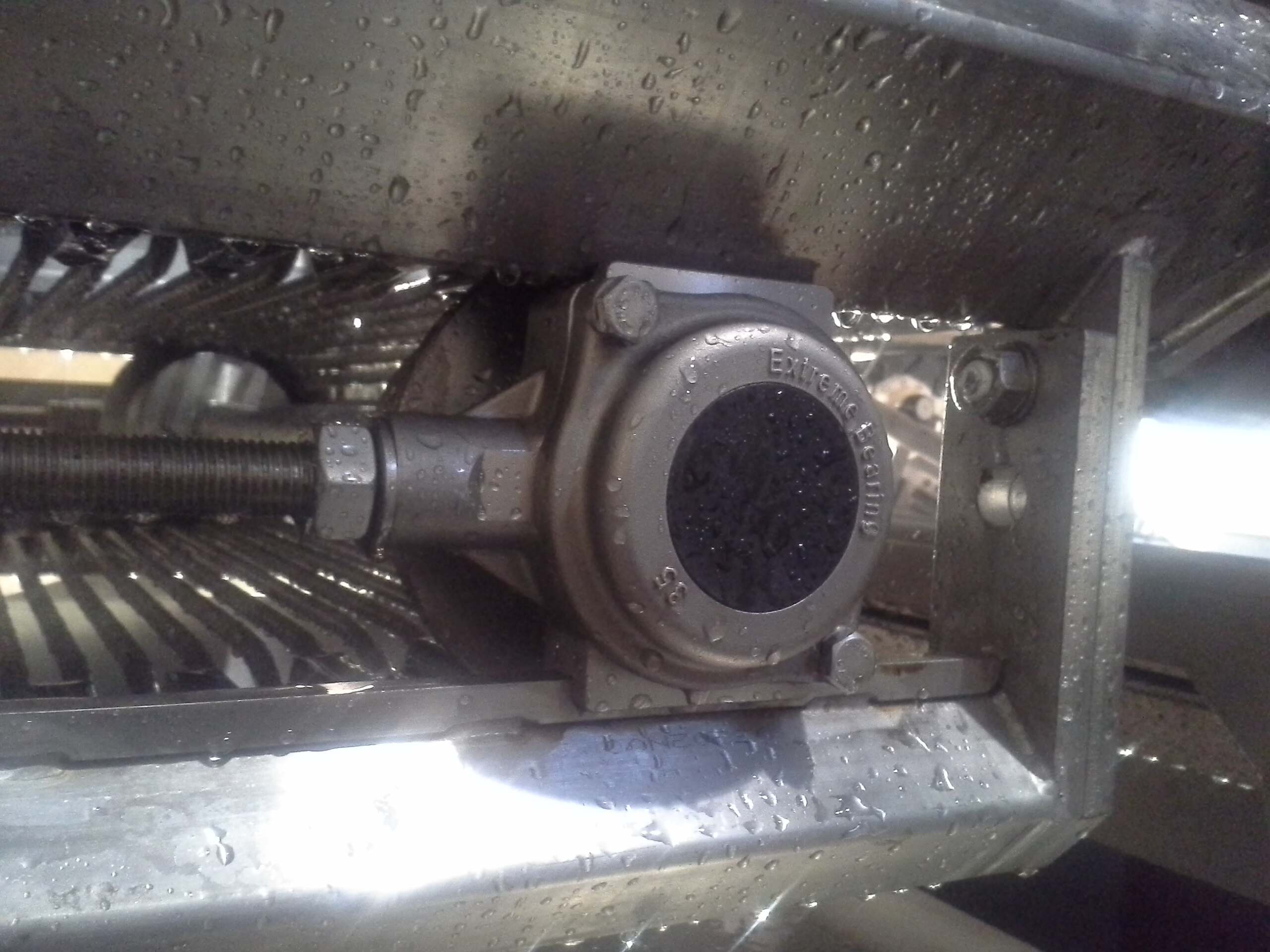

Bearing the unbearable — a look into the world of Extreme Bearing Type EXT applications.
Ready to build your bearing assembly?
Configure your stainless steel 316 EXT take-up bearing unit in the Product Chooser and download the Technical Datasheet (PDF) and 3D STEP model instantly.
