SS-316 Round Flanged Bearing Units

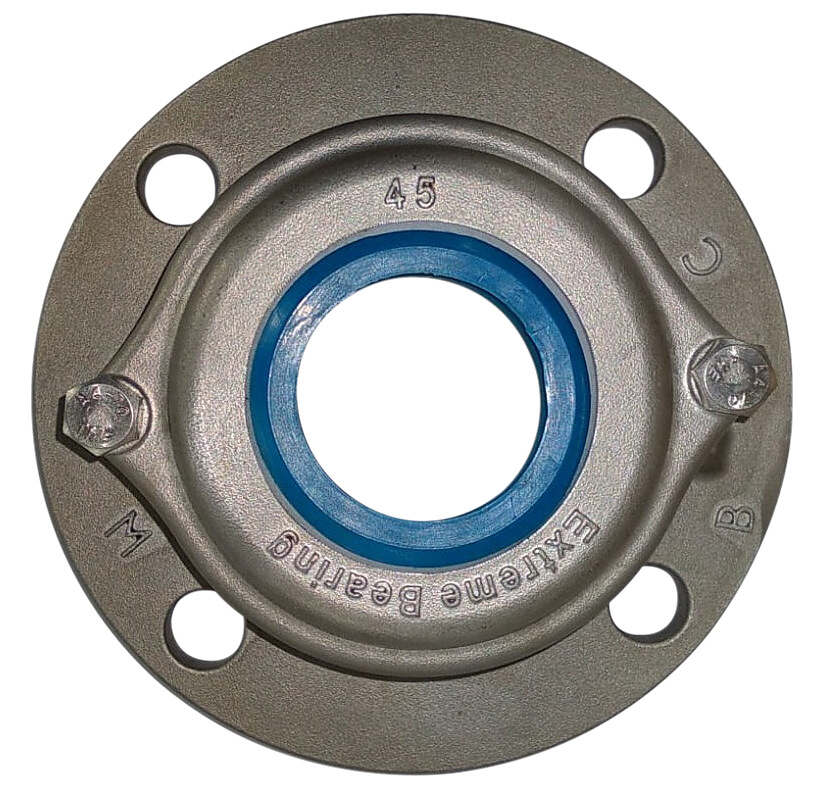

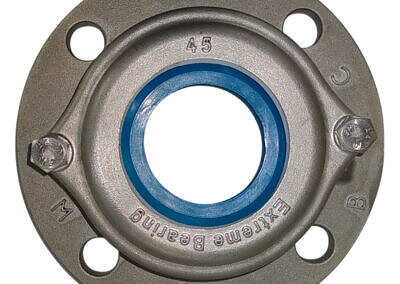

316 stainless steel round flanged units type EXP
Corrosion protection is not needed because EXP round flanged housings are made of 316 stainless steel, which is rustproof and resistant to corrosion from sea water and almost all chemicals. Another great advantage of stainless steel housings is that they have a much greater tensile strength and are not fragile like cast iron flange bearing units.
The dimensions of EXP round flanged housings are not standardized either nationally or internationally. EXP round flanged housings are dimensionally interchangeable with the UCFC flanged housings from SKF.
View the EXP round flange housing in 3D
Explore the stainless steel 316 EXP round flange housing in an interactive 3D environment. You can rotate, zoom, and measure the model directly to gain a clear understanding of the housing dimensions and design features.
Discover our exceptional sealing options
Configurable sealing solutions protect the bearing against water, dust, dirt, and other contaminants — for washdown, submerged, and abrasive applications.

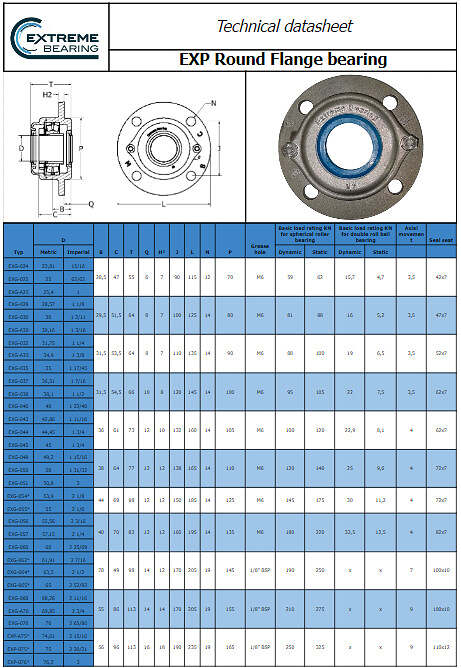

Technical Datasheet
EXP – Stainless Steel 316 Round Flange Housing
Technical Specifications
| Specification | Description |
|---|---|
| Product | Stainless Steel 316 Round Flange Housing |
| Type | EXP |
| Mounting style | 4-bolt round flange |
| Shaft sizes | 30 mm – 45 mm, including standard inch sizes |
| Interchangeability | Dimensionally interchangeable with SKF UCFC flanged housings |
| Housing material | Stainless Steel 316 (AISI 316 / UNS S31600) |
| Construction | Heavy duty |
| Application | Industrial machinery |
| Configuration | Extreme Bearing Product Chooser |
| Target market | OEMs, Machine Builders & System Integrators |
EXP Round Flange Housing Dimensions and Mounting Specifications
Load Directions for the EXP Round Flange Housing
Extreme Bearing units are intended for loads acting vertically towards the base plate support. Therefore, if the bearing housing is supported over its entire base, loads are limited only by the capacity of the bearing insert. If loads acting in other directions occur or if the housing is not supported over its entire base area, check that the magnitude of the load is permissible for the bolt assembly attached to the machine frame.

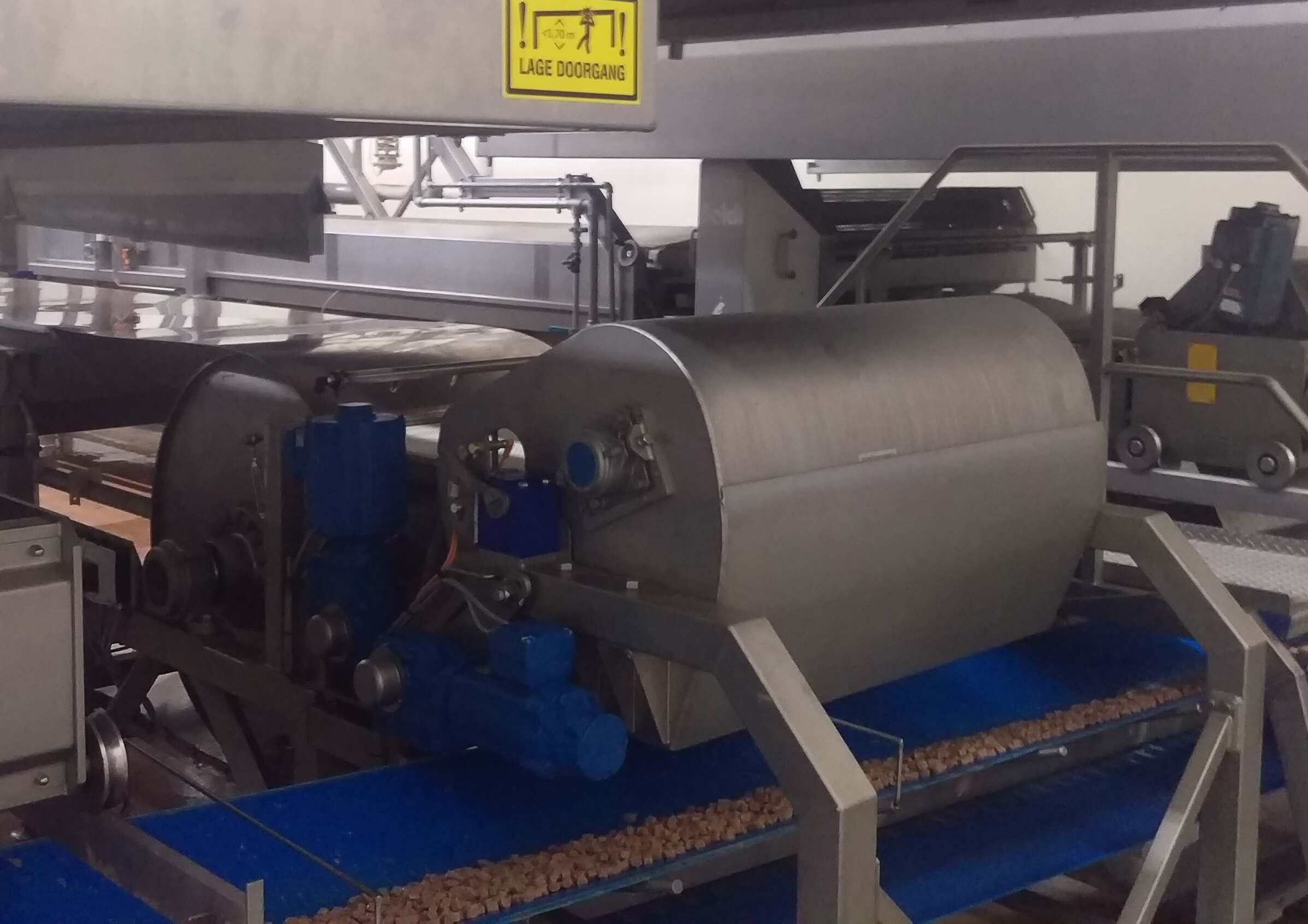

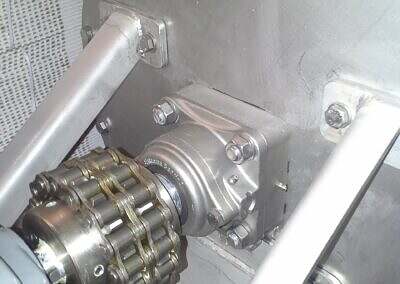

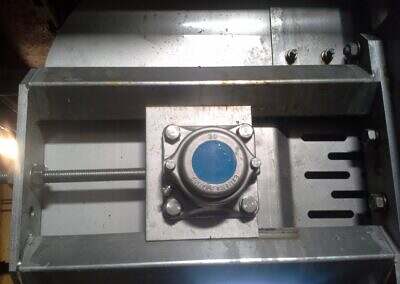

Bearing the unbearable — a look into the world of Extreme Bearing Type EXP applications.
Ready to build your bearing assembly?
Configure your stainless steel 316 EXP round flange housing in the Product Chooser and download the Technical Datasheet (PDF) and 3D STEP model instantly.
