SS-316 3-Bolt Bracket Flange Bearing Units

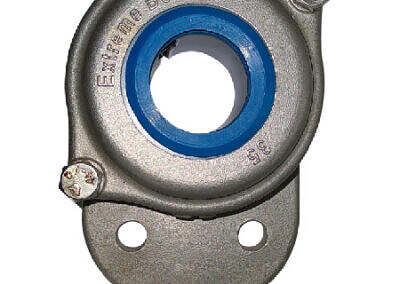

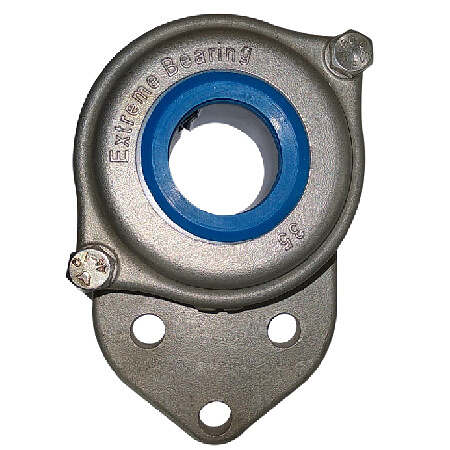

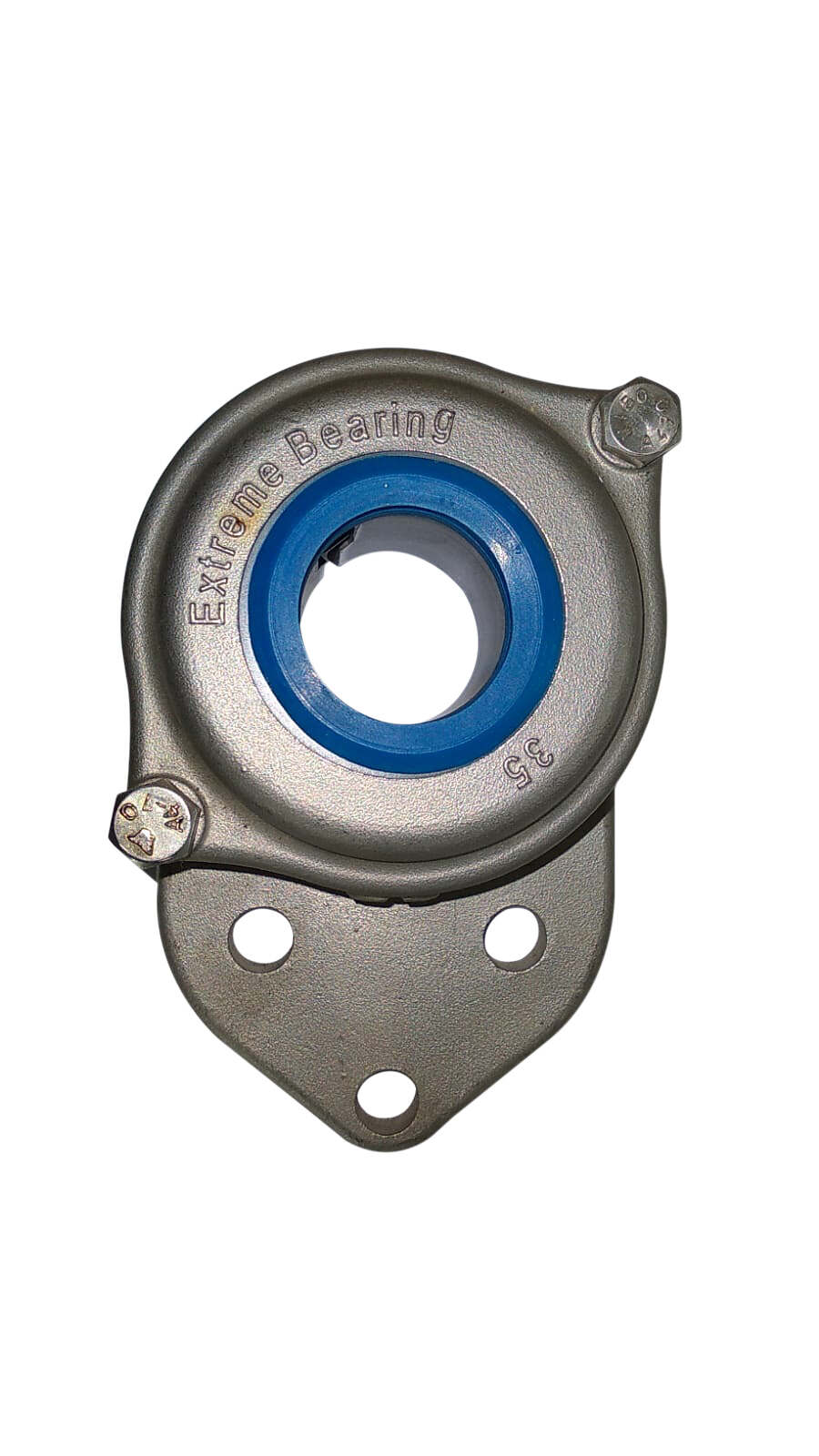

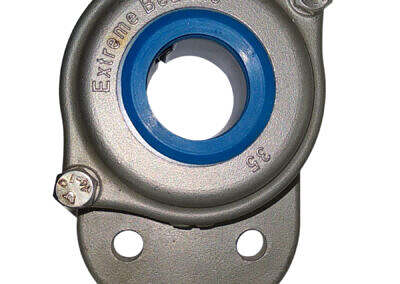

316 stainless steel 3-bolt bracket flange bearing
This EXL 3-bolt chevron-shaped flange bearing is suitable for special configurations on conveyors. The housing is made of stainless steel (grade 316) which is rustproof and resistant to corrosion from seawater. It is also resistant to all cleaning products and chemicals. The rounded corners and smooth surfaces make these units very easy to clean.
View the EXL 3-bolt bracket flange housing in 3D
Explore the stainless steel 316 EXL 3-bolt bracket flange housing in an interactive 3D environment. You can rotate, zoom, and measure the model directly to gain a clear understanding of the housing dimensions and design features.
Discover our exceptional sealing options
Configurable sealing solutions protect the bearing against water, dust, dirt, and other contaminants — for washdown, submerged, and abrasive applications.

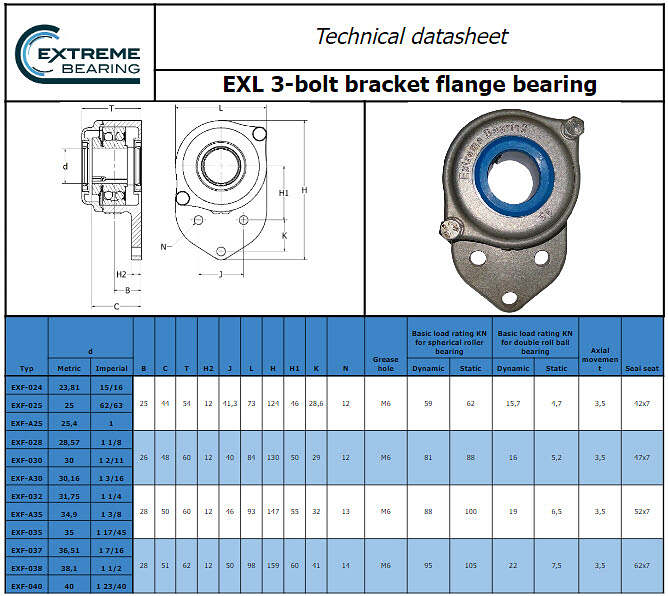

Technical Datasheet
EXL – Stainless Steel 316 3-Bolt Bracket Flange Housing
Technical Specifications
| Specification | Description |
|---|---|
| Product | Stainless Steel 316 3-Bolt Bracket Flange Housing |
| Type | EXL |
| Mounting style | 3-bolt chevron-shaped bracket flange |
| Shaft sizes | 25 mm – 50 mm, including standard inch sizes |
| Design | Suitable for special configurations on conveyors |
| Housing material | Stainless Steel 316 (AISI 316 / UNS S31600) |
| Construction | Heavy duty |
| Application | Industrial machinery |
| Configuration | Extreme Bearing Product Chooser |
| Target market | OEMs, Machine Builders & System Integrators |
EXL 3-Bolt Bracket Flange Housing Dimensions and Mounting Specifications
Load Directions for the EXL 3-Bolt Bracket Flange Housing
Extreme Bearing units are intended for loads acting vertically towards the base plate support. Therefore, if the bearing housing is supported over its entire base, loads are limited only by the load limits of the bearing insert. If loads acting in other directions occur or if the housing is not supported over its entire base area, check that the magnitude of the load is permissible for the bolt assembly attached to the machine frame.

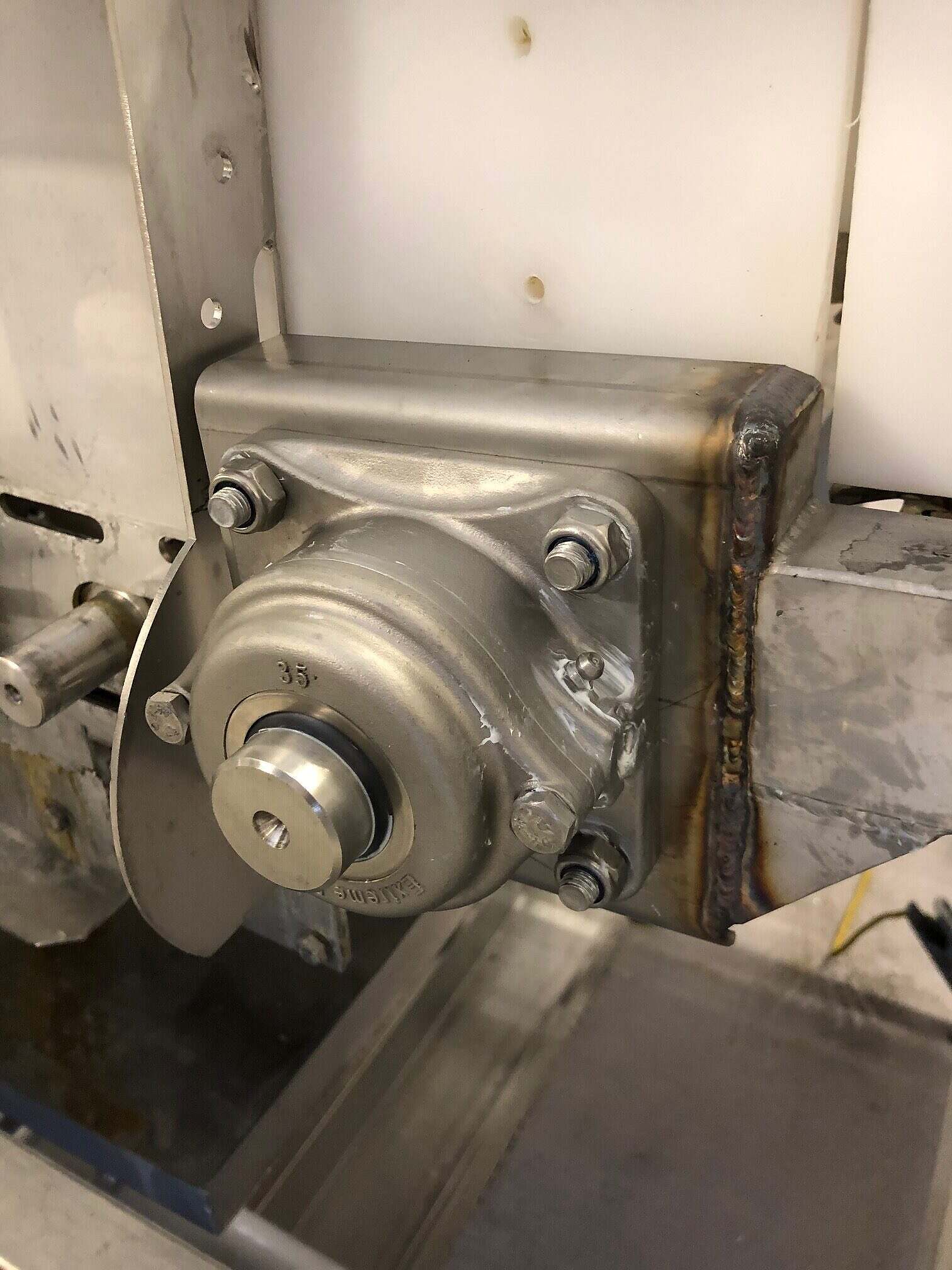

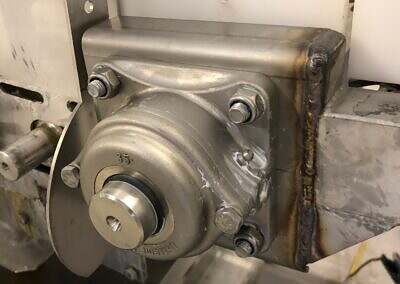

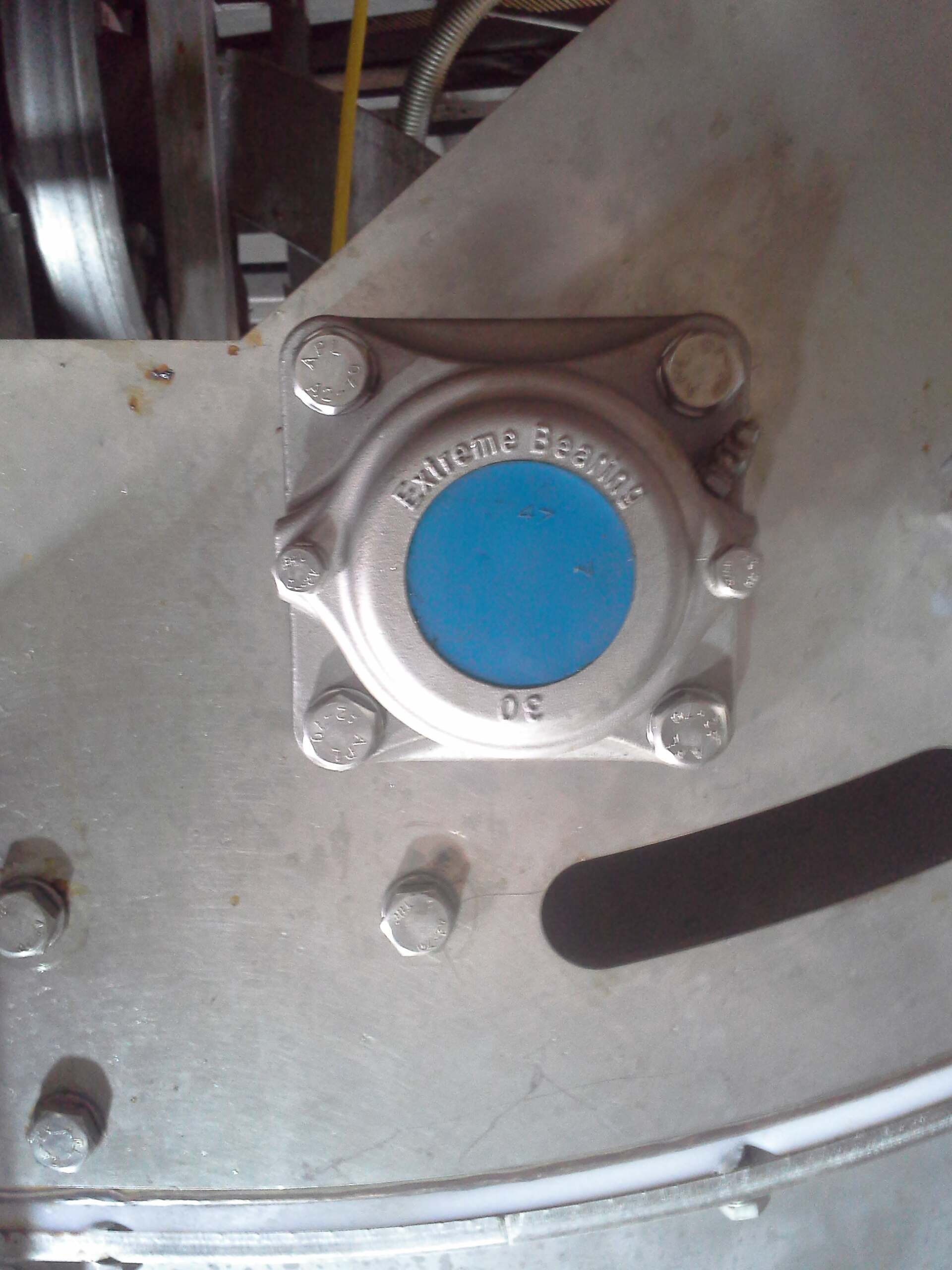

Bearing the unbearable — a look into the world of Extreme Bearing Type EXL applications.
Ready to build your bearing assembly?
Configure your stainless steel 316 EXL 3-bolt bracket flange housing in the Product Chooser and download the Technical Datasheet (PDF) and 3D STEP model instantly.
